CANmod.input Cable for easily connecting Sensors

$83.00

Leave a review

SKU: GC-CSS-DB25-INPUT-CABLE

MPN: #150 DB25-to-Input Adapter

Manufacturer: CSS Electronics ApS

Stock Status: In stock

Delivery: Ships same or next business day
Shipping is Free on orders over $100

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

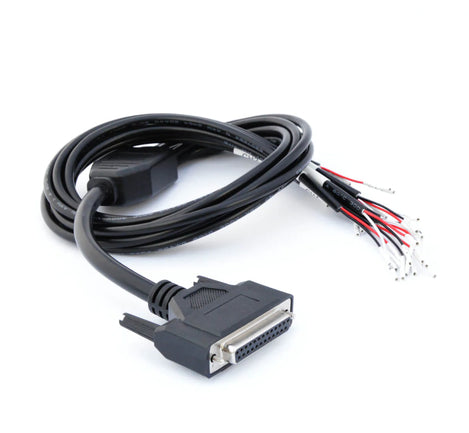

The DB25 input sensor adapter cable connects up to 8 analog/digital/pulse sensors to the CANmod.input module with minimal effort. This cable simplifies the wiring harness.

The adapter cable provides label-stickers on each of the 8 channel cablesand each of the three open wires of each cable; labels denote the positive excitation signal, the ground reference and the signal.

Suited for temporary test installations, it can also be modified for more permanent field tests.



Pinout Information:




Channel

Function

DB25 (Female)

1 +
-
Sig
24
12
25
2 +
-
Sig
10
23
11
3 +
-
Sig
21
9
22
4 +
-
Sig
7
20
8
5 +
-
Sig
18
6
19
6 +
-
Sig
4
17
5
7 +
-
Sig
15
3
16
8 +
-
Sig
1
14
2

Features


  • PLUG & PLAY: Easily connect 8 analog / digital / pulse sensors to the CANmod.input
  • INSULATED: Crimped pin headers ensure insulation & easy connection of wires
  • SIMPLE WIRING: Avoid complex wiring harnesses for passive/low-power sensors
  • LABELED: Each channel cable and each open wire is labeled with separate stickers
  • SOLID QUALITY: Rugged and robust 70 cm quality cable with overmolded connector
  • ROHS & TESTED: Cables are RoHS compliant and tested in Denmark

Specifications

Cable Length

70 cm (27.56 in)

Connector(s)

25-pin D-sub (DB25) female to 8 channel cables, each with 3 open wires (ground, excitation, signal)

Pins

100 mil (2.54 mm), suitable for quick connection to e.g. PCBs

Temperature Range

-20°C to +80°C (-4°F to +176°F)

Weight

100 Grams (.22 Lbs)
