CANnector L & LE - Configurable automotive platform (8xCAN, EtherCAT option): No EtherCAT

$2,419.00

Leave a review

SKU: GC-IXT-CANNECTOR-L

MPN: 1.01.0091.00010

Manufacturer: Ixxat

Delivery: Ships within 4-5 weeks
Qualifies for Free shipping to the continental US

Ethercat Option

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

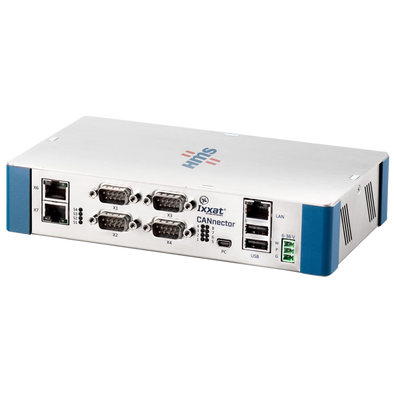

The Ixxat CANnector L & LE are powerful, configurable automotive platforms for e-mobility, automotive engineering and testing applications.  Both feature 2 LIN and 8 CAN channels, where 4 channels are CAN FD capable. Both support Industrial Ethernet and the LE version additionally includes EtherCAT support.

Other additional interfaces include:

  • 1-Ethernet (10/100 Base-T)
  • 2-Digital in/out (A/E)
  • 1-USB 2.0 device
  • 2-USB 2.0 hosts.

The L and LE versions facilitates high-speed data transfer and network integration for complex applications, especially suited for e-mobility and varied industrial projects.

These devices are easily configurable, via drag and drop, with the Windows-based Ixxat Advanced Configuration Tool (ACT). Most use cases can be solved by using ACT Freeware.

The CANnector easily integrates multiple bus systems into a single, DIN rail mountable device.  Industrial Ethernet is supported to facilitate high-speed data-transfer and network integration. This integration and compatibility is essential for e-mobility and complex industrial applications.

Optimized for automotive testing, logging and gateway operations, the CANnector streamlines data management and protocol handling.

All applications run on the device, a PC is only needed for configuration or stimulation/visualization of data, as the actual intelligence is outsourced to the embedded platform.

Galvanic isolation up to 2 kV safeguards against overvoltage and protects from potential electrical damage.




Order Summary

 SKU EtherCAT Manufacturer Part # (MPN)
GC-IXT-CANNECTOR-L No 1.01.0091.00010
GC-IXT-CANNECTOR-L-ECAT Yes 1.01.0091.00110

Features

  • Go-to solution for demanding network requirements
  • Compatibility with advanced standards
  • Extensive CAN connectivity
  • Multi-connectivity with various interfaces
  • Improved data management for efficient engineering
  • Embedded platform with own processing power
  • Overvoltage protection
  • Quick and easy configuration through ACT support

Documents and Drivers

Documentation

CANnector Family Datasheet

CANnector Installation Guide

Ixxat e-mobility Brochure

Specifications

Content of Package

  • CANnector device
  • User Manual
  • Adhesive device feet
  • Power supply connector
  • USB cable (2m, Type A to Mini Type B)
  • Ethernet cable (2 m)
  • Advanced Configuration Tool (ACT) - free download


Dimensions (W x H x D)

113 x 196 x 43 mm  (4.5 x 7.7 x 1.7 in)

Weight

1150 g  (2.5 lbs)

Mounting

DIN rail mount (bracket included)

Current Consumption Type Value at Vcc Nom (mA)

420 mA (12 V DC)

Input Voltage (V)

6 V to 36 V DC

Power Connector

3-pole

Isolation

There are 4 interface islands (X1, X2, X3, X4), each galvanically isolated from the others with up to 2 kV DC. Within each island, interfaces for CAN FD, CAN high-speed, digital I/O, and LIN are interconnected. The shielding of the cable and/or the metal collar of a D-Sub connector is directly connected to the housing.

Isolation Voltage (kV)

2 kV DC for 1 sec. kV

Temperature & Humidity

  • Operating:  -40°C ~ 80°C (-40°F ~ 176°F)v
  • Storage:  -40°C ~ 85°C (-40°F ~ 185°F)
  • Relative Humidity: 10 to 95 %, non-condensing

Enclosure

IP40, Aluminum, Steel

Configuration

A Linux platform able to work standalone without any connected PC. For the standalone function a configuration is needed  that can be created and downloaded to the device via the PC based Ixxat Automotive Configuration Tool (ACT) and an USB connection.

Certifications & Standards

  • CE
  • WEEE Category:  IT and telecommunications equipment
  • ETIM Classification:  EC001604
  • Protection Class IP:  IP40

Connectors / Input / Output

  • 4 x D-Sub 9 connectors
  •  2 x USB type A ports
  • 1 x Mini USB port
  • 3 x RJ45 connectors (1 x Ethernet, 2 x fieldbus)
  • 1 x WPG connector (power)

Transceivers

  • CAN:  TI SN65HVD251
  • CAN FD:  MCP2562FD
  • LIN:  MCP2003B-E/MC
