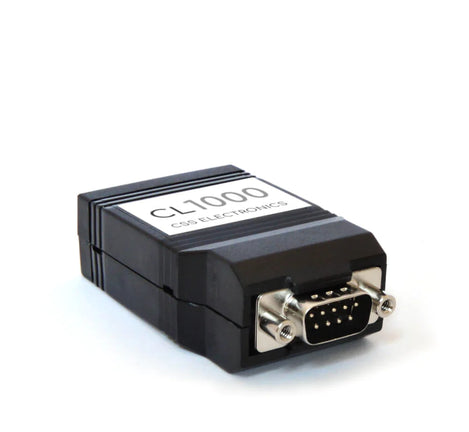

CL1000 Standalone CAN Data Logger
CL1000 Standalone CAN Data Logger
Product Images
CL1000 Standalone CAN Data Logger: 8GB SD Card
$208.95
SKU: GC-CSS-CL1000-8GB
MPN: #15 CL1000 8GB
Manufacturer: CSS Electronics ApS
Stock Status: In stock
SD Card Size
-
$208.95
-
$279.95
We Have You Covered
Product Information
Product Description
The plug & play CL1000 is an easy-to-use, low cost CAN bus data logger (and CAN interface) with an 8-32 GB SD card. The logger is 100% standalone (no PC required) and data is easily extracted via USB. Connect the CL1000 to your application and the device automatically starts recording data to the SD card in a simple *.CSV format. This data can then be extracted via USB for post processing.
The CL1000 is ideal for vehicle development and field testing and many other CAN applications such as machinery, robotics and EV batteries.
This device can also double as a powerful reverse engineering tool with live-streaming via USB in SavvyCAN or Wireshark.
Order Summary
SKU |
SD Card Size |
Manufacturer Part # (MPN) |
---|---|---|
GC-CSS-CL1000-8GB | 8GB SD Card | #15 CL1000 8GB |
GC-CSS-CL1000-32GB | 32GB SD Card | #18 CL1000-32GB |
Features
- PLUG & PLAY: Configure in 2 min. Power via CAN connector. Auto-detect bit-rate
- STANDALONE: Log CAN data to 8-32GB SD card for months - no pc needed
- RTC TIMESTAMP: Date & timestamp your data - vital for post analysis (incl. battery backup)
- LIVE STREAM: Easily stream raw & DBC decoded CAN data in SavvyCAN / Wireshark
- COMPACT: Fits the palm of your hand (6.6 x 4.3 x 2.4 CM) & weighs <50g
Specifications
Bit Rate
Bit rates up to 1 Mbps (manually configured or automatically detected)
Certifications
CE, FCC, IC, RoHS certified
Connectors
- Standard D-sub 9 (DB9) connector
- Standard mini USB (B) connector for extracting data & streaming (cable not included)
Dimensions
66.7 x 42.7 x 23.5 mm (2.63 x 1.68 x .93 in)
Enclosure
Robust, small enclosure
LED Indicators
Logger status via three externally visible LEDs
Power Consumption
The logger's power consumption is approximately 1 W
Power Supply
- Power via CAN connector: Power can be supplied from the DB9 CAN connector (log/stream) or via USB (data extraction)
- Via CAN connector (DB9): Power supplied by the CAN bus (+7.0V to +32V DC) using pin 9 (supply) and 3 (ground)
Protection
- Reverse voltage protection on CAN-bus supply
- Transient voltage pulse protection on CAN-bus supply
Protocols
Protocol independent (i.e. able to log CAN, J1939, CANopen, OBD2, ...)
Standards
Compliant with physical layer standard ISO 11898-2
Temperature Range
-20°C to +65°C (-4°F to +149°F)
Weight
45 grams
