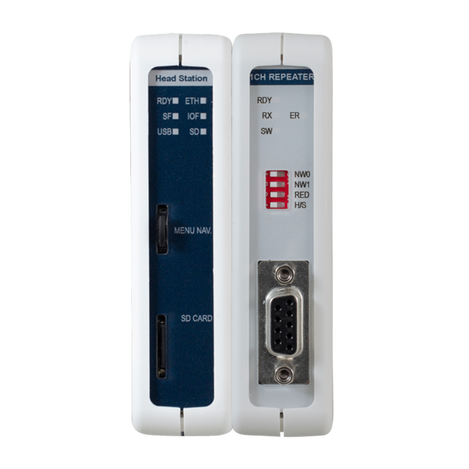

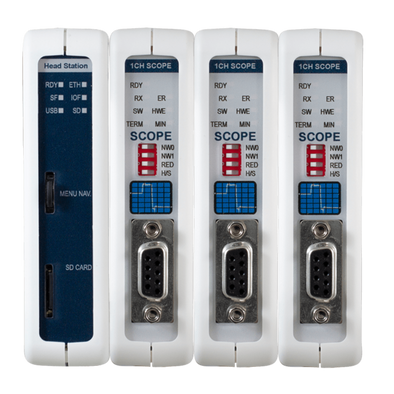

ComBricks PROFIBUS Eco Monitoring Kit

$2,950.00

Leave a review

SKU: GC-PB-CB-ECO-KIT

MPN: 101-200QBR

Manufacturer: Procentec

Stock Status: In Stock

Delivery: Ships within
10 to 13 business days
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The ComBricks PROFIBUS Eco Monitoring kit is ideal for use behind existing 3rd party DP/PA couplers to provide 24/7 monitoring of your PROFIBUS DP network. With the ProfiTrace OE built into the ComBricks Head Station, this is an extremely powerful pro-active tool for remote monitoring over Ethernet.

The kit does not require any changes to your PLC Master program, and it does not have a PROFIBUS address. It just “sniffs” the activity on your network and lets you monitor it remotely over the network.

This basic monitoring kit has PROFIBUS live list, statistics and email/SNMP event notification.

Use 1 relay on the Head Station to turn on a light tower, or a back-up system, etc. in response to network events such as station lost, syncs, etc. If more relays are needed, just snap in a 4 channel relay module!

The Eco Kit can be installed mid-span on any segment in your network that has room for an additional bus load (in PROFIBUS DP each segment can have 32 bus loads). The kit can also be installed at the end of a segment and act as an Active Terminator! Active terminators are advised at the end of segments so the PROFIBUS DP Connector of the last device can be removed without losing termination.

Note: PROFIBUS Terminators require power that comes from the device; so when the cable is removed from the last device to do service or maintenance, the termination is lost.

Snap in additional DP modules and monitor up to 4 networks from a single ComBricks system. There are simple dip switches on each module to assign it one of the four networks. The four networks can all be running at different speeds, for example 500 Kbps and 1.5 Mbps, and can even be running different protocols (MPI or PROFIBUS DP)!

The Eco Monitoring Kit for ComBricks includes:


Learn more about the ComBricks product family.

Features

ComBricks Eco Monitoring Kit Features


  • Drives 32 modules (10 high-speed modules)
  • Hot swap and extendable
  • Powerful web server
  • ProfiTace OE for montoring 4 networks
  • DIN Rail mounting
  • IP 20

Documents and Drivers

Documentation

ComBricks User Manual View (PDF)
Head Station Technical Data View (PDF)
1 Channel Repeater Technical Data View (PDF)

Specifications

BACKPLANE

4 Networks selectable with switches

BAUD RATE

Auto Detects (9.6kbps - 12 Mbps)

CHANNELS

  • 31 devices per channel
  • 1 DP Network per channel

CONNECTORS

  • Removal screw terminals
  • 1 DB9
  • uSD card holder for 32GB (SD and SDHC)
  • USB for firmware updates

CURRENT

  • 200 mA consumption
  • Backplane Current - 2.5 A

INCLUDED IN BOX

  • 1 Channel Repeater
  • Head Station 1B
  • Fixed backplane HS + 1 Sub

INDICATORS LED

Error, Tx data, Transmission ON

INTERNAL WEB SERVER

Web Server with ProfiTrace OE

  • Status of all modules
  • Live List
  • Statistics
  • Message recording
  • Email and log on PROFIBUS events
  • System log

MOUNTING

DIN Mount

MPN

101-200QBR

PRODUCT POWER SUPPLY

Redundant

PROFIBUS NETWORKS

4 (set by dip-switches or webserver)

PROTOCOLS

  • Transparent for all PROFIBUS protocols
  • 2 bits delay time
  • No address required
  • HTTP, FTP, SMTP, TELNET, SNMP, CommDTM

SWITCH

Termination

TRANSMISSION SPEED

  • 9.6 kbps up to 12 Mbps (auto detect)
  • Ethernet: 10/100 Mbps link speed

TYPE

Stranded or solid-core wire

VOLTAGE

Operating Voltage - 11..26 VDC
