Deutsch-to-DB9 Adapter Cable (J1939 Type 2, CAT)
Deutsch-to-DB9 Adapter Cable (J1939 Type 2, CAT)
Product Images

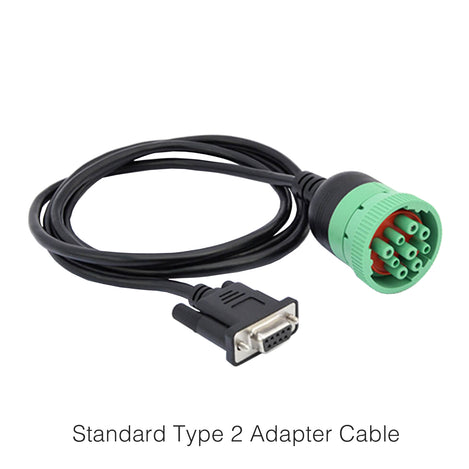

Deutsch-to-DB9 Adapter Cable (J1939 Type 2, CAT): Standard Type 2 Adapter Cable
$60.00
SKU: GC-CSS-DB9-DEUTSCH-CABLE
MPN: #40 J1939 Adapter - Standard Type 2 version
Manufacturer: CSS Electronics
Stock Status: In stock
Cable
-
$60.00
-
$60.00
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The DB9-J1939 adapter cable is suited for use in most heavy duty vehicles - incl. trucks, transit buses, excavators, construction machinery and more. The cable lets you connect your CANedge/CLX000 CAN logger directly to the CAN bus. The DB9-CAT variant is used in many Caterpillar vehicles.
Simply locate the 9-pin deutsch connector in your vehicle, typically found in the cabin (sometimes behind a panel).
We offer two variants: A standard J1939 Type 2 adapter cable, used in most heavy duty vehicles - and a CAT adapter cable, used in many Caterpillar vehicles & engines.
Order Summary
SKU |
Cable Type |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-CSS-DB9-DEUTSCH-CABLE | Standard Type 2 Adapter Cable | #40 J1939 Adapter - Standard Type 2 version |

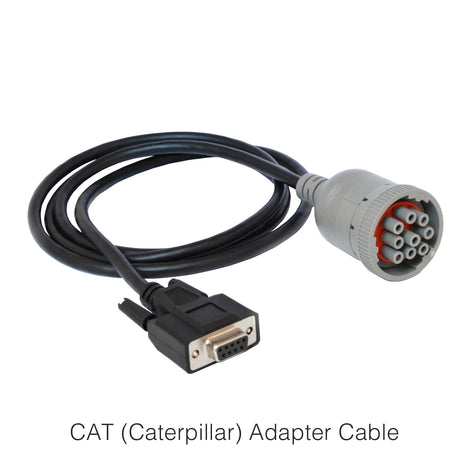

| GC-CSS-DB9-CAT-CABLE | CAT Adapter Cable | #40 J1939 Adapter CAT |
Features
- HEAVY DUTY: Fits most trucks, buses & other heavy duty vehicles
- STANDARD DB9: Fits our CAN loggers & all adapters (CiA 303-1 DB9 pinouts)
- OVERMOLDED: Quality overmold ensures top flexibility & durability
- SOLID CABLES: Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness
- TYPE II: Type II connector is compatible with both old/new vehicles
Specifications
Cable Length
150cm
Compatibility
High Speed CAN Bus (ISO 11898-2) incl. e.g. CAN FD, SAE J1939, NMEA 2000
Connector(s)
9-pin D-sub (DB9) female to J1939 9-pin deutsch (female)
Dimensions
Cable Thickness: 22 AWG (0.50 mm2)
MPN
#40 J1939 Adapter - Standard Type 2 version, #40 J1939 Adapter CAT
Pins
Adapter DB9 Pins: In accordance with CiA 303-1
Product Weight
220G
Temperature Range
-20°C to + 80°C (-4°F to +176°F)
