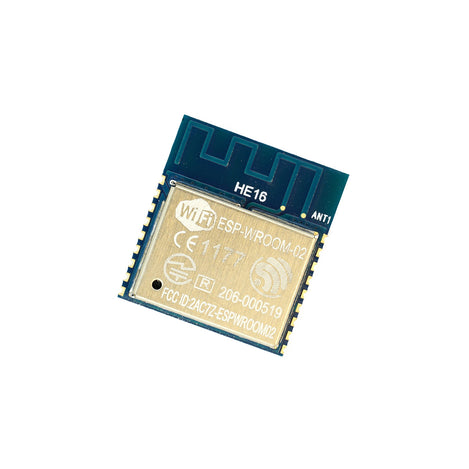

ESP-WROOM-02 - Wi-Fi 802.11 Module: 2MB Flash

$1.77

4.7 stars 4.7 (3) See customer reviews

SKU: GC-ESP-WROOM-02

MPN: ESP-WROOM-02

Manufacturer: Espressif Systems

Stock Status: In stock

Delivery: Ships same or next business day
Shipping is Free on orders over $75

Limited Quantities Available for 4MB option.

Flash Memory

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The ESP-WROOM-02 module is a highly integrated WiFi 802.11 b/g/n module that consumes extremely low power while providing a wireless internet connection for embedded devices. With a very small form factor (18mm by 20mm), this wireless module easily assimilates into resource limited devices. These features make it a great choice for OEMs to connect their IoT (Internet of Things) applications.

Embedded with the ESP8266EX chip, the ESP-WROOM-02 module is a 32-bit low power micro-controller (MCU) that integrates with TCP/IP network stacks; the included 10-bit ACD interfaces with HSPI, SDIO, UART, PWM, I2C and I2S. Programs and firmware can be stored in the integrated SPI flash with 2MB or 4MB capacity.

The embedded ESP8266EX chip gives the ESP-WROOM-02 module a wake up and transmit packet speed of less than 2ms which makes it a great solution for applications including IoT. Examples are:

  • Home automation and home security
  • Smart lights and plugs
  • Home appliances
  • Sensors and detectors
  • Security alarms
  • Monitor and scales
  • Mesh Networks
  • Industrial Wireless Control
  • Wearable Electronics
  • WiFi Location-aware Devices
  • WiFi Position System Beacons





Compare ESP-WROOM-02 Series

Order Summary

SKU

Flash Memory

Manufacturer Part # (MPN)
GC-ESP-WROOM-02 2MB ESP32-WROOM-02
GC-ESP-WROOM-02-4M
Limited Quantities Available 		4MB ESP32-WROOM-02 (4 MB)

Features

Features of the ESP-WROOM-02


  • Wi-Fi 802.11 b/g/n
  • Integrates with the ESP8266EX chip
  • Internal PCB antenna
  • 2 MB or 4 MB SPI flash memory
  • Tensilica L106 32-bit RISC processor
  • 26-MHz crystal oscillator
  • Secure (encrypted) over the air (OTA) upgrades
  • SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC) certified
  • Programmable RAM/ROM interface (iBus)
  • Programmable Data RAM interface (dBus)
  • AHB interface accesses the register

Documents and Drivers

Documentation

ESP-WROOM-02 Datasheet View (PDF)
ESP-WROOM-02 PCB Design and Module Placement Guide View (PDF)
ESP8266 Datasheet View (PDF)
ESP8266 Quick Start Guide View (PDF)

Downloads
ESP8266 AT Bin Download (ZIP)

Specifications

ANTENNAS

Internal On-Board PCB antenna

CERTIFICATIONS

RF: SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
Green: RoHS, REACH
Wi-Fi: Wi-Fi Alliance

DIMENSIONS

18 mm x 20 mm x 2.8 mm

FIRMWARE

Upgrade: UART Download / OTA (via network)
Download and write firmware via host

FREQUENCY BAND

Wi-Fi: 2.4 GHz ~ 2.5 GHz (2400M ~ 2483.5M)

INTERFACE(S)

UART/HSPI/I2C/I2S/IR Remote Control
GPIO/PWM

MEMORY

2 MB or 4 MB

MPN

ESP-WROOM-02

POWER

Average Current: 80 mA
Minimum Current: 500 mA

PROTOCOLS

Wi-Fi: 802.11 b/g/n
Network: IPv4, TCP/UDP/HTTP/FTP

RELATED PRODUCTS HEADING

Related chips and modules

SECURITY/PROTECTION

Security: WPA/WPA2
Encryption: WEP/TKIP/AES

TEMPERATURE RANGE

Operating: -40ºC to 85ºC (-40ºF to 185ºF)
Storage: -40ºC to 85ºC (-40ºF to 185ºF)

VOLTAGE

Operating: 2.7V ~ 3.6V
