FMM00A - Advanced OBD-II Telematics Tracker

$88.00

Leave a review

SKU: GC-TTEL-FMM00A

MPN: FMM00A1KAA01

Manufacturer: Teltonika Telematics

Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

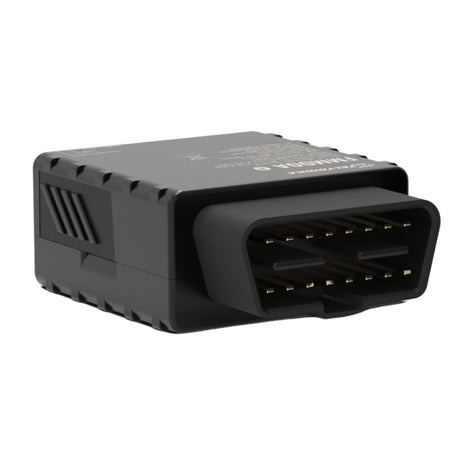

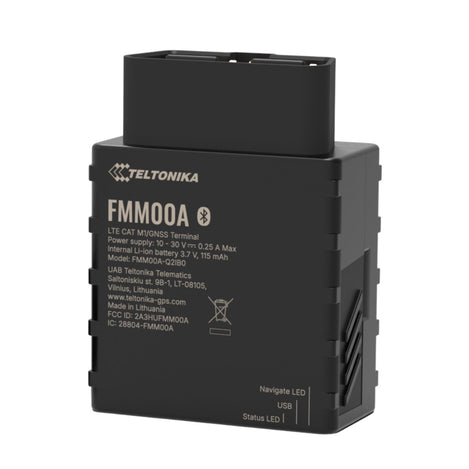

FMM00A Advanced OBD-II Telematics Tracker



The FMM00A is an OBD-II tracking terminal engineered for North American deployments, integrating 4G LTE Cat M1 connectivity, multi-constellation GNSS, and Bluetooth® in a compact, tool-free form factor. The device interfaces directly with the vehicle OBD-II port to retrieve standard SAE-defined PIDs and OEM-specific parameters. These interfaces enable real-time vehicle telemetry without additional wiring or hardware installation.

With an integrated Li-ion backup battery, on-board accelerometer, and 128 MB flash storage, the FMM00A is suited for fleet telematics, insurance telematics (UBI), car sharing, rental, leasing, and driver behavior monitoring applications.

Target Applications

  • Fleet Telematics — Light Commercial & Passenger Vehicles
  • Logistics & Delivery Services
  • Car Sharing, Rental & Leasing
  • Insurance Telematics (UBI)
  • Driver Behavior Monitoring & Scoring
  • EV Battery & Powertrain Monitoring

Vehicle Interface & Data Acquisition

Parameter availability is subject to vehicle make, model, year, and ECU configuration.

  • OBD Auto Mode - Issues SAE Mode 01 requests using standardized PIDs (e.g., PID 010D for vehicle speed, PID 010C for engine RPM) compatible with all OBD-II compliant vehicles.
  • OBD Non-Compliant Mode - Designed for electric vehicles and non-standard ECU architectures that do not support SAE OBD-II PIDs. Operates exclusively on OEM-specific parameter sets; recommended for BEV/EV platforms.

Features

  • 4G LTE Cat M1 Connectivity - North America-optimized LTE Cat M1 with broad band support (B1–B85) and GPRS Multi-Slot Class 12 fallback
  • OBD-II & OEM Parameter Reading - Standard SAE OBD-II PID acquisition plus OEM-specific parameter support; compatibility varies by vehicle make, model, and year
  • Multi-Constellation GNSS - Integrated high-gain GNSS receiver with up to -165 dBm sensitivity for reliable positioning in urban canyon environments
  • Bluetooth® Dual-Mode - Integrated Bluetooth® 3.0 and 4.0 + LE for peripheral device connectivity and EYE Sensor / EYE Beacon support
  • Plug-and-Play Installation - Direct OBD-II connector interface; no wiring, no tools, no vehicle modification required
  • On-Board Accelerometer - Built-in motion sensor enabling detailed accelerometer data, crash detection, and movement-based event triggering
  • Internal Backup Battery - 115 mAh Li-ion rechargeable 3.7 V battery for continuity of operation during power interruptions
  • Smart Data Acquisition - Configurable reporting triggers based on time, speed, heading angle, distance, ignition state, or any I/O event
  • 128 MB Flash Memory - On-board storage for up to 422,400 records, supporting store-and-forward operation in low-connectivity environments
  • CAN & K-Line Interface - Direct vehicle bus access for extended parameter acquisition beyond standard OBD-II
  • OTA Remote Management - Firmware and configuration updates via Teltonika FOTA WEB platform; secured SMS command configuration also supported
  • Jamming Detection - Active GNSS/GSM jamming detection with configurable alert event generation
  • Virtual Odometer - Software-based odometer accumulation independent of vehicle dashboard data
  • Overvoltage Protection - Built-in protection against supply voltage transients on the vehicle power circuit

Documents and Drivers

Documentation

FMM00A Flyer

FMM00A Datasheet

FMM00A Quick Manual

FMM00A First Start

FMM00A OBD Supported Vehicles

Specifications

MODULE

Name

Quectel BG95-M1, Teltonika TM2500

Technology

LTE CAT M1 / GNSS / Bluetooth® LE

GNSS

Constellations

GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver

  • 33 tracking channels
  • 99 acquisition channels

Tracking Sensitivity

-165 dBm

Position Accuracy

< 2.5 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot Start

< 1 s

Warm Start

25 s

Cold Start

< 35 s

CELLULAR

Technology

LTE CAT M1 / CAT NB1 / EGPRS

4G LTE Cat M1 Bands

BG95-M1: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85

Transmit Power

Class 3 for LTE-FDD: 23 ± 2.7 dBm

Data Transfer

LTE: Max. 588 Kbps (DL) / Max. 1119 Kbps (UL)

Data Support

SMS (text / data)

POWER

Input Voltage Range

10–30 V DC with overvoltage protection

Internal Back-up Battery

115 mAh Li-ion battery, 3.7 V (0.43 Wh)

Power Consumption at 12 V

  • < 6.5 mA (Ultra Deep Sleep)
  • < 8 mA (Deep Sleep)
  • < 13 mA (Online Deep Sleep)
  • < 18.3 mA (GPS Sleep)
  • < 31 mA (nominal)

BLUETOOTH® TECHNOLOGY

Specification

Bluetooth® 4.0 + LE

Transmit Power

Class 5 (20 dBm – 2 dB) for LTE-FDD bands

Supported Peripherals

Bluetooth® LE beacon label, Bluetooth® LE Beacon, Bluetooth® LE temperature sensor, Bluetooth® LE magnetic sensor, BLE movement sensor, Bluetooth® temperature and humidity sensor

PHYSICAL SPECIFICATION

Dimensions (L x W x H)

67.2 × 49.6 × 25 mm (2.65 × 1.95 × 0.98 in)

Weight

63 g (0.14 lb)

OPERATING ENVIRONMENT

Operating Temperature (without battery)

-40 °C to +85 °C (-40 °F to +185 °F)

Storage Temperature (without battery)

-40 °C to +85 °C (-40 °F to +185 °F)

Operating Humidity

5% to 95% non-condensing

Ingress Protection Rating

IP41

Battery Charge Temperature

0 °C to +45 °C (32 °F to +113 °F)

Battery Discharge Temperature

-20 °C to +60 °C (-4 °F to +140 °F)

Battery Storage Temperature

  • -20 °C to +45 °C for 1 month (-4 °F to +113 °F)
  • -20 °C to +35 °C for 6 months (-4 °F to +95 °F)

INTERFACE

Connection

OBD-II Socket

GNSS Antenna

Internal High Gain

Cellular Antenna

Internal High Gain

USB

2.0 Micro-USB

LED Indication

2 status LED lights

SIM

Micro-SIM

Memory

128 MB internal flash memory

OBD INTERFACE

Data

K-Line, CAN bus data

Data Reading

Up to 32 vehicle onboard parameters Supported OBD protocols:

  • SAE J1850 PWM (41.6 kbaud)
  • SAE J1850 VPW (10.4 kbaud)
  • ISO 9141-2 (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (fast init, 10.4 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 250 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 500 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 250 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 500 kbaud)

FEATURES

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplugging detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep Modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration & Firmware

FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)

SMS

Configuration, Events, Debug

GPRS Commands

Configuration, Debug

Time Synchronization

GNSS, NITZ, NTP

Fuel Monitoring

OBDII (depends on vehicle model)

Ignition Detection

Accelerometer, External Power Voltage, Engine RPM

CERTIFICATION & APPROVALS

Regulatory

IC, FCC, AT&T approval, PTCRB
