FMM80A - OBD2 4G Cat M1 Tracker with Crash Trace Data
FMM80A - OBD2 4G Cat M1 Tracker with Crash Trace Data
Product Images
FMM80A - OBD2 4G Cat M1 Tracker with Crash Trace Data
$62.20
SKU: GC-TTEL-FMM80A
MPN: FMM80AASUS01
Manufacturer: Teltonika Telematics
Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description

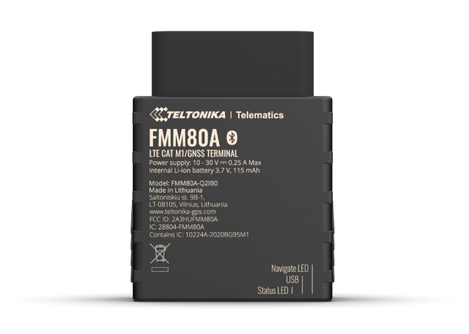

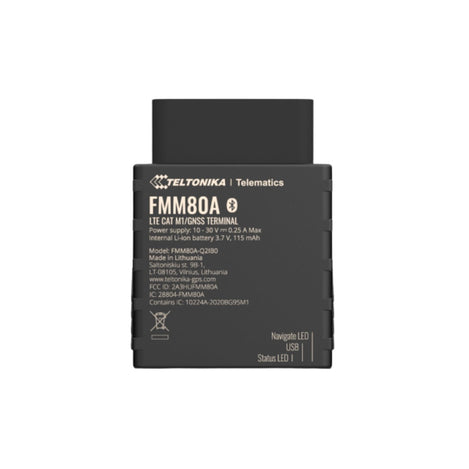

FMM80A OBD-II Fleet Tracker
The FMM80A is a compact OBD-II vehicle tracker built specifically for the North American market. It connects directly to any standard OBD-II port and begins transmitting real-time GPS location, vehicle diagnostics, and event alerts within seconds — no tools, no wiring, and no specialist installation required.
Running on 4G LTE Cat M1 and NB-IoT with 2G fallback, the FMM80A delivers broad coverage across the USA and Canada. A built-in 3-axis accelerometer enables crash detection and detailed trace data, while Bluetooth® 4.0 LE connectivity allows pairing with external sensors to expand monitoring capability. Ideal for fleets, rental operators, logistics companies, and insurance telematics programs looking for rapid deployment at scale.
Target Applications
- Fleet Telematics
- Courier & Delivery Services
- Car Rental & Leasing
- Insurance Telematics (UBI)
- Driver Log-Book & Behavior Monitoring
- Car Sharing & E-Mobility
Key Use Cases
Fleet & Delivery Operations - Real-time GPS tracking, geofencing, speed monitoring, and idle time reporting give fleet managers full visibility over vehicle location and driver behavior — helping reduce fuel costs and improve on-time performance.
Car Rental & Leasing - Fast installation and removal with no vehicle modification makes the FMM80A ideal for rental and leasing fleets. Towing detection and unplug alerts provide added security against unauthorized use or vehicle theft.
Insurance Telematics (UBI) - Accelerometer-based crash detection and green driving scoring provide the event data insurers need for usage-based insurance programs — automatically capturing incident traces without driver input.
Driver Log-Book - Automatic trip detection and ignition-based logging simplify driver activity recording for compliance and reporting — reducing manual log-book administration across mixed vehicle fleets.
Pin Assignments
Package Contents
- FMM80A tracking device
- Top and bottom device cover parts
Features
- 4G LTE Cat M1 & NB-IoT Connectivity - North America-certified LTE Cat M1 and NB-IoT with 2G fallback — broad coverage across the USA and Canada
- Tool-Free OBD-II Installation - Connects directly to the vehicle OBD-II port in seconds with no wiring, no drilling, and no technical expertise required — up and running immediately on power-up
- Multi-Constellation GNSS Positioning - Integrated high-gain receiver supporting GPS, GLONASS, GALILEO, BEIDOU, and AGPS with <2.5 m CEP accuracy and -165 dBm tracking sensitivity
- Crash Detection & Trace Data - Built-in 3-axis accelerometer with fully configurable parameters provides accurate crash detection and detailed post-event trace data for incident analysis and insurance reporting
- Bluetooth® 4.0 + LE Sensor Integration - Pairs wirelessly with external BLE sensors and beacons to monitor temperature, humidity, magnetic state, and movement — expanding telemetry without additional wiring
- Internal Backup Battery - 115 mAh Li-ion rechargeable 3.7 V battery maintains device operation during vehicle power interruptions, ensuring data continuity and tamper event recording
- 128 MB On-Board Flash Storage - Stores data locally during connectivity gaps and transmits on reconnection — ensuring no location or event records are lost in low-coverage areas
- Comprehensive Event Detection - Supports geofencing, over-speed alerts, excessive idling, towing detection, unplug detection, green driving scoring, GNSS fuel counter, and trip management
- Multiple Sleep Modes - GPS Sleep, Online Deep Sleep, Deep Sleep, and Ultra Deep Sleep modes reduce power consumption during inactivity to extend battery life and minimize vehicle drain
- OTA Remote Management - Firmware and configuration updates delivered remotely via Teltonika FOTA WEB — no physical access required, enabling centralized management of large device deployments
Documents and Drivers
Documentation
FMM80A Datasheet
FMM80A Quick Manual
Specifications
MODULE
Model Name
FMM80A-Q2IB0
Technology
LTE CAT M1 / GNSS / Bluetooth® LE
GNSS
Constellations
L1: GPS, GLONASS, GALILEO, BEIDOU
Receiver
33 channels
Tracking Sensitivity
-165 dBm
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot Start
< 1 s
Warm Start
< 25 s
Cold Start
< 35 s
CELLULAR
4G LTE Cat M1 Bands
LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Data Transfer
LTE-FDD (CAT M1): Max. 588 Kbps (DL) / Max. 1119 Kbps (UL)
Transmit Power
- Class 5 LTE-FDD: 21 ± 2.7 dBm
- Bluetooth®: 4.57 ± 2 dBm
- Bluetooth® LE: -4.83 ± 2 dBm
Data Support
SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT)
POWER
Input Voltage Range
10–30 V DC with overvoltage protection
Internal Back-up Battery
115 mAh Li-ion, 3.7 V (0.43 Wh)
Internal Fuse
3 A, 125 V
BLUETOOTH® TECHNOLOGY
Specification
Bluetooth® 4.0 + LE
Supported Peripherals
Temperature and humidity sensor, Inateck barcode scanner, Universal Bluetooth® LE sensors support
PHYSICAL SPECIFICATION
Dimensions (L x W x H)
67.2 × 49.6 × 25 mm (2.65 × 1.95 × 0.98 in)
Weight
63 g (0.14 lb)
OPERATING ENVIRONMENT
Operating Temperature (without battery)
-40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature (without battery)
-40 °C to +85 °C (-40 °F to +185 °F)
Operating Temperature (with battery)
0 °C to +40 °C (32 °F to +104 °F)
Storage Temperature (with battery)
-20 °C to +60 °C (-4 °F to +140 °F)
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery Charge Temperature
0 °C to +45 °C (32 °F to +113 °F)
Battery Discharge Temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Battery Storage Temperature
- -20 °C to +45 °C for 1 month (-4 °F to +113 °F)
- -20 °C to +35 °C for 6 months (-4 °F to +95 °F)
INTERFACE
Connection
OBD-II Socket
GNSS Antenna
Internal High Gain
GSM Antenna
Internal High Gain
USB
2.0 USB Micro B
LED Indication
2 status LED lights
SIM
Micro-SIM
Memory
128 MB internal flash memory
FEATURES
Sensors
Accelerometer (3-axis)
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection,
Auto Geofence, Manual Geofence, Trip
Sleep Modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration & Firmware Update
FOTA WEB, Teltonika Configurator (USB, Bluetooth® wireless)
SMS
Configuration, Events, Debug
GPRS Commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, TP
Ignition Detection
Accelerometer, External Power Voltage
CERTIFICATION & APPROVALS
Regulatory
RoHS, IC, FCC, AT&T, PTCRB, Declaration of IMEI assignment
