FMM13A 4G Cat M1 Tracker with I/O and CAN
FMM13A 4G Cat M1 Tracker with I/O and CAN
Product Images
FMM13A 4G Cat M1 Tracker with I/O and CAN
$97.50
SKU: GC-TTEL-FMM13A
MPN: FMM13A6ZU801
Teltonika Telematics
Free shipping to the continental US on orders over $100
Stock Status: Out of stock (more on the way)
Delivery: Order now and we'll deliver when available
Customers Also Bought
Product Description

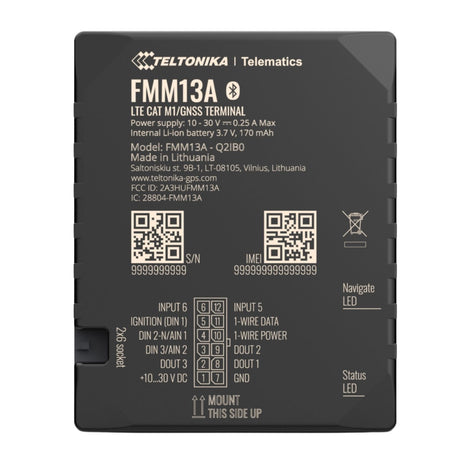

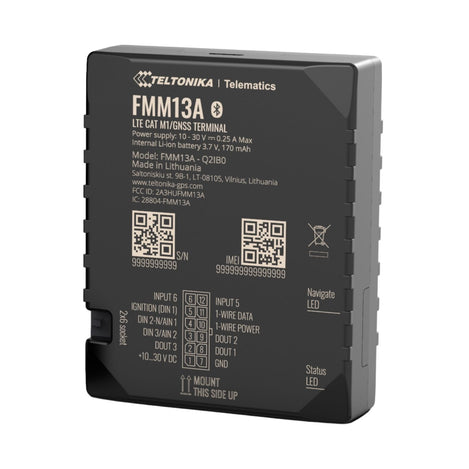

FMM13A - Advanced 4G LTE Cat M1 Fleet Tracking Terminal
The FMM13A is a compact, professional-grade telematics terminal engineered for advanced fleet tracking and remote monitoring applications in the North American market. Built around LTE CAT M1 connectivity, the device integrates a high-gain internal GNSS receiver, Bluetooth® 4.0 LE, and a highly configurable I/O interface with
- 3 digital inputs,
- 2 analog inputs,
- 3 digital outputs,
- 1-wire, and
- CAN bus connectivity via external CAN adapter.
A 170 mAh internal backup battery ensures operational continuity during power loss events. The FMM13A is certified for North American deployment (FCC, IC, PTCRB, AT&T) and is suited for fleet telematics, logistics, car sharing, fuel management, and driver safety monitoring applications requiring flexible sensor integration and remote configuration at scale.
External CAN Adapter Integration
The FMM13A does not include a native CAN transceiver but provides LVCAN RX/TX interface pins (INPUT 5/6) for integration with Teltonika's external CAN adapters (sold separately) — LV-CAN200 (light vehicles) and ALL-CAN300 (all vehicle types). These adapters enables acquisition of fuel level, odometer, RPM, engine temperature, door status, axle loads, and other OEM-defined CAN parameters from light vehicles, electric vehicles, trucks, buses, agricultural machinery, and construction equipment. Parameter availability is subject to vehicle make, model, year, and factory-fitted equipment — refer to the respective adapter supported vehicle lists for confirmed compatibility.
Key Use Cases
Fuel Management
Impulse inputs support direct fuel flow meter integration for precise volumetric fuel consumption measurement. Combined with CAN adapter data and GNSS Fuel Counter scenarios, the FMM13A provides multi-source fuel monitoring with anomaly detection capability.
Anti-Theft & Immobilization
Digital output control enables remote engine relay actuation for vehicle immobilization. Towing detection, unplug detection, and geofence breach alerts provide layered security event coverage with immediate server notification via GPRS or SMS.
Driver Identification & Log-Book
1-Wire iButton reader support enables hardware-based driver identification at ignition. Automatic trip detection, ignition-state logging, and iButton read notification scenarios support electronic driver log-book and access control workflows.
Package Contents
- FMM13A tracker
- Input/output power supply cable
Features
4G LTE Cat M1 Connectivity - Certified for North America, allows low-power wide area technologies to be used
Flexible I/O Configuration - 3 configurable digital inputs (DIN1–DIN3), 1 negative input (DIN2), 2 impulse inputs (DIN1/DIN2), 2 analog inputs with dual voltage ranges (0–10 V and 0–30 V), and 3 digital outputs for relay, LED, or buzzer control
CAN Bus Data via External Adapter - LVCAN RX/TX interface (INPUT 5/6) enables CAN bus data acquisition via Teltonika LV-CAN200 or ALL-CAN300 adapters — supporting fuel level, RPM, engine temperature, odometer, and more from light vehicles, trucks, buses, and special machinery
Multi-Constellation GNSS - Internal high-gain receiver supporting GPS, GLONASS, GALILEO, BEIDOU, QZSS, and AGPS with up to -165 dBm tracking sensitivity and <2.5 m CEP position accuracy
Bluetooth® 4.0 + LE Peripheral Support - Integrated Bluetooth® 4.0 LE supports EYE Sensors, EYE Beacons, 1-Wire RFID readers, temperature/humidity sensors, and other BLE peripherals for expanded environmental and asset monitoring
1-Wire Interface - Dedicated 1-Wire bus supports external temperature sensors and iButton identification tokens via a 1-Wire iButton reader — enabling driver identification, temperature monitoring, and access control integration
Internal Backup Battery - 170 mAh Li-ion rechargeable 3.7 V battery (0.63–0.66 Wh) maintains device operation and event recording during vehicle power interruptions — with 6-month battery warranty
128 MB On-Board Flash Memory -Records stored locally for store-and-forward transmission, ensuring no data loss in areas with intermittent cellular coverage
Documents and Drivers
Documentation
FMM13A Datasheet
FMM13A Quick Manual
FMM1A Manual
Specifications
MODULE
Name
FMM13A-Q2IB0: Quectel BG95-M1 with Teltonika TM2500
Technology
LTE CAT M1/GNSS/BLUETOOTH® LE
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver
- 33 tracking channels
- 99 acquisition channels
Tracking Sensitivity
-165 dBm
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot Start
< 1 s
Warm Start
< 25 s
Cold Start
< 35 s
CELLULAR
Technology
LTE CAT M1 / NB-IoT
4G LTE Cat M1 Bands
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85
Data Transfer (LTE)
Max. 588 Kbps (DL) / Max. 1119 Kbps (UL)
Transmit Power
- Class 3 for LTE-TDD: 23±2.7dBm
- Class 3 for LTE-FDD: 23±2.7dBm
Data Support
SMS (text, data)
POWER
Input Voltage Range
+10 V to +30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Current Consumption at 12 V
< 3 mA (Ultra Deep Sleep)
< 5 mA (Deep Sleep)
< 11 mA (Online Deep Sleep)
< 18 mA (GPS Sleep)
< 34 mA (nominal with no load)
< 2 A Max. (full load / peak)
BLUETOOTH® TECHNOLOGY
Specification
Bluetooth® 4.0 + LE
Supported Peripherals
Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth®LE sensors support
PHYSICAL SPECIFICATION
Dimensions (L x W x H)
77 x 62 x 20 mm (3.0 x 2.4 x 0.79 in)
Weight
69 g (0.15 lb)
OPERATING ENVIRONMENT
Operating Temperature (without battery)
-20°C ~ 85°C (-4°F ~ 185°F)
Storage Temperature (without battery)
-20°C ~ 85°C (-4°F ~ 185°F)
Operating Temperature (with battery)
-20°C ~ 40°C (-4°F ~ 104°F)
Storage Temperature (with battery)
-20°C ~ 45°C (-4°F ~ 113°F)
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
INTERFACE
Digital Inputs
3
Negative Inputs
1 (Digital Input 2)
Impulse Inputs
2 (Digital Input 1, Digital Input 2)
Digital Outputs
3
Analog Inputs
2
CAN Adapter Inputs
1
1-Wire
1 (temperature sensor and iButton support)
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED Indication
2 status LED lights
SIM
Micro-SIM
Memory
128 MB internal flash memory
FEATURES
Sensors
Built-in accelerometer / movement sensor
Scenarios
Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep Modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
SMS
Configuration, Events, DOUT control, Debug
GPRS Commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
CERTIFICATION & APPROVALS
Regulatory
FCC, PTCRB, IC, AT&T approval, RoHS
