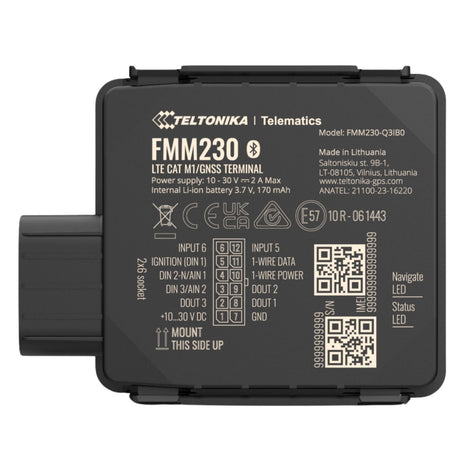

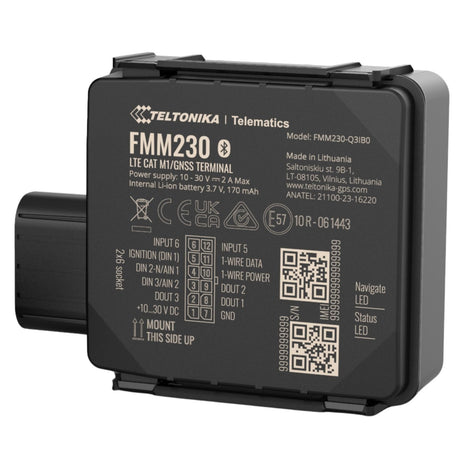

FMM230 4G Cat M1 Water Resistant Tracker with I/O

$105.00

SKU: GC-TTEL-FMM230
MPN: FMM230LN2F01
Teltonika Telematics

Leave a review

Qualifies for free shipping to the continental US

Stock Status: In stock

Delivery: Ships same or next business day

Customers Also Bought

Product Description

The FMM230 is a water- and dust-resistant real-time tracking terminal with LTE CAT M1 connectivity and 2G GSM fallback. and is designed for fleet applications operating in harsh environmental conditions. The IP67-rated casing provides total protection against dust ingress and resistance to water immersion to 1 meter depth for a minimum of 30 minutes. This capability makes it suitable for agriculture, construction, mining, water transport, and public services.

The device features configurable I/O, Bluetooth® 4.0 LE connectivity, and a 170 mAh backup battery. An integrated impulse input enables direct fuel flow meter connection for precise volumetric fuel consumption monitoring — particularly suited to high fuel usage machinery such as cranes, construction vehicles, and agricultural equipment.

Target Applications

  • Agriculture, Construction & Mining
  • Heavy Duty Transport
  • Driver Safety & Identification
  • Water Transport & Marine
  • Fleet Telematics
  • Fishing Boats & Watercraft Tracking
  • Public & Utility Services
  • Fuel Management
  • Fleet Maintenance Scheduling

Remote Device Management

FOTA WEB - Cloud-based OTA management with multi-level account hierarchy and smart group scheduling for automated firmware and configuration update deployments across large device fleets.

Teltonika Configurator & FMBT - Desktop configuration via USB or Bluetooth® wireless connection. FMBT mobile application also supports configuration. SMS and GPRS command support including remote DOUT control.

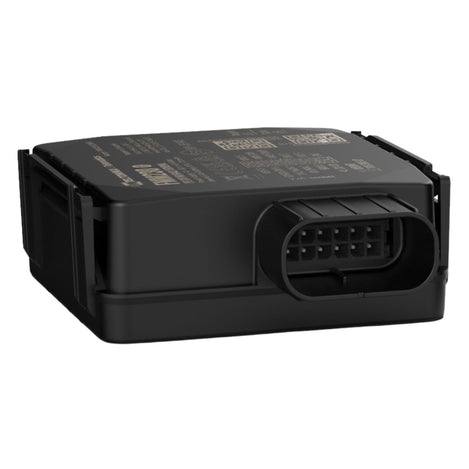

Connector Pinout Information


Package Contents

  • FMM230 tracker
  • Input/output power supply cable (0.9 m)

Features
  • IP67 Water & Dust Resistant Casing - Total protection against dust ingress (IP6X) and resistance to water immersion to 1 metre for a minimum of 30 minutes (IPX7) — rated for agriculture, construction, mining, marine, and public service environments
  • Impulse Input for Fuel Flow Meters - Configurable impulse inputs (Digital Input 1 and Digital Input 2) support direct connection to fuel flow meters for precise volumetric fuel consumption measurement — well-suited for cranes, construction vehicles, mining machines, and agricultural equipment
  • Flexible I/O Configuration - 3 digital inputs (including 1 negative input and 2 impulse inputs), 2 analog inputs, 3 digital outputs, 1 CAN adapter input, and 1-Wire interface for sensor and peripheral integration
  • LTE CAT M1 / NB-IoT with 2G Fallback - BG95-M3 module provides LTE CAT M1 and CAT NB2 connectivity with GSM/GPRS fallback for reliable global coverage across mixed network infrastructure environments
  • CAN Adapter Support - CAN adapter input supports Teltonika LV-CAN200 and ALL-CAN300 adapters for vehicle CAN bus data acquisition, and CAN-CONTROL for remote vehicle access control (additional devices sold separately)
  • Multi-Source Fuel Monitoring - Supports LLS analog fuel level sensors, LV-CAN200, ALL-CAN300, and CAN-CONTROL (devices sold separately) — providing flexible fuel monitoring integration across multiple vehicle and machinery types
  • Bluetooth® 4.0 + LE Peripheral Support - Supports temperature and humidity sensors, Inateck barcode scanner, and universal BLE sensors for extended environmental and asset monitoring
  • No Additional Tools Required - Innovative click-type two-phase closing mechanism requires no additional tools for installation.
  • 170 mAh Internal Backup Battery - Li-ion 3.7 V, 0.63 Wh rechargeable backup battery maintains device operation during vehicle power interruptions. Micro-SIM or eSIM for deployment flexibility
  • OTA Remote Management - Firmware and configuration via FOTA WEB, FOTA, Teltonika Configurator (USB and Bluetooth®), and FMBT mobile application for configuration. SMS and GPRS command support including DOUT control

Documents and Drivers

Documentation

FMM230 Datasheet

FMM230 Flyer

FMM230 First Start

FMM230 Quick Manual

FMM230 Manual

Specifications

MODULE

Model Name

FMM230

Module

BG95-M3

Technology

LTE CAT M1 / NB-IoT / GSM / GPRS / GNSS / Bluetooth® LE

GNSS

Constellations

GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS

Receiver

33 tracking channels, 99 99 acquisition channels

Tracking Sensitivity

-165 dBm

Position Accuracy

< 2.5 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot Start

< 1 s

Warm Start

< 25 s

Cold Start

< 35 s

CELLULAR

Technology

LTE CAT M1 / NB-IoT / GSM

2G Bands

BG95-M3: B2 / B3 / B5 / B8

4G LTE M1 Bands

LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85, LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85, GSM: 850 / 900 / 1800 / 1900 MHz

Data Transfer

LTE: Max. 588 Kbps (DL) / Max. 1119 Kbps (UL), GPRS: Max. 107 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmit Power

Class 4 GSM850/900: 23 ± 2 dBm, Class 1 GSM1800/1900: 20 ± 2 dBm, Class 3 LTE-TDD: 23 ± 2.7 dBm, Class 3 LTE-FDD: 23 ± 2.7 dBm

Data Support

SMS (text/data)

POWER

Input Voltage Range

10–30 V DC with overvoltage protection

Internal Back-up Battery

170 mAh Li-ion, 3.7 V (0.63 Wh)

Internal Fuse

3 A, 125 V

Power Consumption at 12 V

< 3 mA (Ultra Deep Sleep) < 5 mA (Deep Sleep) < 11 mA (Online Deep Sleep) < 18 mA (GPS Sleep) < 34 mA (nominal with no load) < 2 A Max. (full load / peak)

BLUETOOTH® TECHNOLOGY

Specification

Bluetooth® 4.0 + LE

Supported Peripherals

Temperature and humidity sensor, OBDII dongle, Inateck barcode scanner, Universal BLE sensors support

PHYSICAL SPECIFICATION

Dimensions (L x W x H)

70.5 × 67.0 × 25.6 mm (2.78 × 2.64 × 1.01 in) 85.0 × 67.0 × 25.6 mm with connector socket (3.35 × 2.64 × 1.01 in)

Weight

75 g (0.17 lb)

OPERATING ENVIRONMENT

Operating Temperature (without battery)

-20 °C to +85 °C (-4 °F to +185 °F)

Storage Temperature (without battery)

-20 °C to +85 °C (-4 °F to +185 °F)

Operating Temperature (with battery)

-20 °C to +40 °C (-4 °F to +104 °F)

Storage Temperature (with battery)

-20 °C to +45 °C (-4 °F to +113 °F)

Operating Humidity

5% to 95% non-condensing

Ingress Protection Rating

IP67

Battery Charge Temperature

0 °C to +45 °C (32 °F to +113 °F)

Battery Discharge Temperature

-20 °C to +60 °C (-4 °F to +140 °F)

Battery storage temperature

-20 °C to +45 °C (-4 °F to +113 °F), -20°C ~ 35°C (-4°F ~ 95°F)

INTERFACE

Digital Inputs

3

Negative Inputs

1 (Digital Input 2)

Impulse Inputs

2 (Digital Input 1, Digital Input 2)

Digital Outputs

3

Analog Inputs

2

CAN Adapter Inputs

1

1-Wire

1

GNSS Antenna

Internal High Gain

Cellular Antenna

Internal High Gain

USB

2.0 Micro-USB

LED Indication

2 status LED lights

SIM

Micro-SIM or eSIM

Memory

128 MB internal flash memory

FEATURES

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep Modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration & Firmware Update

FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)

SMS

Configuration, Events, DOUT control, Debug

GPRS Commands

Configuration, DOUT control, Debug

Time Synchronization

GNSS, NITZ, NTP

Fuel Monitoring

LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle (sold separately)

Ignition Detection

Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle, sold separately)

Data Support

SMS (text / data)

CERTIFICATION & APPROVALS

Regulatory

CE-RED, E-Mark, RCM, Reach, RoHS, IP Rating, Anatel
