FTM305 4G IP67 e-mobility tracker with CAN
FTM305 4G IP67 e-mobility tracker with CAN
Product Images

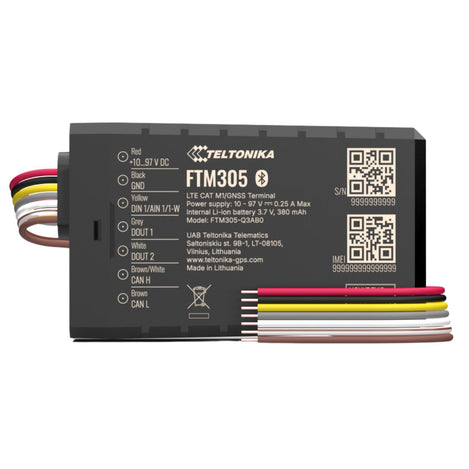

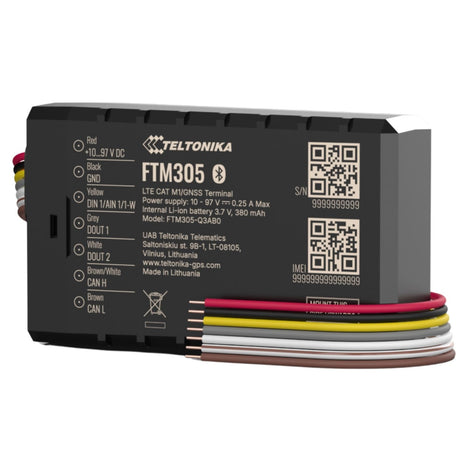

FTM305 4G IP67 e-mobility tracker with CAN
$131.70
SKU: GC-TTEL-FTM305
MPN: FTM305Q1AA01
Manufacturer: Teltonika Telematics
Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US
We Have You Covered
Skip To Footer
Product Information
Product Description
Compact 4G LTE Cat M1 e-mobility tracker with CAN data reading and robust IP67-rated casing
The FTM305 is a compact tracker designed for e-mobility and electric equipment applications including e-bikes, e-scooters, e-forklifts, shuttle cars, and utility machinery. Its 10–97 V DC power supply range allows direct integration across a wide range of electric vehicle and industrial platforms.
Onboard CAN interface enables reading of vehicle CAN data for fleet monitoring and e-mobility management.
This device is suitable for demanding outdoor and field deployments with its built-in high-gain GNSS and cellular antennas, a 380 mAh backup battery, and robust IP67 casing.
Package Contents
- FTM305 tracker
- 7-pin main cable
Features
CAN Data Reading - Onboard CAN interface supports manual CAN data reading and manual CAN commands, enabling retrieval of vehicle parameters directly from the CAN bus for e-mobility fleet monitoring and efficiency management.
Wide Voltage Range Power Supply - 10–97 V DC input allows the FTM305 to be integrated directly into e-bikes, e-forklifts, shuttle cars, and other electric equipment without requiring a voltage converter.
IP67 Ingress Protection - Sealed enclosure rated IP67 provides full protection against dust ingress and resistance to water immersion, eliminating the need for additional protective housing in outdoor or industrial deployments.
High-Accuracy GNSS - Multi-constellation GNSS receiver (GPS, GLONASS, GALILEO, BEIDOU) with 75-channel L1 tracking, up to 41 visible satellites, position accuracy of <1.8 m CEP, and hot start of <1 second.
Bluetooth® 5.3 LE - Supports EYE sensors and EYE beacons (sold separately).
1-Wire Interface - Single 1-Wire channel available on pin 3 (shared with DIN1 / AIN1).
I/O - 1× Digital Input, 2× Digital Outputs (up to 500 mA each), 1× Analog Input (0–100 V range), 1× CAN interface (High/Low)
Sleep Modes - Online sleep, deep sleep, and power off sleep for power management in e-mobility applications.
Scenarios - Crash detection, over-speeding detection, trip, odometer, eco driving, excessive idling, network jamming detection, unplug detection, auto geofence, towing detection, fall down detection, static navigation, ignition ON counter, custom scenarios, manual CAN data reading, manual CAN commands.
Ignition Detection - Via Digital Input 1, accelerometer, external power voltage, or manual CAN.
Configuration & Firmware Update - FOTA Web (remote OTA management) and Telematics Configuration Tool (TCT) for Windows 10/11.
Documents and Drivers
Documentation
FTM305 Datasheet
FTM305 Quick Manual
Specifications
MODULE
Model Names
FTM305
Module
FTM305Q2AB0: Quectel BG95-M1, internal antennas, casing version
Technology
LTE CAT M1 / GSM / GPRS / GNSS / Bluetooth® LE
GNSS
Constellations
GPS, GLONASS, GALILEO, BEIDOU
Receiver
75 channel
Tracking Sensitivity
-165 dBm
Position Accuracy
< 1.8 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot Start
< 1 s
Warm Start
< 25 s
CELLULAR
Technology
LTE CAT M1 / GSM
2G Bands
GSM: B2 / B3 / B5 / B8
4G LTE Bands
LTE FDD (CAT M1 Only): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Data Transfer
LTE (CAT M1): Max. 588 Kbps (DL) / Max. 1119 Kbps (UL)
Transmit power
- Class 4 GSM850/900: 23 ± 2 dBm
- Class 1 GSM1800/1900: 20 ± 2 dBm
- Class 3 LTE-TDD: 23 ± 2.7 dBm
- Class 3 LTE-FDD: 23 ± 2.7 dBm
Data Support
SMS (TEXT, PDU), Network protocols (TCP)
DATA CODEC
Codec support
Codec 8 Extended
POWER
Input voltage range
10–97 V DC
Internal Back-up battery
380 mAh Li-ion, 3.7 V (1.41 Wh)
Internal fuse
3 A, 125V
Power consumption at 12V
- < 45 mA (nominal with no load)
- < 0.25 A (with full load / peak)
BLUETOOTH® TECHNOLOGY
Bluetooth® 5.3 + LE for 5.3 + LE, EYE sensors and EYE beacons support (units sold separately)
PHYSICAL SPECIFICATION
Dimensions
69 × 41 × 20.9 mm (2.72 × 1.61 × 0.82 in)
Weight
76.8 g (0.17 lb)
ENVIRONMENT
Operating temperature
-30 °C to +85 °C (-22 °F to +185 °F)
Storage temperature
-30 °C to +85 °C (-22 °F to +185 °F)
Operating humidity
65 ± 20% non-condensing
Ingress Protection Rating
IP67
Battery charge temperature
0 °C to +45 °C (32 °F to +113 °F)
Battery discharge temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Battery storage conditions
-10 °C to +25 °C for 3 or more months (14 °F to +77 °F)
INTERFACES
Digital Inputs
1
Digital outputs
2
Analog Inputs
1
1-Wire
1
CAN
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 USB Type-C
LED indication
2 status LED lights
SIM
Nano-SIM
Memory
128 MB internal flash memory
FEATURES
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, Unplug detection, Crash detection, Manual CAN data reading, Manual CAN commands
Sleep modes
Online Sleep, Deep Sleep, Power Off Sleep
Configuration and firmware update
FOTA WEB, Telematics Configurator (TCT)
Time synchronization
GNSS, NITZ, NTP
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Manual CAN
CERTIFICATIONS & APPROVALS
Regulatory
CE / RED, UKCA, E-Mark, RoHS, REACH, RCM, Pulse 5a, Anatel
