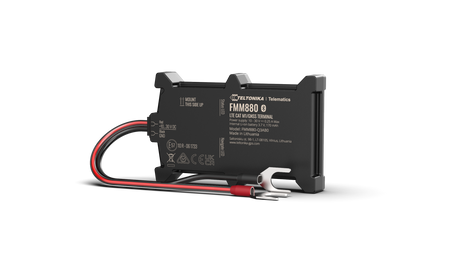

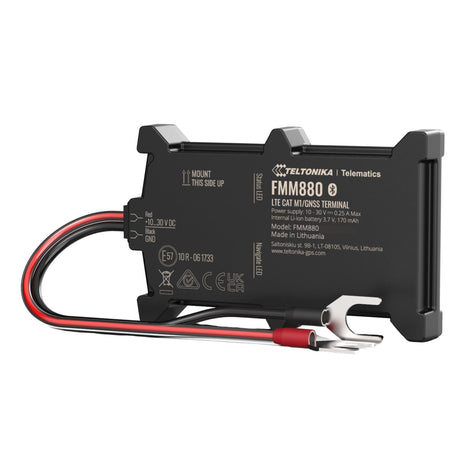

FTM880 4G Cat M1 Tracker, IP69K Waterproof casing, Battery Mount
FTM880 4G Cat M1 Tracker, IP69K Waterproof casing, Battery Mount
Product Images
FTM880 4G Cat M1 Tracker, IP69K Waterproof casing, Battery Mount
$98.35
SKU: GC-TTEL-FTM880
MPN: FTM880ABAB01
Manufacturer: Teltonika Telematics
Delivery: Ships within 4-5 weeks
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description
FTM880 Battery-Mounted 4G LTE Cat M1 GPS Tracker
The FTM880 is a next-generation battery-mounted vehicle GPS tracker built on the Teltonika Fleet Telematics (FT) platform. It delivers enhanced GNSS accuracy with up to 41 visible satellites via a 75-channel L1 receiver, achieving position accuracy of <1.8 m CEP. The IP69K-rated waterproof and dustproof casing provides protection against high-pressure water jets and steam, making it suitable for harsh outdoor environments including agriculture, construction, and mining applications. Optimized sleep modes — including Deep Sleep, Online Deep Sleep, and Power Off Sleep — extend battery life and minimize vehicle battery drain.
Target Applications
- Fleet Telematics
- Car Sharing, Rental & Leasing
- Driver Safety Monitoring
- Agriculture, Construction & Mining
- Insurance Telematics
- Basic Track & Trace — Heavy Machinery
Features
- Higher GNSS Accuracy - 75-channel L1 receiver supporting GPS, GLONASS, GALILEO, and BEIDOU with up to 41 visible satellites — providing considerably higher tracking quality and <1.8 m CEP position accuracy
- FT Platform - Built on the Fleet Telematics (FT) platform with advanced firmware and hardware, offering enhanced tracking capability and custom scenarios for application-specific configuration
- IP69K Waterproof Casing - Ultimate protection against dust, high-pressure water, and steam — rated IP69K for deployment in agriculture, construction, mining, and other harsh outdoor environments
- Optimized Sleep Modes - Deep Sleep, Online Deep Sleep, and Power Off Sleep modes reduce power consumption to as low as 0.599 mA, extending battery operating time and significantly reducing vehicle battery drainage
- LTE CAT M1 Connectivity - with GPRS fallback
- 320 mAh Internal Backup Battery - Li-ion 3.7 V, 1.18 Wh rechargeable backup battery maintains operation during vehicle power interruptions and supports power loss event recording
- Fast Installation - Battery-mounted form factor with U-Type cable connection and double-sided tape mounting for fast deployment without specialist tools or vehicle modification
- OTA Remote Management via FOTA WEB & TCT - Firmware and configuration updates delivered remotely via FOTA WEB with multi-level account hierarchy and smart group scheduling. Device configuration via Teltonika Configuration Tool (TCT)
Documents and Drivers
Documentation
FMM880 Datasheet
FMM880 First Start
FMM880 Quick Manual
FMM880 Wiring Scheme
FMM880 Manual
Specifications
MODULE
Module
FTM880-Q2AB0
Technology
LTE CAT M1 / GPRS / GNSS
GNSS
Constellations
GPS, GLONASS, GALILEO, BEIDOU
Receiver
L1: 75 channel
Tracking Sensitivity
-165 dBm
Position Accuracy
< 1.8 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot Start
< 1 s
Warm Start
< 25 s
Cold Start
< 35 s
CELLULAR
Technology
LTE CAT M1 / GPRS
2G Bands
GSM: B2 / B3 / B5 / B8
4G LTE Bands
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Data Transfer
- LTE FDD (CAT M1): Max. 588 Kbps (DL) / Max. 1119 Kbps (UL)
- GSM (GPRS): Max. 107 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit Power
- Class 4 GSM850/900: 33 ± 2 dBm
- Class 1 GSM1800/1900: 30 ± 2 dBm
- Class 3 LTE-TDD: 20 ± 2 dBm
- Class 3 LTE-FDD: 20 ± 2 dBm
Data Support
SMS (TEXT, PDU), Network protocols (TCP, UDP)
Data Codec
Codec 8 Extended
POWER
Input Voltage Range
10–30 V DC
Internal Back-up Battery
320 mAh Li-ion, 3.7 V (1.18 Wh)
Internal Fuse
3 A
Power Consumption at 12 V
< 24.523 mA (Normal mode)
< 5.601 mA (Online Deep Sleep)
< 2.552 mA (Deep Sleep)
< 0.599 mA (Power Off Sleep)
PHYSICAL SPECIFICATION
Dimensions (L x W x H)
118 × 48 × 18.5 mm (4.65 × 1.89 × 0.73 in)
Weight
118 g (0.26 lb)
OPERATING ENVIRONMENT
Operating Temperature (without battery)
-40°C ~ 85°C (-40°F ~ 185°F)
Storage Temperature (without battery)
-40°C ~ 85°C (-40°F ~ 185°F)
Operating Temperature (with battery)
0 °C ~ 40°C (32°F ~ 104°F)
Storage Temperature (with battery)
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP69K
Battery Charge Temperature
0 °C to +45 °C (32 °F to +113 °F)
Battery Discharge Temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Battery Storage Temperature
-10 °C to +50 °C for 1 month (14 °F to +122 °F)
-10 °C to +35 °C for 3 months (14 °F to +95 °F)
0 °C to +30 °C for 1 year (32 °F to +86 °F)
INTERFACE
Connection
U-Type cable
GNSS Antenna
Internal High Gain
Cellular Antenna
Internal High Gain
USB
2.0 USB Type-C
LED Indication
2 status LED lights
SIM
Nano-SIM
Memory
128 MB internal flash memory
FEATURES
Sensors
Accelerometer
Scenarios
Crash Detection, Over Speeding, Trip, Odometer, Eco Driving, Excessive Idling, Network Jamming Detection, Unplug Detection, Auto Geofence, Towing Detection, Static Navigation, Custom Scenarios
Sleep Modes
Deep Sleep, Online Deep Sleep, Power Off Sleep
Configuration & Firmware Update
FOTA WEB, Teltonika Configuration Tool (TCT)
SMS
Configuration, Debug
GPRS Commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Ignition Detection
Accelerometer, External Power Voltage
CERTIFICATION & APPROVALS
Regulatory
IC, FCC, AT&T, PTCRB, T-Mobile
