GRID32 Evaluation Kit
GRID32 Evaluation Kit
Product Images
GRID32 Evaluation Kit: 110 VAC US
$195.00
SKU: GRID32-EVAL-KIT-110
MPN: GRID32-EVAL-KIT-110
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Delivery: Ships within 1-2 business days
Qualifies for Free shipping to the continental US
Power Supply
-
$195.00
-
$195.00
We Have You Covered
Skip To Footer
Product Information
Product Description

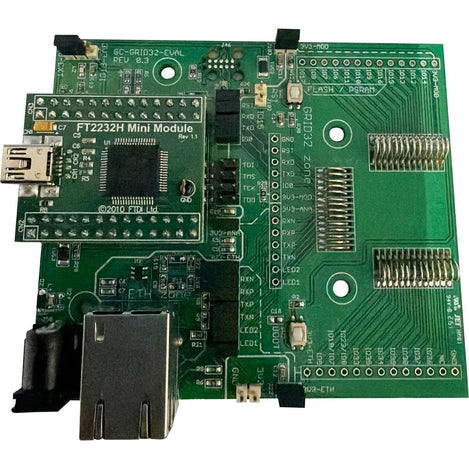

The GRID32 Evaluation Board provides a flexible test and qualification platform for all variations of the GRID32 modules (sold separately). These powerful, Wi-Fi, and Ethernet co-processor modules are a fully integrated network solution in a small form factor and are designed to be a simple, easy to integrate add-on module to an OEMs host processor.
NOTE: GRID32 module sold separately
The evaluation board uses a multiplexor circuit to provide 4 optional external
serial connections to the single serial interface on the GRID32 module. This allows OEMs to test the GRID32 in any one of the following modes:
• RS232 serial connection
• RS485/RS422 serial connection
• USB serial for a connection to a PC
• TTL Serial connection (all eight signals) to the OEMs host controller UART interface through the Multiplexor circuit.
The Evaluation board is easily powered using the provided +5V wall adaptor and provides pin sockets for a GRID32 module to be easily plugged into the evaluation board. The pin sockets also allow the module to be swapped in or out.
GRID32 Evaluation Kit Contents
This kit contains the following items:
• GRID32 Evaluation Board
• 5V wall adaptor
• USB Cable Type A to Micro connector
• Insulated wi.fl antenna cable to reverse SMA connector
• Dipole antenna
Order Options
| SKU | Power Supply | Manufacturer Part # (MPN) |
| GRID32-EVAL-KIT-110 | 110 VAC US | GRID32-EVAL-KIT-110 |
| GRID32-EVAL-KIT-U | 110/220 VAC EU | GRID32-EVAL-KIT-U |
Features
Configurable to support 4 different serial connection options:
- RS232 (DB9 connector)
- RS422/485 (5 pin de-pluggable terminal strip)
- USB (micro connector) for a plug and play connection to a PC
- Direct wire between an OEM’s host microcontroller and the UART interface of the GRID45
Documents and Drivers
Documentation
GRID32 Evaluation Board User Guide
GRID32 Evaluation Kit Quick Start Guide
