Serial to Bluetooth Adapter - GRIDBluFly: 110V - U.S./North America - DCE (Female Holes)

$85.00

Leave a review

SKU: GRIDBF-DCE-110

MPN: GRIDBF-DCE-110

Manufacturer: Grid Connect Inc.

Delivery: Coming Soon June 2023
Qualifies for Free shipping

Power Supply

Connector

Call to order: (630) 245-1445

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Made in the USA

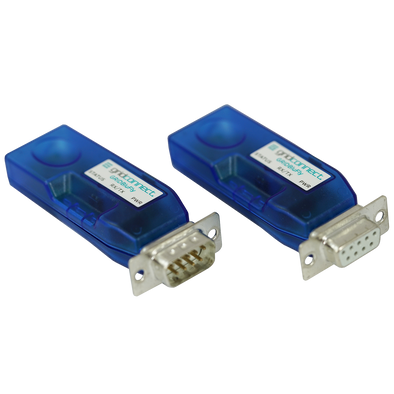

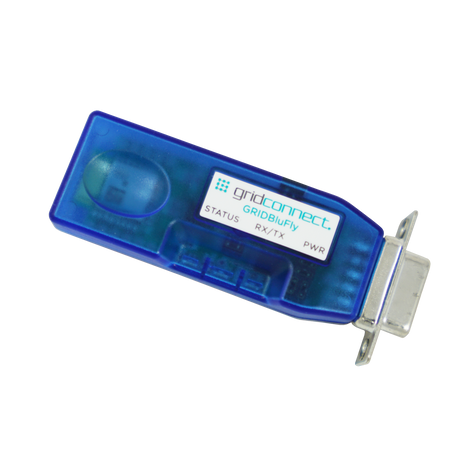

The GRIDBluFly or simply BluFly is a Class 1 Bluetooth® radio modem with 2.4GHz RF PCB trace antenna. The modules are Bluetooth version 5.0 compliant (BR + EDR + Bluetooth® LE). The connector is available in either an RS232 DB9 Male or Female connector.

Two BluFly devices can be configured and paired to make a wireless RS232 cable replacement or extender. A PC with Bluetooth capability can also pair with a single BluFly creating a virtual COM port for wireless serial communication.

These serial devices can be configured, commanded, and controlled with simple ASCII strings through the BluFly’s hardware serial UART or over a remote Bluetooth RF connection. The device has a mid-range power transceiver (300 feet). Actual range may vary due to environment or type of client device used to connect to BluFly.

Bluetooth wireless technology is a short-range radio technology making it possible to transmit signals over short distances between computers and other devices. This capability simplifies communication and synchronization between devices.



Pin Numbers and Descriptions

Pin  DTE Description (DB9 Male) DCE Description (Female)
1 NC NC
2 RXD (in) TXD (out)
3 TXD (out) RXD (in)
4 DTR (out) [option] NC
5 GND GND
6 NC DTR (out) [option]
7 RTS (out) CTS (in)
8 CTS (in) RTS (out)
9 External Power 5-16 VDC External Power 5-16 VDC



Order Summary



SKU

Power Supply

Connector

Manufacturer Part # (MPN)
GRIDBF-DCE-110 110V - U.S./North America DCE (Female Holes) GRIDBF-DCE-110
GRIDBF-DCE-220 220V - Europe (Except U.K.) DCE (Female Holes) GRIDBF-DCE-220
GRIDBF-DCE-NOPS No Power Supply DCE (Female Holes) GRIDBF-DCE-NOPS
GRIDBF-DCE-USB USB Power Cable DCE (Female Holes) GRIDBF-DCE-USB
GRIDBF-DTE-110 110V - U.S./North America DTE (Male Pins) GRIDBF-DTE-110
GRIDBF-DTE-220 220V - Europe (Except U.K.) DTE (Male Pins) GRIDBF-DTE-220
GRIDBF-DTE-NOPS No Power Supply DTE (Male Pins) GRIDBF-DTE-NOPS
GRIDBF-DTE-USB USB Power Cable DTE (Male Pins) GRIDBF-DTE-USB

Features

  • High speed RS232, with standard baud rates from 1200 to 921,600.
  • Parity Even, Odd, or None, 7/8 Data Bits, 1 Stop Bit.
  • Hardware flow control via RTS, CTS (local serial connection only).
  • Modem control output (DTR) tied to flow control output (RTS) optional.
  • Settings can be easily changed via local serial port connection.
  • Mid-range Power (Class 1, 12dBm TX, 300’, 90m) Bluetooth™ radio
  • Serial Port Profile (SPP) used for direct connect to Classic BT clients.
  • Custom GATT profiles for BLE clients (peripheral role only).
  • Green (connection), Yellow (TX/RX) and Green (Power) LEDs.
  • Low power operation requires only 5VDC at 40ma when connected.
  • Smallest possible form factor.
  • DB9 Male or DB9 Female connector standard.

Documents and Drivers

Documentation

GRIDBluFly User Guide

GRIDBluFly Comparison with FireFly

Specifications

Antenna

2.4GHz RF PCB trace

Baud Rate

Baud Rates other than 9600 or 115200 must be selected in command mode.

Connection Modes

Master, Slave, Trigger Master, Auto-Connect

Connector(s)

Serial: DB9 - DTE (male) or DCE (female)

Control Signals

CTS, RTS (local serial connection only)

Data Bits

7/8 Bits

Dimensions

  • Outer diameter: 3.50mm (.14in)
  • Inner diameter: 1.35mm (.05in)
  • Length: 8 - 8.25mm (.31-.32in)

Flow Control

Hardware (RTS/CTS) or None

Parity

Even, Odd, or None

Indicators LED

  • Transmit/Receive (TX/RX) Data
  • Power
  • Connection Status

MPN

GRIDBF-DCE-110, GRIDBF-DCE-NOPS, GRIDBF-DCE-USB, GRIDBF-DCE-220, GRIDBF-DTE-110, GRIDBF-DTE-220, GRIDBF-DTE-NOPS, GRIDBF-DTE-USB

Power

  • Power Jack: 5VDC – 16VDC
  • Input: (typically +5V)5-16VDC

Profiles

SPP only, Custom GATT profiles for BLE clients

Stop Bits

1

Temperature Range

0°C to 70°C (32°F to 158°F)
