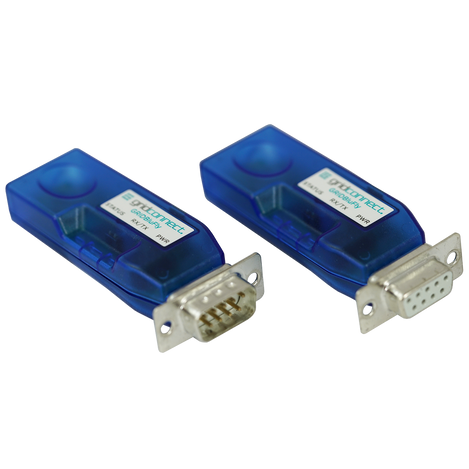

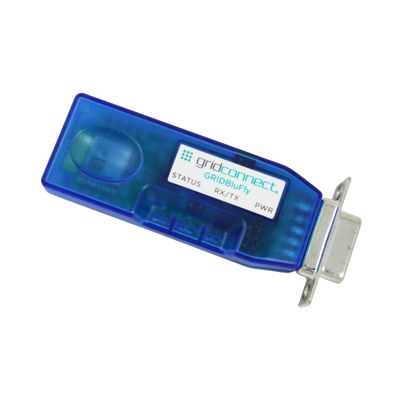

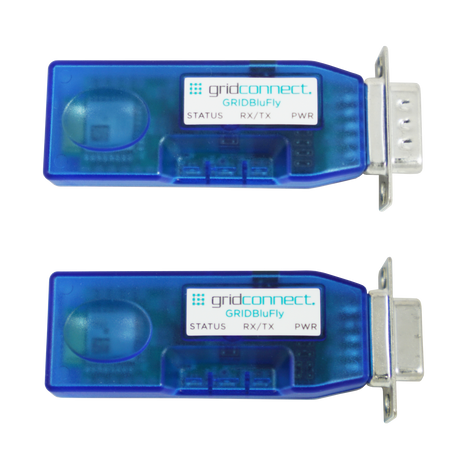

Bluetooth RS232 Serial GRIDBluFly Pair: 110V - U.S./North America - DCE (2 Female)

$170.00

4.0 stars 4.0 (1) See customer reviews

SKU: GRIDBFP-2DCE-110

MPN: GRIDBFP-2DCE-110

Manufacturer: Grid Connect Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

Power Supply

Connector

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Made in the USA

The GRIDBluFly Pair, also known as BluFly Pair, can be configured to make a  Bluetooth Class 1 wireless connection to replace or extend an RS232 cable. Range can be up to 300ft.

The two BluFly devices first need to be paired so they will transfer serial data between them.  Set 1 device as the master (client) and the other as the slave (peripheral), and then set the configuration switches.

Once the two devices have paired, change Auto Discover to off for both devices to prevent the devices from inadvertently pairing with other devices on the next power on.

No software changes or drivers required!




Order Summary



SKU

Connectors

Power Supply

Manufacturer Part # (MPN)

GRIDBFP-2DCE-110 DCE (2 Female) 110V - U.S./North America GRIDBFP-2DCE-110
GRIDBFP-2DCE-220 DCE (2 Female) 220V - Europe GRIDBFP-2DCE-220
GRIDBFP-2DCE-NOPS DCE (2 Female) No Power Supply GRIDBFP-2DCE-NOPS
GRIDBFP-2DCE-USB DCE (2 Female) USB Power Cable GRIDBFP-2DCE-USB
GRIDBFP-2DTE-110 DTE (2 Male) 110V - U.S./North America GRIDBFP-2DTE-110
GRIDBFP-2DTE-220 DTE (2 Male) 220V - Europe GRIDBFP-2DTE-220
GRIDBFP-2DTE-NOPS DTE (2 Male) No Power Supply GRIDBFP-2DTE-NOPS
GRIDBFP-2DTE-USB DTE (2 Male) USB Power Cable GRIDBFP-2DTE-USB
GRIDBFP-DTE-DCE-110 Both (1 Male/1 Female) 110V - U.S./North America GRIDBFP-DTE-DCE-110
GRIDBFP-DTE-DCE-220 Both (1 Male/1 Female) 220V - Europe GRIDBFP-DTE-DCE-220
GRIDBFP-DTE-DCE-NOPS
Both (1 Male/1 Female) No Power Supply GRIDBFP-DTE-DCE-NOPS
GRIDBFP-DTE-DCE-USB Both (1 Male/1 Female) USB Power Cable GRIDBFP-DTE-DCE-USB

Features

  • High speed RS232, with standard baud rates from 1200 to 921,600.
  • Parity Even, Odd, or None, 7/8 Data Bits, 1 Stop Bit.
  • Hardware flow control via RTS, CTS (local serial connection only).
  • Modem control output (DTR) tied to flow control output (RTS) optional.
  • Settings can be easily changed via local serial port connection.
  • Mid-range Power (Class 1, 12dBm TX, 300’, 90m) Bluetooth™ radio
  • Serial Port Profile (SPP) used for direct connect to Classic BT clients.
  • Custom GATT profiles for BLE clients (peripheral role only).
  • Green (connection), Yellow (TX/RX) and Green (Power) LEDs.
  • Low power operation requires only 5VDC at 40ma when connected.
  • Smallest possible form factor.
  • DB9 Male or DB9 Female connector standard.

Documents and Drivers

Documentation

GRIDBluFly User Guide

GRIDBluFly Comparison with FireFly

Specifications

Antenna

2.4GHz RF PCB trace

Baud Rate

Baud Rates other than 9600 or 115200 must be selected in command mode.

Connection Modes

Master, Slave, Trigger Master, Auto-Connect

Connector(s)

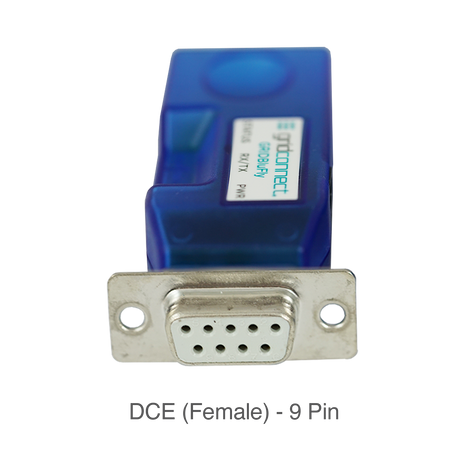

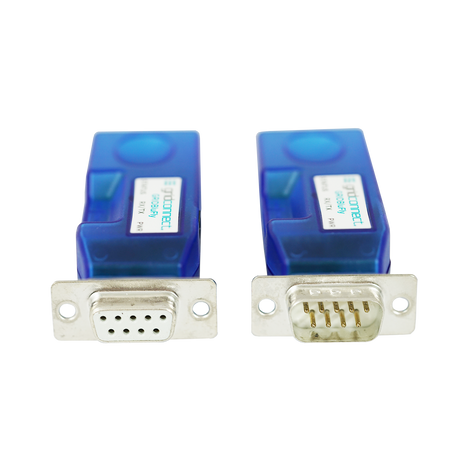

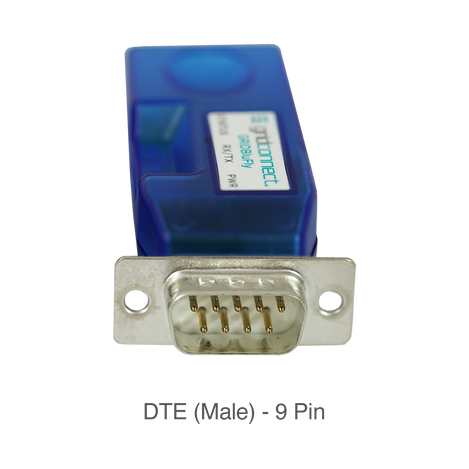

Serial: DB9 - DTE (male) or DCE (female)

Control Signals

CTS, RTS (local serial connection only)

Data Bits

7/8 Bits

Dimensions

  • Outer diameter: 3.50mm (.14in)
  • Inner diameter: 1.35mm (.05in)
  • Length: 8 - 8.25mm (.31-.32in)

Flow Control

Hardware (RTS/CTS) or None

Parity

Even, Odd, or None

Indicators LED

  • Transmit/Receive (TX/RX) Data
  • Power
  • Connection Status

MPN

GRIDBFP-2DCE-110, GRIDBFP-2DCE-220, GRIDBFP-2DCE-NOPS, GRIDBFP-2DCE-USB, GRIDBFP-2DTE-110, GRIDBFP-2DTE-220, GRIDBFP-2DTE-NOPS, GRIDBFP-2DTE-USB, GRIDBFP-DTE-DCE-110, GRIDBFP-DTE-DCE-220, GRIDBFP-DTE-DCE-NOPS, GRIDBFP-DTE-DCE-USB

Power

  • Power Jack: 5VDC – 16VDC
  • Input: (typically +5V)5-16VDC

Profiles

SPP only, Custom GATT profiles for BLE clients

Stop Bits

1

Temperature Range

0°C to 70°C (32°F to 158°F)
