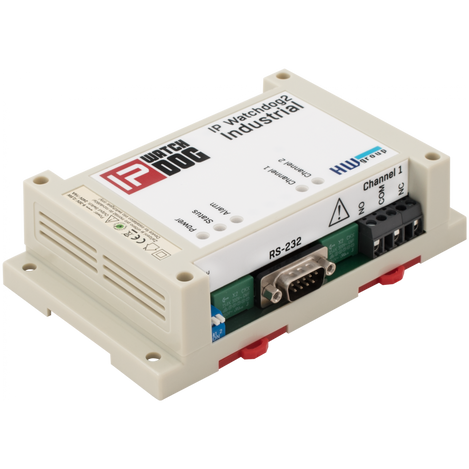

IP WatchDog2 Industrial - Hwgroup industrial detector failure & restart: IP WatchDog2 Industrial Unit
$480.20
SKU: GC-HWG-IP-WD2-IND
MPN: 600641
Manufacturer: HW Group sro
IP WatchDog2 Industrial Type
-
$480.20
-
$518.10
We Have You Covered
Product Information
Product Description
The IP WatchDog2 Industrial is an automatic monitoring & recovery device that monitors the health of external systems by periodically checking for activity via:
- ICMP PING
- Web access
- RS-232 serial data (heartbeat)
If a failure is detected (no response or missing heartbeat), the device can automatically reboot the affected system.

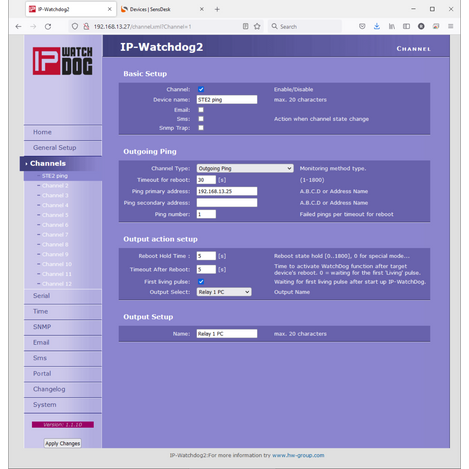

Manual control is also available via a password-protected web interface.
Failure Detection Methods
- Outgoing PING – Sends PINGs to the monitored device.
- Incoming PING – Waits for PINGs from the device (heartbeat).
- Web Client – Tries to load a defined web page on the target device.
- Web Server – Waits for the device to access IP WatchDog’s internal web page (heartbeat).
- RS-232 Heartbeat – Listens for a specific string on the RS-232 line.
- Manual Reboot – Triggered by an operator.
Outputs & Channels
- 2 Physical Relay Outputs (230V/16A NO/NC) for direct device control
- 12 Monitoring Channels per unit
- Can reboot local or remote devices (via virtual outputs on Poseidon2/Damocles2)
Applications & Use Cases
-
Backup Internet Activation
Automatically switches to a backup LTE link if the primary connection fails. -
Automatic Device Recovery
Detects and restarts unresponsive LAN devices such as:- Routers and switches
- Wi-Fi access points
- IP cameras
- PCs and embedded systems
-
Remote Site Management
Eliminates the need for physical travel just to reboot devices — power cycling happens automatically or via remote access. -
Kiosk & Charger Management
- Supports manual or automatic restart of unattended kiosks.
- Ensures autonomous recovery of EV chargers and similar equipment.
-
Multi-Device Coordination
Keeps complex systems of 3–10 devices running smoothly by monitoring each component and triggering recovery if needed. -
Connectivity & Alerts
- Verifies IP camera availability.
- Enables standalone alerting — no cloud portal required.
- Sends notifications via:
- SNMP Trap
- Email (SMTP)
- SMS / Voice Call (with HWg-SMS-GW3 on the same LAN)
Order Summary
SKU | Package Type | Package Contents | Manufacturer Part # (MPN) |
GC-HWG-IP-WD2-IND | IP WatchDog2 Industrial Only | IP WatchDog2 Industrial device | 600641 |

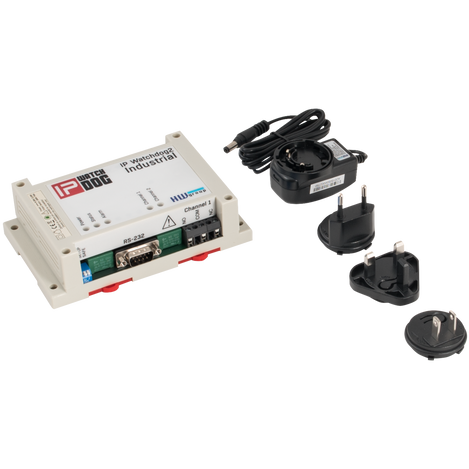

GC-HWG-IP-WD2-IND-SET | IP WatchDog2 Industrial Kit | IP WatchDog2 Industrial device with power adapter | 600644 |
Features
- 12x failure detection Channels
- 2x physical DO Relay (NO/NC 230V/16A AC)
- Device Failure Detection – 5 + 1 Methods
- Alert: SNMP Trap
- RS-232 can be used for failure detection
- Alert: E-mail (via Portal or SMTP server)
- Alert: SMS+Ring (via external GSM gateway or a modem)
- Connected via LAN. Configuration via built-in web server.
- Data logger for up to 200 records. With the HWg-PDMS software, logged data can be exported to MS Excel.
- Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Documents and Drivers
Documentation
IP WatchDog2 Industrial Flyer
IP WatchDog2 Industrial User Manual
CERTIFICATIONS
CE Declaration
Specifications
Ethernet
Functionality detection
Detection method
Relay output
Communication
Internal LOG
Installation
Power input
Dimensions
Operating temperature
