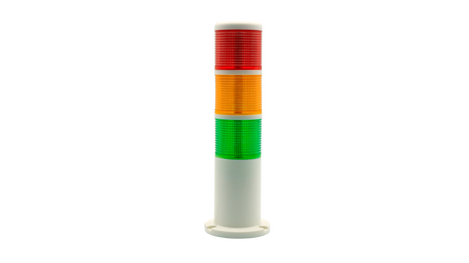

IT Cabinet Sensor Status Light

$150.00

Leave a review

SKU: GC-AK-SSL

MPN: SSL

Manufacturer: AKCP Co Ltd.

Delivery: Ships within 1-2 days
Qualifies for Free shipping to the US

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor StampConnect the Sensor Status Light to any SPX+ or SP+ sensor port. The light will change color based on the sensor status. Ideal for factory automation, data center applications and systems/control.

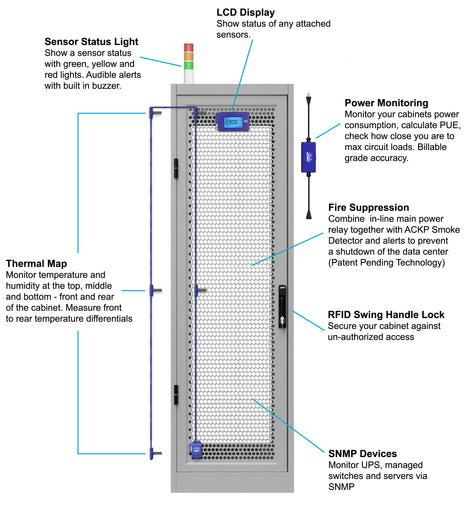

Every SSL comes with both a visual and audible status for attracting the attention of technicians to investigate further.  When mounted on top of your computer cabinets, you have instant visual recognition of a cabinet in a warning or critical state. Three lights, red, amber and green are programmed to illuminate or flash based on a sensor status input. A buzzer for audible alarms can be turned on or off depending on your requirements.

Sensor Status Light is compatible with all SP+ base units (sold separately).

Documents and Drivers

Documentation

Sensor Status Light Datasheet

Specifications

Cable Length

The SSL sensor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 100 feet, or 30 meters using standard CAT5/6 LAN cable

Communications Cable

RJ-45 jack to sensor using UTP CAT5e/6 cable

Dimensions

75mm X 55mm X 27mm (2.96in X 2.17in X 1.06in)

Humidity

Min. 20% – Max. 80% (Non-Condensing)

Mounting

Desktop, Wallmount, Din rail, Magnetic

Power

Powered by the sensorProbe+ familiy units. No additional power needed

Power Consumption

Typical 200 mWatt, 40 mA

Temperature Range

-35 to +80 °C (-31°F to +176°F)
