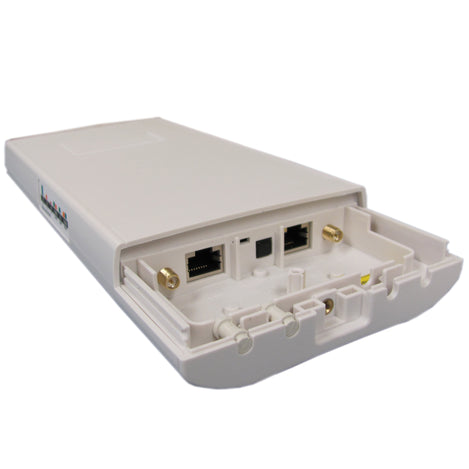

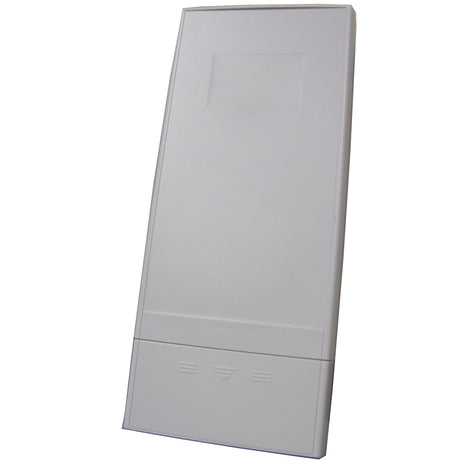

Long Range WAP/Industrial Bridge - 802.11 a/n, 5 GHz - ZAC-1023-5

Leave a review

SKU: GC-IND-WIFI-AP-5GHZ-EXT

MPN: ZN-7200-2AEI

Manufacturer: Discontinued

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

This long range Wireless Access Point is a dependable and cost-effective WLAN device in a weatherproof IP55 rated enclosure making it ideal for outdoor use or in industrial environments. Operating in the 5GHz ISM band, it supports high-speed wireless networking and is IEEE 802.11a/n compliant.

There are 4 modes of operation allowing one device to simplify complex wireless networks:

  • Wireless Access Point
  • Wireless Client Mode
  • Repeater
  • WDS Bridge

Included with this long range wireless access point are 2 external 5 dBi Omni antenna for standard applications. Other antennas can be used if more power or greater coverage is needed. External antenna can be connected via one of the (2) SMA-RP connectors.

Powered by an Atheros AR9342 chipset, the ZAC-1023-5 implements wireless security with the selection of WEP, WPA, WPA2, WPA+WPA2, WPA-PSK(TKIP), WPA2-PSK(AES), WPA-PSK + WPA2-PSK encryption.

Support: The knowledgeable and experienced engineers at Grid Connect provide complete technical support for the ZAC-1023-5. We offer phone support and on-line chat support during regular business hours.

Features

  • 4 Operational Modes: AP, Client, Repeater, WDS Bridge
  • IEEE 802.11a/n Compliant WiFi Networking
  • Dual SMA-RP External Antenna Connectors
  • Includes (2) External 5 dBi Omni Antenna
  • 24Vdc Passive PoE network power supply
  • Atheros AR9342 Chipset
  • Weatherproof IP55 Rated Compact Plastic Enclosure
  • Supports distances up to 5 Km
  • RoHS Compliant
  • REACH Compliant
  • FCC Approved
  • CE Approved

Documents and Drivers

Documentation

Product Specifications for ZAC-1023-5

Quick Installation Guide for ZAC-1023-5

Wireless Access Point / Industrial Bridge Comparison Guide

Downloads

Wireless Access Point/Industrial Bridge - 5 GHz

Specifications

Antennas

(2) external 5 dBi Omni antenna included

Certifications

  • RoHS
  • FCC Part 15 sub B and Sub E
  • CE EN301893 V1.7.1
  • CE EN301489 -1/-17
  • CE EN55022/24
  • CE EN60950

Communication

Data Rates:

  • 802.11a - Up to 54 Mbps
  • 802.11n - Up to 144 Mbps

Connector(s)

  • Ethernet: 1 port
  • Antenna: (2) SMA-RP (External)

Dimensions

256 x 111 x 48 mm

Firmware

  • HTTP-UI upgrade via Ethernet port or wireless network
  • TFTP upgrade via Ethernet port

Frequency

  • FCC: 5.15GHz ~ 5.25GHz; 5.725GHz~5.85GHz
  • NCC: 5.15GHz ~ 5.25GHz; 5.725GHz~5.85GHz
  • CE: 5.15GHz~5.35GHz; 5.47GHz~5.725GHz

Humidity

  • Storage: 10 ~ 95% RH (non-condensing)
  • Operational: 5% to 95% RH (non-condensing)

Indicators LED

  • Power
  • LAN
  • 5G WLAN
  • Signal (*3)

Interface(s)

  • Wireless LAN – IEEE802.11a/n
  • Ethernet – IEEE802.3u MDI / MDIX 10/100 Fast Ethernet

Management

  • Password Protection
  • HTTP, HTTPS, SSL, Telnet, SSH, SNMP, FTP

Modulation Techniques

  • DSSS / BPSK / QPSK / CCK / DQPSK / DBPSK
  • 802.11a: OFDM
  • 802.11n: OFDM

MPN

ZN-7200-2AEI-O

Operation Modes

  • Wireless Access Point
  • Wireless Client Mode
  • Repeater
  • WDS Bridge

Power

Adapter Output: 24Vdc @ 1A

Power Consumption

< 12W

Receiver Sensitivity

  • 802.11a: 6-54Mbps ≤ -75dBm
  • 802.11n: HT20/MCS0-7 ≤ -74dBm
  • 802.11n: HT40/MCS8-15 ≤ -71dBm

Security/Protection

  • WEP
  • 802.1X
  • WPA
  • WPA2
  • WPA + WPA2
  • WPA-PSK (TKIP)
  • WPA2-PSK(AES)
  • WPA-PSK + WPA2-PSK

Temperature Range

  • Storage: -40ºC to 70ºC (-40ºF to 158ºF)
  • Operational: -20ºC to 70ºC (-4ºF to 158ºF)

Warranty

2 year
