This product is discontinued and no longer available.

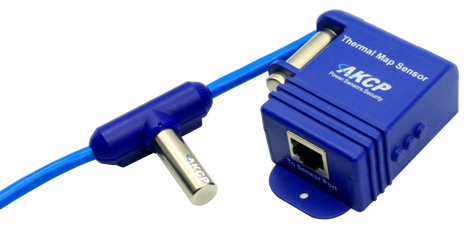

LoRa Wireless Cabinet Thermal Mapping Sensor: 3 Sensor Cable

Leave a review

SKU: GC-AK-LBCTH

MPN: LBCTH

Manufacturer: AKCP Co Ltd.

Cable Version

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The LoRa™ Cabinet Thermal Mapping Sensor is a dual temperature and humidity sensor that supports the monitoring of data center cabinets/ racks. With the external LoRa antenna, the sensor is able to broadcast up to 250 meter indoors and up to 10 km in open space.





The wireless device offers flexibility with placement as well as various mounting possibilities. For best placement of the sensors the unit is available with the options of a 3-sensor cable or 6-sensor cable. Both options provide monitoring of the temperature and humidity of the top, middle, bottom, front, and rear of the cabinet. The 6-sensor version also allows for tracking the inlet and exhaust air temperature as well as the front to rear temperature differentials.

When connected to the L-DCIM gateway (sold separately), the user is able to easily identify any hotspots or potential risk areas in real-time. The AKCPro software provides data tracking as well as customized alerts when parameters are outside the specified range. A technician is able to remotely monitor the devices with a tablet or desktop.

The device is powered by 4 internal batteries and is guaranteed a 10-year life-span when broadcasting every 15 minutes. The device also provides an external micro-USB power source, leaving the batteries for back-up support.





Order Summary



Product Image

SKU

Cable Version

Monitoring Capabilities

Manufacturer Part # (MPN)
GC-AK-LBCTH Product Image

GC-AK-LBCTH

DISCONTINUED

 3 Sensor Cable
  • Top
  • Middle
  • Bottom
  • Front
  • Rear
 LBCTH
GC-AK-LBCTHM Product Image

GC-AK-LBCTHM

DISCONTINUED

 6 Sensor Cable
  • Top
  • Middle
  • Bottom
  • Front
  • Rear
  • Inlet and Exhaust
  • Front to Rear Differentials
 LBCTHM

Features

  • Battery or USB Powered
  • 10 year guaranteed battery life
  • IP54 rated casing for all environments
  • DIN rail, magnets, or wall moutning options


LoRa™ radio technology

  • Increased signal penetration
  • Maximixed signal distance
  • "Listen before talk" to minimize packet collisions
  • Frequent broadcasting

Documents and Drivers

Documentation

LoRa Cabinet Thermal Map Product Informationhttps://gridconnect.box.com/shared/static/mr26bzurpv4ynbmu28mnidq0l0ex58wi.pdf

Specifications

Antennas

Di-Pole LoRa

Certifications

FCC Part15C, CE EN300220-2

Connector(s)

Micro-USB power supply

Dimensions

  • LBCTH / LBCTHM Unit: 76.8 x 76.8 x 46.92 mm
  • With Sensor Cables: 76.8 x 376.8 x 46.92 mm
  • Di-Pole Antenna: 9.56 x 38.63 x 115 mm

Indicators LED

Sensor Mode

Measurement Accuracy

Temperature:

  • Maximum: ±0.3 at -40ºC (±0.6 at -40ºF)
  • Minimum: ±0.3 at +25ºC and ±0.3 at +75ºC (±0.6 at +25ºC and ±0.6 at +167ºF)


Humidity:

  • 25°C ±2%RH

Measurement Range

  • Temperature: -40ºC to 75ºC (-40ºF to 167ºF)
  • Humidity: 0% to 100% relative humidity

Mounting

DIN Rail, Wall Mount, Magnetic

MPN

LBCTH, LBCTHM

Power Consumption

12 mWatt

Power Supply

Internal batteries or micro-USB port

Radio

  • LoRa™ Radio
  • 902-915 MHz
  • Max TX Power +20dBm

Temperature Range

-35ºC to 80ºC (-31ºF to 176ºF)

Humidity

20% to 80% (non-condensing)
