$115.00
ATC-405 Low Cost Managed 5 Port Industrial Ethernet Switch
ATC-405 Low Cost Managed 5 Port Industrial Ethernet Switch
Product Images
ATC-405 Low Cost Managed 5 Port Industrial Ethernet Switch
$49.99
Regular price: $129.00
SKU: GC-ATC-405
MPN: ATC-405
Manufacturer: ATC
Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description

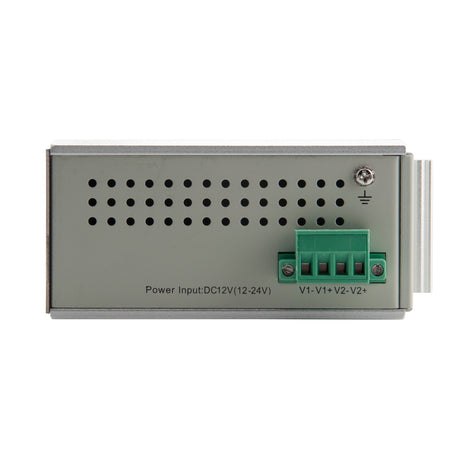

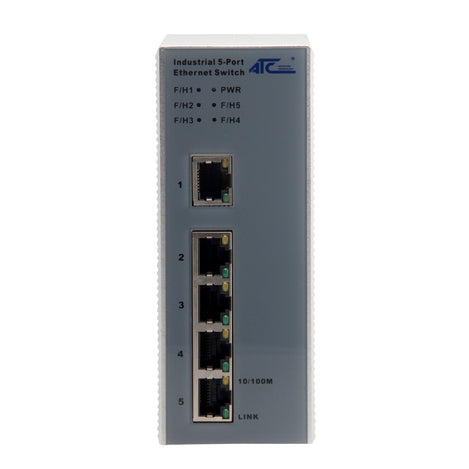

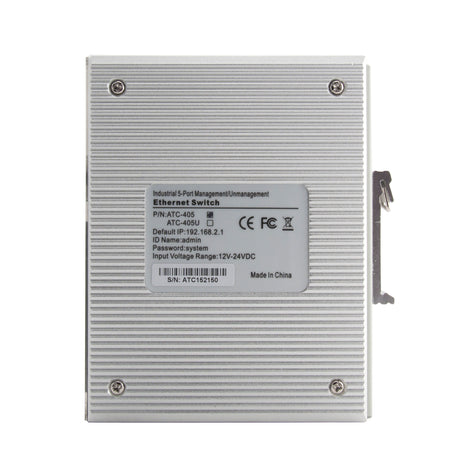

High quality, low cost, industrial "Managed" Ethernet switch with aluminum housing and dual 12-24 VDC power terminal block connector. 5 RJ45 Ethernet 10/100 switch connections can be managed through webpage configuration. This managed switch gives the user control over the ports, access, and quality of service. The ATC-405 industrial switch can be panel or DIN rail mounted.
Features
- Each port can be 10Base-TX, 100Base-TX
- Up to 2K MAC addresses
- Support auto-polarity for 10Mbps
- Half/Full duplex support
- Broadcast storm protection
- Auto MDI-MDIX detection
- Layer 2-4 Multi-Field classifier
- Class of Service-Port based, MAC address, VID, VLAN priority, IPv4 ToS, IPv6 DSCP,TCP/UDP
- Support policy-based QoS (Quality of Service)
- Support 4-level priority queues per port
- WRR/WFQ/SP
- Support hardware IGMP v1,v2 snooping
- Support Port mirroring
- Support 16 VLAN (IEEE Std 802.1q)
- Support STP, RSTP and MSTP
- Support port-based access control
- Panel or DIN rail mounting included
Documents and Drivers
Downloads
ATC 405 Product CD
Specifications
Certifications
RoHS, WEEE Compliant, CE, UL approved
Dimensions
135 x54 x 108 mm
MPN
ATC-405
Ports
5 x managed 10/100 Ethernet ports
Product Weight
0.8Kg
Temperature Range
-40°C to +70°C (-40°F to +158°)
Humidity
10 to 90% relative humidity, non-condensing
