This product is discontinued and no longer available.

MERCURY 10″ EIP KIT - EtherNet/IP DIAGNOSTICS: 10/100 Ethernet - 4G Cellular Modem

Leave a review

SKU: GC-MERCURY-10-100-4G-EIP-KIT

MPN: 101-824430-US

Manufacturer: Procentec

Ethernet Type

Modem Type

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

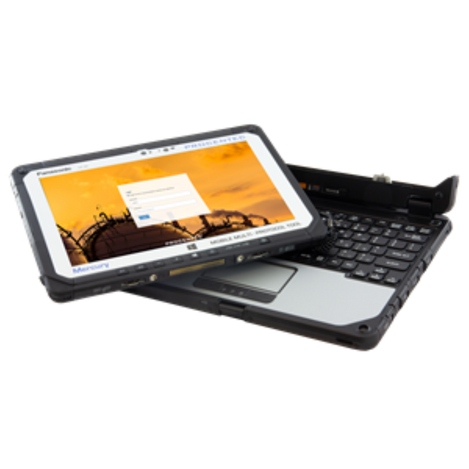

Authorized North America Distributor Stamp The Mercury 10” EIP Kit has everything for troubleshooting, maintaining, monitoring, and commissioning Industrial EtherNet/IP networks. The Mercury 10” is a 2 in 1 device that can be used as a laptop and then switched to become a rugged tablet. Osiris is a new cross platform software used by the Mercury to provide an easy user interface to quickly view the health and quality of a network. Besides finding and diagnosting issues, the software includes a Commissioning Wizard to help with certifications. An EtherTAP is included to capture packets and send information to the Mercury.

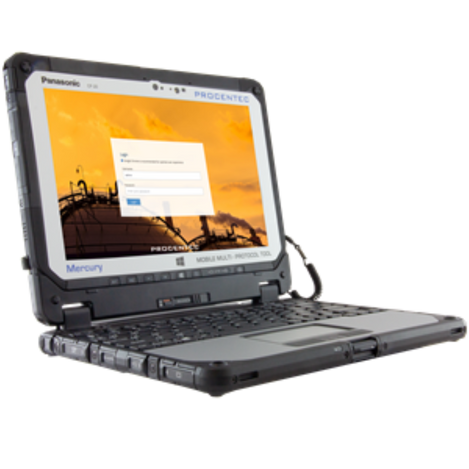

Mercury 10” device

Mercury 10” includes the Osiris software that provides high tech troubleshooting and maintenance capabilities for industrial Ethernet networks. The 10” screen provides easy to view topologies, graphs and tables. The dashboard and the topology views can be customized. The software interface is easy to use, has a remote and wireless connection, and mobility for anywhere and anyplace. Device lists and alarm lists can be exported to make it easy to document issues or do further analysis. The Q-Factor feature has a weighted algorithm to score the quality of the network.

EtherTAP

EtherTAP is a monitoring device that sends feed information to Osiris for analysis. The device is available with 10/100 Ethernet or 1G Ethernet option. The analysis license is included.

Commissioning Wizard

The Commissioning Wizard automates commissioning of PROFINET networks making it easy to prepare certification reports. The license for the wizard is included.

The video below covers troubleshooting EtherNet/IP with Osiris and Delphi.





Browser Requirements

  • Must support HTML5 and JavaScript
  • Minimum versions for supported browsers
    - Chrome version 46 or higher (Optimal Performance)
    - Edge version 25 or higher
    - Firefox version 42 or higher
    - Safari version 5 or higher

Mercury 10" EIP Kit includes:

  • 1 x Mercury 10” (101-830220) (4G modem included with 4G Modem option)
  • 1 x EtherNet/IP Commissioning Wizard 101-700206),
  • 1 x EtherTAP: EtherNet/IP Analysis License (101-700205) ,
  • 1 x EtherTAP 10/100 (513-00011A), (EtherTAP 1G included with Ethernet 1G option)
  • 1 x Netilities (39020),
  • 1 x TAP Din Rail Mount (70010057),
  • 1 x RJ45 to RJ45 3 meter Cable (123-637GRR3),
  • 1 x RJ45 to M12 3 meter Cable (123-642EMR3),
  • 1 x 360 degree hand strap (101-820221),
  • 1 x Carrying Case (101- 820222),
  • 1 x Osiris Software (101-700100)

Order Summary



SKU

Ethernet Type

Modem Option

Manufacturer Part # (MPN)

GC-MERCURY-10-100-EIP-KIT 10/100 Ethernet No Cellular Modem 101-824420-US (DISCONTINUED)
GC-MERCURY-10-100-4G-EIP-KIT 10/100 Ethernet 4G Cellular Modem 101-824430-US (DISCONTINUED)
GC-MERCURY-10-1G-EIP-KIT 1G Ethernet No Cellular Modem 101-825420-US (DISCONTINUED)
GC-MERCURY-10-1G-4G-EIP-KIT 1G Ethernet 4G Cellular Modem 101-825430-US (DISCONTINUED)

Features

  • Topology: galaxy, tree or customized view
  • Dynamic interactions for complete overview
  • Device information
  • Device connections with NAMUR status
  • Network scoring mechanism
  • Traffic light feature
  • Customizable dashboard

Documents and Drivers

Documentation

Mercury Brochure

Osiris on Atlas, Mercury and PC User Manual

Specifications

Cable Length

Ethernet cable maximum: 100 m

Connector(s)

  • USB: 1x USB 3.0, 1x USB 2.0
  • Expansion Slot: Micro SD/SDXC Memory Card
  • Ethernet: RJ-45

Core

Intel® Core™ i5-7Y57 vPro™ processor

Dimensions

203 x 18 x 132 mm

Humidity

Maximum 98% relative air humidity

Interface(s)

  • Bluetooth: Version 4.1 + EDR Class 1
  • WLAN: Intel® Dual Band Wireless-AC 8265

Memory

RAM: 4 GB (Max. 8 GB)

Mounting

Handheld (handstrap and stylus supplied)

MPN

101-825420-US, 101-825430-US, 101-824420-US, 101-824430-US

Operating System

Windows 10 Pro

Protocols

  • Supported: OPC UA, PROFINET, PROFINET I&MO
  • Supported (detect only): PROFINET, Modbus TCP, Ethernet/IP
  • Used: ARP, ICMP, DCP, SNMP, PROFINET I&M0

Security/Protection

IP 65 (MIL STD 810G and IEC 60529)

Speed

Ethernet: 10/100/1000 Mbps

Storage Capacity

128 GB Solid State Drive (Serial ATA)

Temperature Range

  • Operating: -29°C to 60°C (-20°F to 140°F)
  • Storage: -51°C to 71°C (-60°F to 160°F)
