Mobilizer Standard 800, 8 CAN, 2 LIN and 2 DIO channels
Mobilizer Standard 800, 8 CAN, 2 LIN and 2 DIO channels
Product Images
Mobilizer Standard 800, 8 CAN, 2 LIN and 2 DIO channels
$4,838.00
SKU: GC-IXT-MBLZ-STD
MPN: 1.01.0143.08000
Manufacturer: Ixxat
Delivery: Ships within 4-5 weeks
Qualifies for Free shipping to the continental US
We Have You Covered
Skip To Footer
Product Information
Product Description

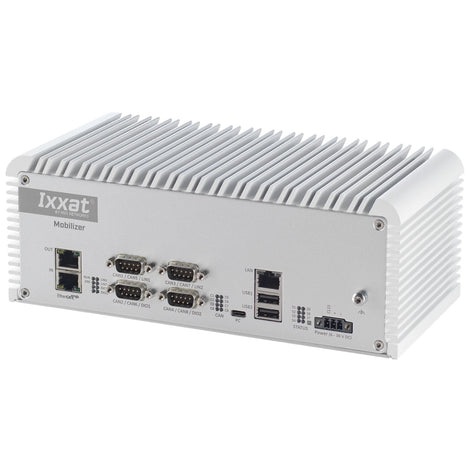

The Ixxat Mobilizer Standard 800 is a compact, configurable automotive gateway that combines eight CAN/CAN FD channels with two LIN interfaces in a single embedded device. It is built for data logging, protocol gateway tasks, and rest bus simulation. All application logic runs directly on the platform; a PC is only needed for initial configuration or for visualizing data.
Setup is handled through the Ixxat Advanced Configuration Tool (ACT), a Windows-based drag-and-drop tool that requires no programming skills; most use cases can be covered with the free ACT Freeware edition.
As the entry point in the Mobilizer family, the Standard 800 focuses on core CAN/LIN connectivity rather than the Automotive Ethernet, EtherCAT, SENT, and K-Line interfaces found on the Pro version.
Features
- Go-to solution for demanding network requirements — consolidates multiple bus systems into a single, compact device, suited to e-mobility and complex industrial applications
- Multi-connectivity with various interfaces — 8x CAN/CAN FD, 2x LIN, 1x Ethernet (10/100/1000 Base-TX), 2x digital in/out, USB 3.0 device, USB 2.0 host, and an SDXC slot
- Embedded platform with its own processing power — all applications run on the device itself; a PC is only required for configuration or data visualization
- Quick and easy configuration through ACT support — drag-and-drop setup via the Ixxat ACT tool; most use cases are covered by the free ACT Freeware edition
- Improved data management for efficient engineering — streamlined data handling and protocol management, optimized for automotive testing, logging, and gateway operation
- Overvoltage protection — galvanic isolation protects the device and connected equipment from electrical damage
- Support for Linux and QNX — the free ECI driver package integrates the hardware into Linux environments and QNX real-time applications, with support for 32-/64-bit ARM (including Raspberry Pi) and Intel x86 platforms
Documents and Drivers
Documentation
Mobilizer Standard 800 Datasheet
Mobilizer User Manual
Mobilizer Safety Leafet
E-mobility Brochure
Specifications
Parameter
Specification
CAN / CAN FD
8x CAN/CAN FD
LIN
2x LIN
Ethernet
1x 10/100/1000 Base-TX
Digital I/O
2x digital in/out (A/E)
USB
1x USB 3.0 (device), 1x USB 2.0 (host)
Storage
SDXC card slot
Host OS support
Linux and QNX real-time OS (via free ECI driver package)
Supported platforms
32-/64-bit ARM (incl. Raspberry Pi), Intel x86
Configuration software
Ixxat Advanced Configuration Tool (ACT); most use cases covered by ACT Freeware
D-Sub connectors
4x D-Sub 9
USB connectors
2x USB Type A, 1x USB Type C
Ethernet connectors
3x RJ45
Power connector
1x Phoenix MC 1.5-3-STF-3.81 BK (3-pole)
Isolation – D-Sub connectors
1 kV DC (1 s), 500 V AC/60 Hz (1 min)
Isolation – LAN connection
1.5 kVrms/60 Hz, 2.25 kV DC (1 min)
Overvoltage protection
Galvanic isolation
Input voltage
6 V to 36 V DC
Current consumption
620 mA at 12 V DC (nominal Vcc)
Net weight
2,200 g (4.85 lb)
Dimensions (W x H x D)
130 x 244 x 92 mm (5.12 x 9.61 x 3.62 in)
Operating temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Storage temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity
10-95%, non-condensing
Housing material
Aluminium
