MW5502C - 2-Port Wireless Industrial Modbus Serial to Modbus TCP Gateway
MW5502C - 2-Port Wireless Industrial Modbus Serial to Modbus TCP Gateway
Product Images

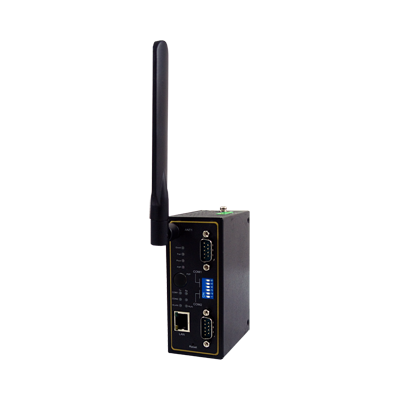

MW5502C - 2-Port Wireless Industrial Modbus Serial to Modbus TCP Gateway: DB9
$499.00
SKU: GC-ATOP-MW5502C
MPN: 1P1MW5502C0001G
Manufacturer: Atop Technologies Inc.
We Have You Covered
Product Information
Product Description
Diverse Hardware, Integrated Wireless, Serial and Ethernet
MW5502C Industrial Wireless Modbus Gateway provides a flexible platform to convert bi-directionally Modbus RTU/ASCII/TCP through wired and wireless Ethernet Networks. It supports IEEE802.11 b/g/n standards over 2.4GHz for Wireless connectivity, wired Ethernet through one RJ45 port and supports the four most commonly used communication standards in Serial: RS-232/485 and 422 on two DSub-9 or 5-Pin Terminal Block connectors.
The ease-of-use configuration utility provided can quickly select the hardware interface, and easily switch to the existing communication infrastructure.
Switching between Modbus Protocols
Modbus Gateway supports the standard Modbus protocol and is capable of converting any Modbus protocols between Modbus TCP, Modbus RTU, and Modbus ASCII for all supported hardware interfaces.
Modbus ID Routing
Modbus Gateway supports various types of hardware communication interfaces, Modbus protocol conversion, and Modbus ID routing. Therefore, the Modbus Gateway can integrate existing and complex Modbus hardware configuration into a simple easily managed network.
Order Summary
SKU | Serial Connector Option | Manufacturer Part # (MPN) |
GC-ATOP-MW5502C | DB9 | 1P1MW5502C0001G |
GC-ATOP-MW5502C-TB | TB5 | 1P1MW5502CTB01G |
Features
- Designed for 802.11 b/g/n networks, FCC (USA)
- 1 x 100BaseT(X) Fast-Ethernet RJ45 port
- 2 x Software-selectable RS-232/485/422 ports, D-Sub 9 or Terminal Block
- Bi-Directional Modbus TCP/RTU/ASCII conversion from Serial to Ethernet or Wireless and Vice-versa
- Advanced features include Virtual ID remapping, VirtualCOM mode, exception handling and many others
- Supports WiFi-Direct for Simple Peer Pairing
- Web server / Utility configuration
Documents and Drivers
Documentation
MW5502C Datasheet
MW5502C User Guide
MW5502C Hardware Installation Guide
MW5502C UKCA-Declaration of Conformity
Specifications
Network Interface
- Speed: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
- Connector Ports: 1x 10/100 BASE-TX RJ-45
Serial Connector
- D-Sub9 RS-232/422/485 software selectable (DB models)
- 5.08mm 5-Pin Terminal block RS-232/422/485 sw selectable (TB models)
Serial Mode
RS-232/422/485 software selectable
Serial Ports
2
Serial Baud Rate
110 ~ 921,600 bps software selectable
Serial Parity
None, Odd, Even, Space, Mark
Serial Data Bits
5, 6, 7, 8 software selectable
Serial Stop Bits
1, 2 software selectable
Serial Flow Control
None, Xon/Xoff, RTS/CTS
Wireless PCI-e Module
Atheros AR9382
Wireless Tx / Rx
1T1R MIMO (1 x 1 with MCS 0-7)
Wireless Standard Conformance
802.11b, 802.11g, and 802.11n
Wireless Operating Frequency
- 2.4Ghz
- United States (FCC): 2412-2462(20Mhz)/2422-2452(40Mhz)
Wireless Data Rate
- 802.11b: 1, 2, 5.5 and 11Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- 802.11n (20MHz bandwidth): 20MHz bandwidth: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
- 802.11n (40MHz bandwidth): 40MHz bandwidth: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Wireless Antenna (2.4GHz)
- Gain: 3 dBi
- Connector: SMA(R) Female
Wireless Output Power (2.4GHz)
802.11b: +14dBm
802.11g:
- +17dBm @ 6, 9, 12,18,24Mbps / +17dBm @ 36Mbps / +16dBm @ 48Mbps / +16dBm @ 54Mbps
802.11n 2.4GHz/HT20:
- +16dBm @ MCS 0 +16dBm @ MCS 4 +16dBm @ MCS 1 +16dBm @ MCS 5 +16dBm @ MCS 2 +16dBm @ MCS 6 +16dBm @ MCS 3 +15dBm @ MCS 7
802.11n 2.4GHz/HT40:
- +15dBm @ MCS 0 +15dBm @ MCS 4 +15dBm @ MCS 1 +15dBm @ MCS 5 +15dBm @ MCS 2 +15dBm @ MCS 6 +15dBm @ MCS 3 +14dBm @ MCS 7
Protocols
IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, SMTP, HTTP, DNS, NTP,
RADIUS, RFC2217, WPS, SysLog, Modbus TCP, Modbus RTU, Modbus ASCII
Wireless Security
WEP, WPA, WPA2, TKIP, AES, 802.1x
Configuration
Atop Management Utility, Web UI, Telnet, Serial Console
VirtualCOM
Windows/Linux redirection software
Modbus - TCP Client
Maximum 16 Modbus TCP client connections, Modbus RTU/ASCII via VirtualCOM
Modbus - TCP Server
Maximum 64 Modbus TCP connections; Modbus RTU/ASCII via VirtualCOM or reverse Telnet
Modbus - RTU/ASCII
Maximum 16 devices per COM port.
Power Input Voltage
9 - 48 VDC
Power Input Current
0.65 A @ 9 VDC
Power Consumption
Approximately 5.85 W (Max)
Power Connector
3-Pin 5.08mm Lockable Terminal Block
Reverse Polarity Protection
Yes
Enclosure
IP30 SPCC housing
Dimensions
47 mm x 110 mm x 90 mm (1.9 in x 4.3 in x 3.5 in)
Weight
500g (1.1 lbs)
Installation
IP30 SPCC housing
Reset Button
Yes
Wi-Fi Direct(P2P) Button
Yes
Temperature
- Operating: -10°C ~ 60°C (14°F ~ 140°F)
- Storage: -40°C ~ 85°C (-40°F ~ 185°F)
- Ambient Relative Humidity: 5%~95%, 55°C (Non-condensing)
