PCAN-GPS - A Programmable CAN Bus Sensor Module

$343.00

Leave a review

SKU: GC-CAN-GPS

MPN: IPEH-002110

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping
Best price guaranteed!* Learn more.
Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

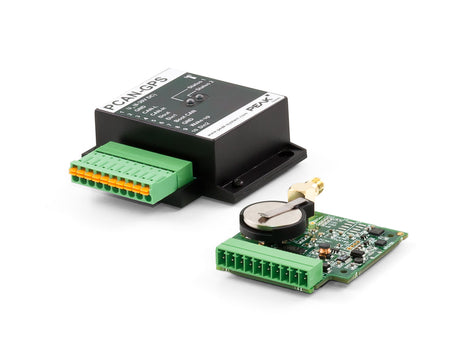

The PCAN-GPS is a programmable GPS CAN bus sensor module for determining position and orientation. Sampled data can be transmitted on a CAN bus and logged on the internal memory card.

The PCAN-GPS features the NXP LPC4000 series micro-controller.

This sensor includes

  • GPS satellite receiver
  • magnetic field sensor
  • accelerometer
  • gyroscope

The PCAN-GPS is shipped with Demo Firmware that transmits the raw data of the sensors periodically on the CAN bus. Custom firmware can be created using the supplied library and Yagarto GNU ARM tool-chain which contains the GNU Compiler Collection GCC for C and C++. Example source code is provided. With custom firmware there are many possibilities for manipulating, evaluating, filtering the sensor data, and for routing of the CAN traffic.

Firmware is downloaded into the unit over the CAN bus; users will need a Peak PC Interface, such as the PCAN-USB and a terminated CAN Cable to download their firmware into the PCAN-GPS.

Features

  • GPS Satellite Receiver
  • Magnetic field sensor
  • Accelerometer
  • Gyroscope
  • Demo firmware that transmits raw data of the sensors periodically on the CAN bus
  • Create custom firmware using supplied library and Yagarto GNU ARM toolchain


Package includes:

  • PCAN-GPS
  • Mating connector
  • External antenna
  • Preloaded Demo Firmware
  • Windows® development software (Yagarto GNU ARM toolchain, flash program)
  • DVD with library, programming examples and manual

Documents and Drivers

Documentation

PCAN-GPS User Manual

PCAN-GPS User Manual Appendix-Microcontroller

PCAN-GPS User Manual Appendix -Magnetic Field Sensor

PCAN-GPS User Manual Appendix - Gyroscope

PCAN-GPS User Manual Appendix - GNSS

PCAN-GPS User Manual Appendix - Antenna

Downloads

CAN Download Support
View the available Peak System downloads:

Specifications

Certifications

CE

Connector(s)

  • Phoenix 10-pole terminal strip
  • SMA Antenna Connector
  • Memory Card - microSD™ Slot (internal)

Controller(s)

NXP LPC4000 series (ARM Cortex-M4)

Dimensions

45 x 68 x 26 mm (without SMA connector)

EMC Directive

  • EN 61326-1:2013-07
  • EC directive 2004/108/EG

Enclosure

IP20 (IEC 60529)

Firmware

  • loaded via CAN interface
  • transfer via CAN requiring PEAK CAN interface

Has Isolation

336

Highspeed CAN

ISO11898-2 with bit rates from 40 kbits to 1Mbit

Humidity

Relative humidity: 15 - 90 %, not condensing

Included in Box

  • PCAN-GPS
  • Mating connector
  • External antenna
  • Preloaded Demo Firmware
  • DVD with library, programming examples and manual
  • Window development software (Yagarto GNU ARM toolchain, flash program)

Indicators LED

Status signaling

Input/Output

  • Input: 2 digital (high-active)
  • Output: 1 digital (low-side driver)

Interface(s)

  • Receiver for navigation satellites u-blox MAX-7W (GPS, Galileo, GLONASS, QZSS and SBAS)
  • Bosch MBC050 electronic 3-axis magnetic field sensor and 3-axis accelerometer
  • Gyroscope STMicorelectronics L3GD20

MPN

IPEH-002110

Power Consumption

Normal Operation:

  • 8 V: 100 mA
  • 12 V: 60 mA
  • 24 V: 30 mA
  • 30 V: 25mA


Sleep:

  • 60 μA

Specifications

CAN 1.0 A/B

Temperature Range

Operating:

  • -40ºC to 85ºC (-40ºF to 185ºF) (except button cell)
  • Button Cell: -20 - +60 °C (-5 to +140 °F)

Storage:

  • -40 - +85 °C (-40 to +185 °F) (except button cell)
  • Button Cell: -40 - +70 °C (-40 to +160 °F)

Transceiver

NXP TJA1041T, wake-up-capable

Voltage

8 V to 30 V
