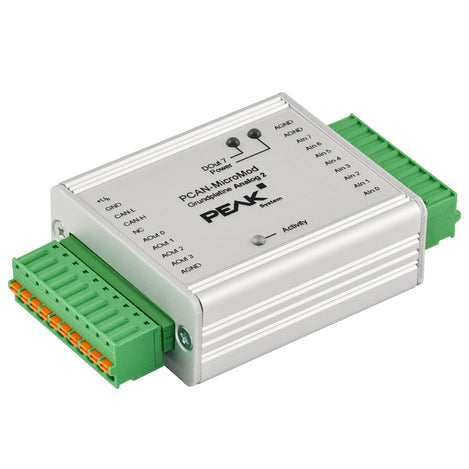

PCAN-MicroMod Analog 2 Angle

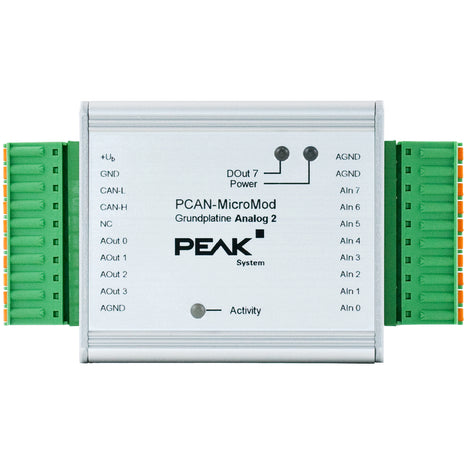

PCAN-MicroMod Analog 2 Top

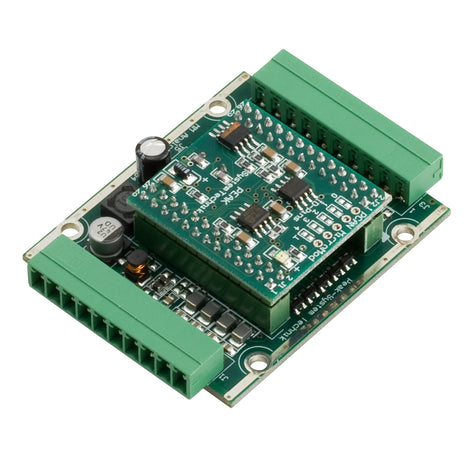

PCAN-MicroMod Analog 2 No Case
PCAN-MicroMod Analog 2
Product Images
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
We've Got You Covered
Product Information
Product Description

The MicroMod A2 Module is a packaged version of the MicroMod CPU. Since only a limited set of the Micromod's inputs and outputs can be brought out to the terminal blocks, several packaged versions are available in different configurations. The Analog 2 (A2) Version has a specific set of analog inputs and outputs. (See Specifications Tab)
NOTE:
Since the MicroMod is programmed and configured over the CAN network using the free PC software provided, a PEAK PC to CAN interface is required (sold separately). We recommend the CAN-USB adapter as the simplest interface to use for this purpose.
Documents and Drivers
Documentation
PCAN-MicroMod Analog User Manual
Downloads
PCAN-MICROMOD Configuration
CAN Download Support
View the available Peak System downloads:
Specifications
Highspeed CAN
Typical 500 kbit/s
Indicators LED
Power Supply & Digital Outputs
Input/Output
Inputs:
- 8 Analog Inputs
- Bipolar measurement range, high-resolution +/-10 V (16-bit)
- Protection against under- and overvoltages
Outputs:
- 4 Analog Outputs
- Voltage range 0 to 10 V (based on 8-bit PWM)
- Output current 20 mA per channel
- Short-circuit protection
MPN
IPEH-002207
Voltage
Operating: 11 to 30 V ± 5 % (without Aout 8 to 30 V)
