#{ '$' + (selectedVariant.price/100).toFixed(2) } $269.00

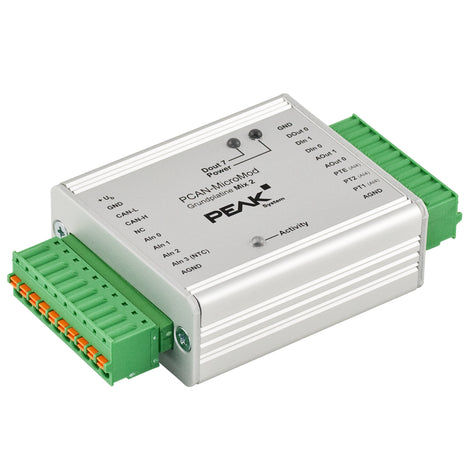

PCAN-MicroMod Analog / Digital Mix 2 Module

SKU: GC-CAN-MICROMOD-MIX2

MPN: IPEH-002203

Delivery: Ships in 5 to 7 business days

Availability: in stock

30 day Money Back Guarantee *Some Exceptions Apply

Warranty: 1 year Comprehensive support for all products

Authorized North America Distributor Stamp

Best price guaranteed!* Call now for volume and discounted price match information. Learn more.

---------------------------------------------------------------------

The MicroMod M2 Module is a packaged version of the MicroMod CPU. Since only a limited set of the Micromod's inputs and outputs can be brought out to the terminal blocks, several packaged versions are available in different configurations. The Mix 2 (M2) Version has a specific mixture of inputs and outputs. (See Features Tab)

NOTE:
Since the MicroMod is programmed and configured over the CAN network using the free PC software provided, a PEAK PC to CAN interface is required (sold separately). We recommend the CAN-USB adapter as the simplest interface to use for this purpose.

The Mix 2 (M2) Version has a specific mixture of inputs and outputs:


7 INPUTS:

  • 2 Digital Inputs with following properties:
        - Pull-up or pull-down circuit
        - Voltage swing 5 to 18 V
        - Schmitt trigger behavior, inverting
        - Low-pass behavior
        - Parallel connection of a frequency input (for each digital input 0 to 3) for alternative use
          (e.g. at fast changes of state, or at count)
  • 2 Temperature Inputs for connection of an NTC thermistor and a platinum sensor PT1000
        - measuring range each 0 to 70 °C (32 to 158 °F)
  • 3 Analog Inputs with following properties:
        - Pull-down circuit
        - Measuring range unipolar, 0 to 5 V
        - Measuring range extension possible
        - Protection against under voltage and over voltage


3 OUTPUTS:

  • 1 Digital Output with following properties:
        - fast low-side switches, max. 55 V, 0.75 A
        - Short circuit protection
  • 1 Analog Output with following properties:
        - Voltage 0 to 10 V using PWM at a resolution of 16 bits
        - Load ability: 15 mA, short-circuit proof
  • 1 Analog Output with current intensity 0 to 20 mA using PWM at a resolution of 16 bits

Status LEDs for power supply and digital outputs

Indicators led Power Supply & Digital Outputs
Inputs
  • 2 Digital Inputs with following properties:
        - Pull-up or pull-down circuit
        - Voltage swing 5 to 18 V
        - Schmitt trigger behavior, inverting
        - Low-pass behavior
        - Parallel connection of a frequency input (for each digital input 0 to 3)
          or alternative use (e.g. at fast changes of state, or at count)
  • 2 Temperature Inputs for connection of an NTC thermistor and a platinum
          sensor PT1000
        - measuring range each 0 to 70 °C (32 to 158 °F)
  • 3 Analog Inputs with following properties:
        - Pull-down circuit
        - Measuring range unipolar, 0 to 5 V
        - Measuring range extension possible
        - Protection against under voltage and over voltage
Mpn IPEH-002203
Outputs
  • 1 Digital Output with following properties:
        - fast low-side switches, max. 55 V, 0.75 A
        - Short circuit protection
  • 1 Analog Output with following properties:
        - Voltage 0 to 10 V using PWM at a resolution of 16 bits
        - Load ability: 15 mA, short-circuit proof
  • 1 Analog Output with current intensity 0 to 20 mA using PWM at a
          resolution of 16 bits

Documents:


PCAN-MicroMod Mix 2 User Manual (PDF)


Downloads:


PCAN-MICROMOD Configuration (ZIP)
