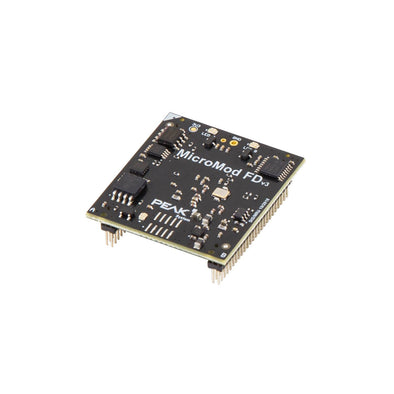

PCAN-MicroMod I/O OEM Module

$139.00

Leave a review

SKU: GC-CAN-MICROMOD-CPU

MPN: IPEH-002080

Manufacturer: PEAK-System

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

Best price guaranteed!* Learn more.


Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

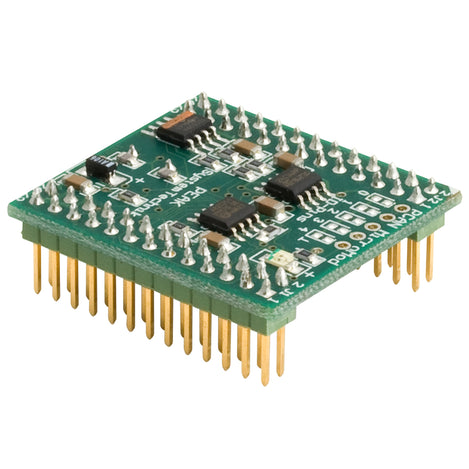

The MicroMod is a small(32 x 36 mm) module for OEM designs, it requires a single regulated 5 VDC power supply. The integrated firmware allows for simple configuration of the module with the Windows configuration software. No embedded programming skills are required. The configuration data is sent to the module via CAN. Up to 32 MicroMods can be integrated in a single CAN network. Each individual module can be addressed over the bus enabling to read, modify and store its configuration data.

Software:
The FREE Windows configuration software (Download Available) makes the following module configuration options available to the user:

  • The digital input levels can send periodically or following a signal level transition (rising edge, falling edge or both transitions).
  • Digital inputs can be logically connected (AND, OR, XOR, NAND, NOR, XNOR) with the results then displayed on the desired digital outputs and/or sent over the CAN bus.
  • Analog values can be converted by Scale-value and Offset-value and then processed further.
  • Adaptation of analog values is possible via characteristic curves.
  • Direct conversion of analog inputs to CAN-IDs is supported.
  • The rotary-switches (based on the rotary-encoder principle), which are standard in automotive applications, are supported directly.

Documents and Drivers

Documents:


PCAN-MicrorMod User Manual (PDF)


Downloads:


PCAN-MICROMOD Configuration (ZIP)


CAN Download Support:


View the available Peak System downloads:

Specifications

BAUD RATE

Up to 1 MBaud

DIMENSIONS

32 x 36 mm

INPUT/OUTPUT

Inputs:

  • 8 Analog Inputs, Vref 5V, 10-bit
  • 8 Digital Inputs

Outputs:

  • 8 Digital Outputs
  • 4 PWM/frequency Outputs

MPN

IPEH-002080

RANGE

Frequency Outputs: 1 Hz - 20 kHz
