CAN Mini PCI Express FD (PCAN-miniPCIe FD)

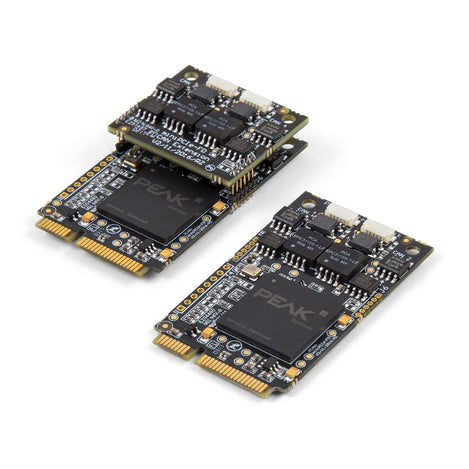

2 and 4 Channel PCAN-miniPCIe-FD

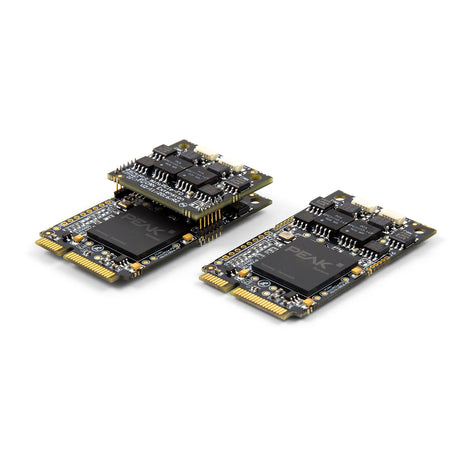

2 and 4 Channel PCAN-miniPCIe-FD

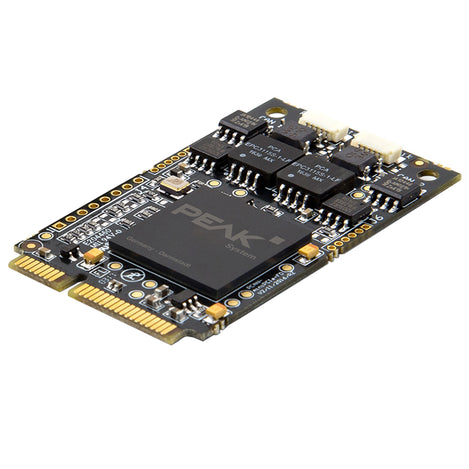

2 Channel PCAN-miniPCIe-FD Side

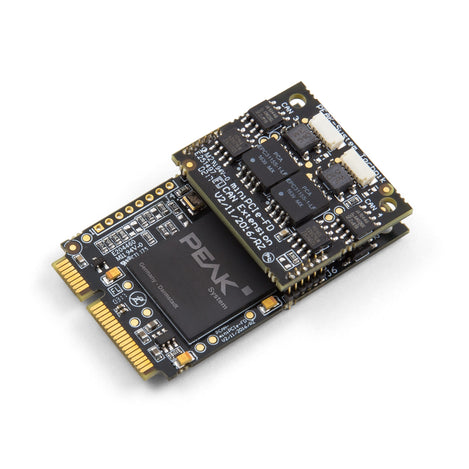

4 Channel PCAN-miniPCIe-FD Side

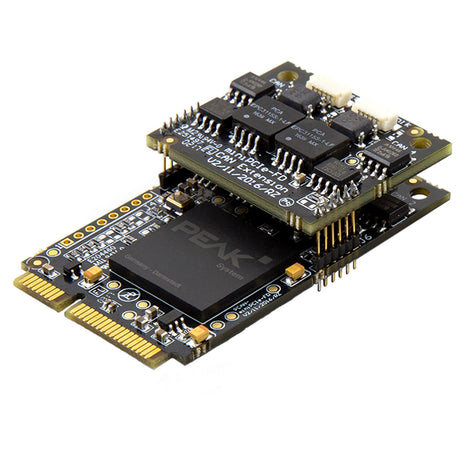

4 Channel PCAN-miniPCIe-FD Side

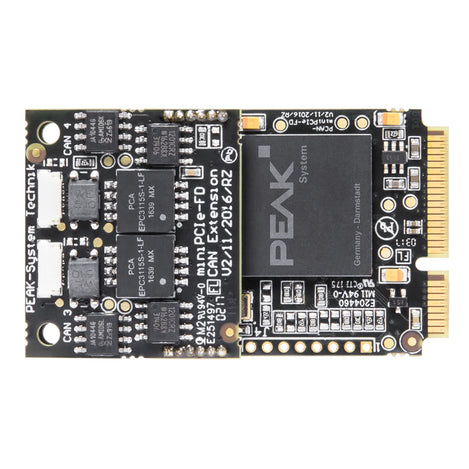

4 Channel PCAN-miniPCIe-FD Top

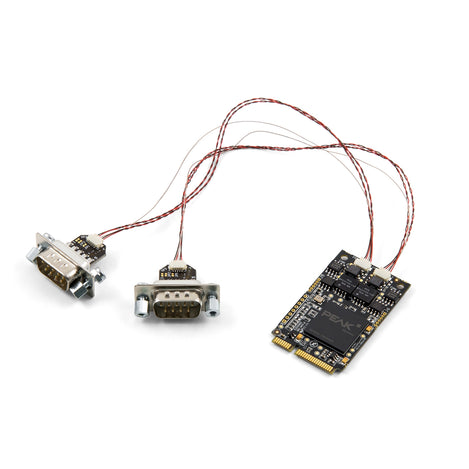

PCAN-miniPCIe-FD with cords
CAN Mini PCI Express FD (PCAN-miniPCIe FD)
Product Images
CAN Mini PCI Express FD (PCAN-miniPCIe FD): 1 Channel
$335.00
SKU: GC-CAN-MINI-PCI-E-1-FD
MPN: IPEH-004045
Manufacturer: Peak System Technik
Stock Status: In stock
Select Channels
-
$335.00
-
$405.00
-
$460.00
We Have You Covered
Product Information
Product Description
The PCAN-MiniPCIe FD enables a PC or laptop with Mini PCI Express slots to connect to a CAN FD or a classic CAN Network. When using the Flexible Data (FD) rate protocol, the PCI Express delivers higher bandwidth for data transfers at 64 data bytes per CAN FD frame and bit rates up to 12 Mbit/s.
This CAN Mini PCI Express FD card is available in single, dual, or four channel versions with galvanic isolation up to 300 volts.
This CAN FD version is downward compatible to the CAN 2.0 A/B standards and can be used in an existing CAN network.
Package Contents :
- PCAN Mini PCI Express FD card
- Connection cable (including D-Sub connector for each channel)
- Device Drivers for Windows® and Linux
- PCAN-View for Windows®
- PCAN-Basic for developing
- Programming interfaces for standardized protocols
- User manual (PDF format)
Order Summary
Images |
SKU |
Channel Options |
Manufacturer Part # (MPN) |
---|---|---|---|
1 Channel Image | GC-CAN-MINI-PCI-E-1-FD | 1 Channel / 300V Isolated | IPEH-004045 |
GC-CAN-MINI-PCI-E-2-FD | 2 Channels / 300V Isolated | IPEH-004046 | |
GC-CAN-MINI-PCI-E-4-FD | 4 Channels / 300V Isolated | IPEH-004047 |
Features
- Form factor PCI Express Mini (only for single and dual channel version)
- CAN bus connection via connection cable and D-Sub, 9-pin (in accordance with CiA® 303-1)
- FPGA implementation of the CAN FD controller
- CAN termination can be activated through a solder jumper, separately for each CAN channel
- PCIe data transfer via bus master DMA
- DMA memory access operations with 32- and 64-bit addresses
- Measurement of bus load including error frames and overload frames on the physical bus
- Induced error generation for incoming and outgoing CAN messages
Documents and Drivers
Documentation
PCAN Mini PCI Express FD User Manual
Downloads
Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway
Device Driver Setup - Outdated Windows Versions
PCAN-View
PCAN-Basic
PCAN-Basic for Linux
PEAK-System PCAN DOWNLOAD SUPPORT
Specifications
Baud Rate
12 Mbit/s
Channels
1, 2, or 4
Connector(s)
9-pin D-Sub (M) and Mini-PCIe
Dimensions
- Single Channel: 30 x 51 x 4 mm (W x L x H)
- Dual Channel: 30 x 51 x 4 mm (W x L x H)
- Four Channel: 30 x 51 x 12 mm (W x L x H)
EMC Directive
2014/30/EU
Highspeed CAN
1, 2, or 4 CAN Channels (ISO 11898-2)
Isolation
300 VDC
MPN
IPEH-004045, IPEH-004046, IPEH-004047
Pins
D-Sub : 9 pins
Power Consumption
- 1.5 VDC: Max 180 mA
- 3.3 VDC: Max 330 mA
Power Supply
1.5 V and 3.3 V
Product Weight
- Single Channel: 8 g
- Dual Channel: 8 g
- Four Channel: 11 g
- Cable & D-Sub: 16 g
Protocols
CAN FD ISO 11898-1:2015 , CAN FD non-ISO , CAN 2.0 A/B
Software
- Driver: Supports Windows 11 & 10
- Tools: PCAN-Basic for Windows®
Specifications
CAN: 2.0 A/B and FD
Temperature Range
- Storage: -40°C to +100°C (-40°F to +212°F)
- Operating: -40°C to +85°C (-40°F to +185°F)
Transceiver
CAN: NXP TJA1044GT
