PCAN-PCI Express FD: Dual Channel
PCAN-PCI Express FD: Dual Channel
Product Images
PCAN-PCI Express FD: Dual Channel
$379.00
SKU: GC-CAN-PCI-E-FD-2
MPN: IPEH-004027
Manufacturer: PEAK-System
Stock Status: In stock
Delivery: Ships same or next business day
Qualifies for Free shipping
Best price guaranteed!* Learn more.
Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description

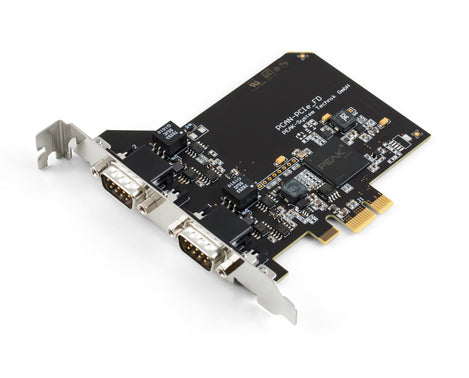

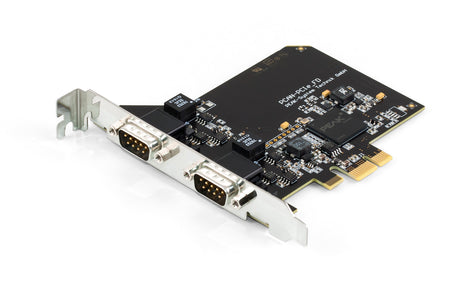

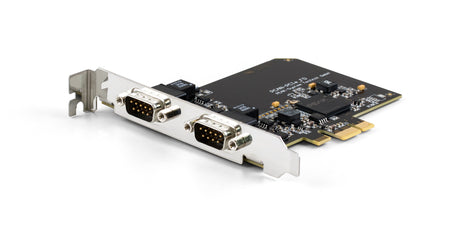

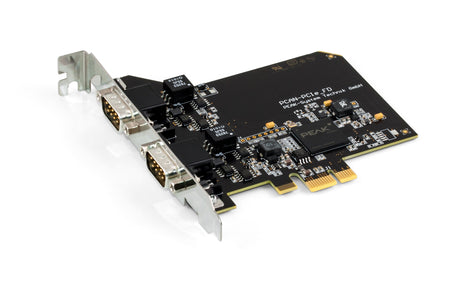

The PCAN-PCI Express FD with dual channels is able to connect a PC to a CAN FD or CAN network by using PCI Express slots. This card features 500 Volt galvanic isolation for between a computer and CAN channels.
The device is downward-compatible to CAN 2.0 A/B standard and can be used with existing networks.
The PCAN-PCI Express FD card with 2 channels offers the new CAN FD protocol that provides higher bandwidth for data transfers thus allowing up to 64 data bytes per CAN FD frame and transmiting the data payload with bit rates up to 12 Mbit/s.
Features
- PC plug-in card (PCIe x1) for PCI Express slots
- PCIe data transfer via bus master DMA
- DMA memory access operations with 32- and 64-bit addresses
- Extended operating temperature range -40 to 85 °C (-40 to 185 °F)
- 2 High-speed CAN channels (ISO 11898-2)
- Complies with CAN specifications 2.0 A/B and FD
- CAN FD bit rates for the data field (64 bytes max.) from 25 kbit/s up to 12 Mbit/s
- CAN bit rates from 25 kbit/s up to 1 Mbit/s
- Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
- CAN termination can be activated through a solder jumper, separately for each CAN channel
- Measurement of bus load including error frames and overload frames on the physical bus
- Induced error generation for incoming and outgoing CAN messages
- 5-Volt supply to the CAN connection can be connected through a solder jumper
- CAN FD support for ISO and Non-ISO standards switchable
- CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1)
- FPGA implementation of the CAN FD controller
- NXP TJA1044GT CAN transceiver
Documents and Drivers
Documentation
PCAN-PCI Express FD User Manual
Downloads
Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway
Device Driver Setup - Outdated Windows Versions
Device Driver Setup - Outdated Windows Versions
PCI-Express FD Package
PEAK-System PCAN DOWNLOAD SUPPORT
Specifications
Connector(s)
- PCI Express x1 (1 lane)
- D-Sub (m), 9 pins Pin assignment according to specification CiA® 303-1
Controller(s)
FPGA implementation
Dimensions
121 x 114 mm (H x W)
EMC Directive
- Directive 2014/30/EU
- DIN EN 55024:2016-05
- DIN EN 55022:2011-12
Highspeed CAN
2 High-speed CAN Channel (ISO 11898-2)
Humidity
15 - 90 %, not condensing, relative
Interface(s)
- PCAN-Basic
- CAN FD
MPN
IPEH-004027
Power Supply
Max. 200 mA, Max. 70 mA
Product Weight
66 g
Protocols
- CAN FD ISO 11898-1:2015
- CAN FD non-ISO
- CAN 2.0 A/B
Software
Supports Windows 11 & 10
Temperature Range
- Storage: -40 to 125 °C ( -40 to 257 °F)
- Operating: -40 to 85 °C (-40 to 185 °F)
Voltage
NXP TJA1044GT
