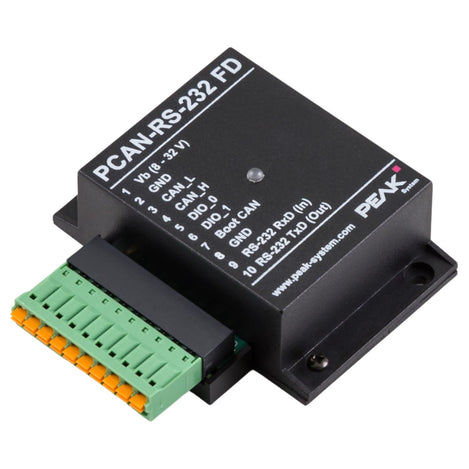

PCAN-RS-232 FD - Programmable RS232 CAN/CAN FD Converter

$222.00

Leave a review

SKU: GC-CAN-RS232-PGM-FD

MPN: IPEH-003120

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The PCAN-RS-232 FD is a programmable converter between RS-232 and CAN FD (compatible with classic CAN). It enables integration of machines, PLCs, sensors, and actuators with serial interfaces into CAN or CAN FD networks.

Default Firmware

The device ships with standard firmware that forwards data between CAN FD and RS-232 in both directions. Configuration of data transfer and hardware settings is done via serial control commands. The source code for the default firmware is included as a reference.

Requirements

NOTE: PEAK CAN interface (sold separately) required for firmware upload via CAN.


Package Contents

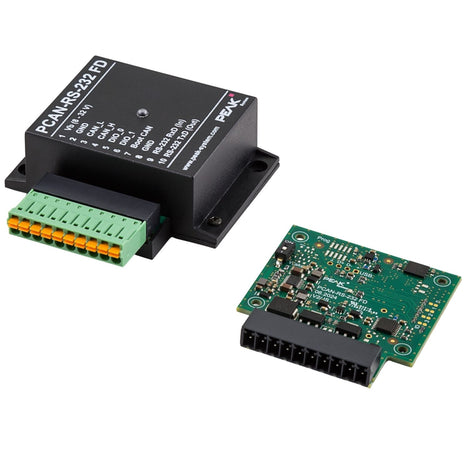

  • PCAN-RS-232 FD in plastic casing including mating connector (Phoenix Contact FMC 1,5/10-ST-3,5 - 1952348)
  • Windows® development package with GCC ARM Embedded and programming examples
  • Flash program PEAK-Flash for Windows® 11 (x64/ARM64), 10 (x64)
  • Manual in PDF format

Features

  • Bidirectional conversion between RS-232 and CAN FD
  • Fully programmable firmware (C/C++ using GNU compiler)
  • Firmware upload via CAN
  • Example projects included

Documents and Drivers

Documentation

PCAN-RS-232 FD User Manual

Specifications

CONNECTORS

Spring terminal block

10-pin, pitch 3.5 mm Phoenix Contact FMC 1,5/10-ST-3,5 - 1952348

JTAG “Prog” on the PCB

10-pin in two rows, pitch 50 mil (1.27 mm), not equipped

DIGITAL I/Os

Quantity

2 (combined inputs and outputs)

I/O as input:

Input type

High-active (internal pull-up), inverting

Maximum input frequency

3 kHz

Input switching thresholds

Low → High: U ≥ 2.6 V High → Low: U ≤ 1.3 V

Maximum input level

60 V

Internal resistance

> 33 kΩ

I/O as output:

Output type

Low-side driver

Maximum voltage at load

60 V

Maximum output current

0.7 A

Short-circuit current

1 A

Internal resistance

0.55 Ω

POWER SUPPLY

Supply voltage

(Ub) 8 to 32 V DC

Maximum current consumption

8 V: 60 mA 12 V: 40 mA 24 V: 15 mA 30 V: 12 mA

Current consumption Sleep

70 μA

CAN

Specification

High-speed CAN channel (ISO 11898-2) complies with CAN specifications 2.0 A/B and FD

Bit rates

Nominal: 40 kbit/s to 1 Mbit/s CAN FD data: 40 kbit/s to 10 Mbit/s*

Transceiver

NXP TJA1043

Internal termination

can be activated via solder jumper

Listen-only mode

Programmable; not activated at delivery

Wake-up

Sleep/Wake via CAN Switching to permanent On via DIP switch Wake-up-sources separately readable

* According to the CAN transceiver data sheet, only CAN FD bit rates up to 5 Mbit/s are guaranteed with the specified timing.

RS-232

Transceiver

Texas Instruments TRSF3221EIPWR

Maximum transfer rate

1 Mbit/s

ESD protection

± 30 kV

MICROCONTROLLER

CPU NXP LPC54618J512ET180, Arm®-Cortex®-M4-Core

NXP LPC54618J512ET180, Arm®-Cortex®-M4-Core

Crystal clock frequency

12 MHz

Internal clock frequency

max. 180 MHz (programmable via PLL)

EEPROM

MicroChip Technology 24LC08BHT-I/OT, 8 kbit

QSPI

ISSI IS25LP064A-JKLE

Firmware upload

via CAN (PCAN interface required)

MEASURES

Size

Casing: 68 x 57 x 25.5 mm (2.7 x 2.2 x 1.0 in) (W x D x H)

Circuit board: 51 x 54 mm  (2.0 x 2.1 in) (W x D)

Weight

32 g  (0.07 lb)

ENVIRONMENT

Operating temperature

-40 to +85 °C (-40 to +185 °F)

Storage & transport temperature

-40 to +85 °C (-40 to +185 °F)

Relative humidity

15 to 90 %, not condensing

Ingress protection (IEC 60529)

IP20

CONFORMITY

RoHS

EU Directives 2011/65/EU (RoHS 2) + 2015/863/EU DIN EN IEC 63000:2019-05

EMV

EU Directive 2014/30/EU DIN EN 61326-1:2022-11
