PCAN-USB X6 - 6 Port CAN USB Adapter
PCAN-USB X6 - 6 Port CAN USB Adapter
Product Images

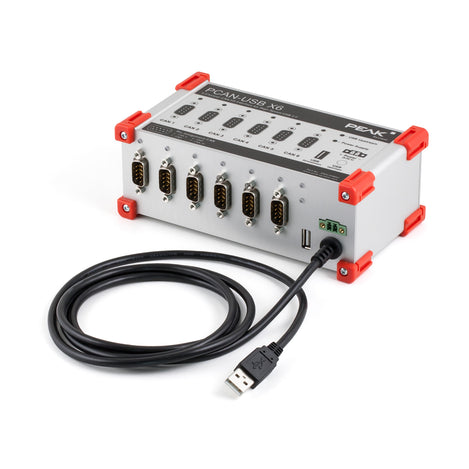

PCAN-USB X6 - 6 Port CAN USB Adapter: CAN USB 6 FD
$1,045.00
SKU: GC-CAN-USB-6-DB9-FD
MPN: IPEH-004062
Manufacturer: Peak System Technik
Stock Status: In stock
Select Version Type
-
$1,045.00
-
$1,085.00
-
$1,205.00
We Have You Covered
Product Information
Product Description
The PCAN-USB X6 is a USB adapter allowing up to six connections for the CAN FD or CAN busses to a USB or M12 port. This device is great when working with multiple connections which makes it excellent for use in test benches with hardware-in-the-loop (HIL) simulations. The X6 has a rugged aluminum case with D-Sub connectors and can be purchased with either isolated or non-isolated D-Sub connectors or isolated M12 connectors.
The CAN FD standard offers a higher bandwidth for data transfers allowing for a maximum of 64 data bytes per frame and can transmit up to 12 MBit/s. The CAN FD is also downward compatible to the CAN 2.0 A/B standard allowing CAN FD nodes to be used in current CAN networks. However, CAN 2.0 A/B devices cannot be used on a CAN FD network.
NOTE: A power supply unit is NOT included, and the adapter cannot be powered by the USB.
Order Summary
SKU |
Isolation/Connectors |
Cables |
Manufacturer Part # (MPN) |
---|---|---|---|

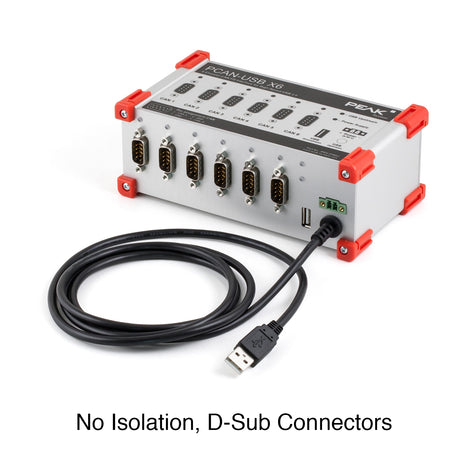

GC-CAN-USB-6-DB9-FD | No Isolation, D-Sub Connectors | Attached USB Cable | IPEH-004062 |

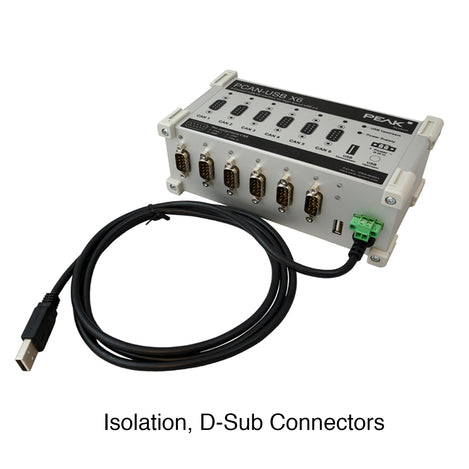

GC-CAN-USB-6-DB9-FD-ISO | Isolation, D-Sub Connectors | Attached USB Cable | IPEH-004064 |

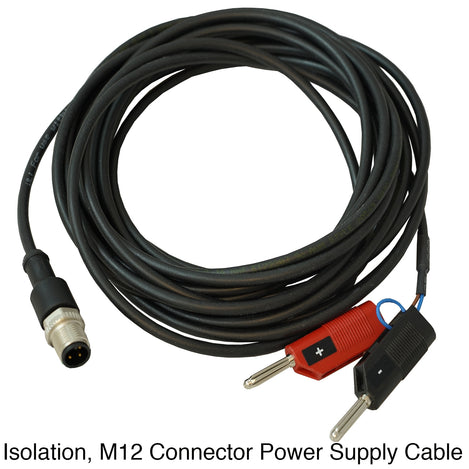

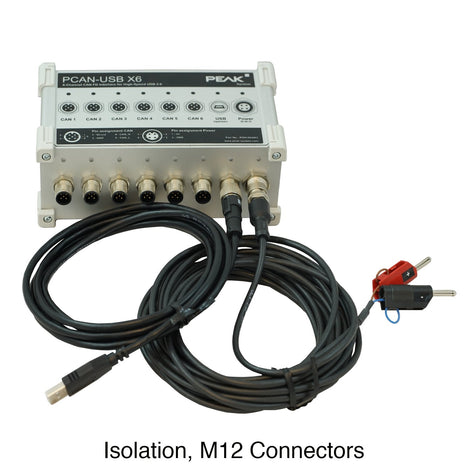

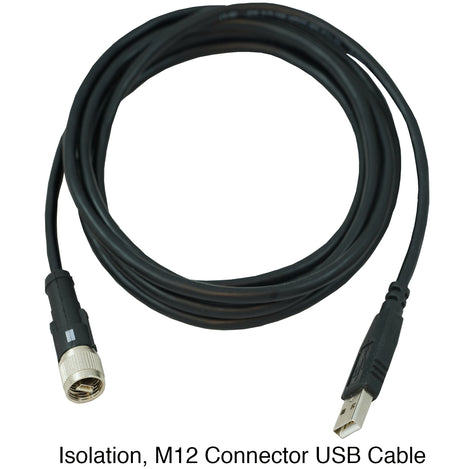

GC-CAN-USB-6-M12-FD | Isolation, M12 Connectors |
|
IPEH-004063 |
Features
- Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0)
- 6 High-speed CAN channels with pluggable NXP TJA1044GT transceiver modules.
- Isolation option available with 300 V
- Complies with CAN specifications 2.0 A/B and FD
- Both ISO-CAN FD and Non-ISO-CAN FD standards are supported and switchable
- CAN FD bit rates for the data field (64 bytes max.) from 25 kbit/s up to 12 Mbit/s
- CAN bit rates from 25 kbit/s up to 1 Mbit/s
- Time stamp resolution 1 µs
- FPGA implementation of the CAN FD controller
- Status LEDs for CAN channels, USB upstream, and external power supply
- D-Sub CAN or M12 connectors
- CAN termination can be activated through a solder jumper, separately for each CAN channel
- Measurement of bus load including error frames and overload frames on the physical bus
- Induced error generation for incoming and outgoing CAN messages
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Documents and Drivers
Documentation
PCAN-USB X6 User Manual
Downloads
Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway
Device Driver Setup - Outdated Windows Versions
PEAK-System PCAN DOWNLOAD SUPPORT
Specifications
CAN FD
567
CAN GW Connector Type
546
Connetor(s)
- D-Sub or M12 connector
- High Speed USB 2.0
Controller(s)
CAN FD controller
Enclosure
Aluminum case
Highspeed CAN
6 High-speed CAN channels
Indicators LED
Status of CAN channels, USB upstream, and external power supply
MPN
IPEH-004062, IPEH-004064, IPEH-004063
Power Consumption
Without USB device on the USB downstream: max. 350 mA at 12 V DC via power supply connector, 0 mA via USB upstream
Product Weight
550 g (1.2 lbs)
Software
Supports Windows 11 & 10
Temperature Range
-40°C to +85°C (-40°F to +185°F)
Transceiver
NXP TJA1044GT
Voltage
12 V DC, 8 up to 30 V DC possible
