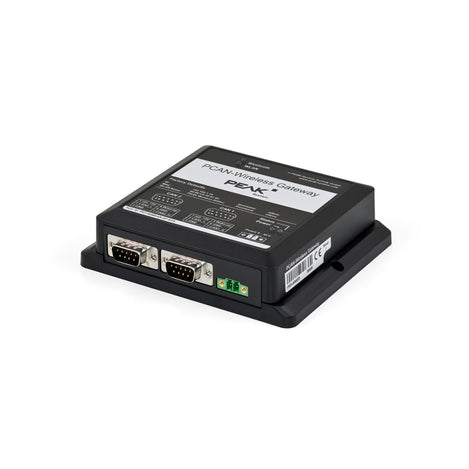

PCAN Wireless Gateway: D-Sub

4.0 stars 4.0 (1) See customer reviews

SKU: GC-CAN-WIRELESS-GW

MPN: IPEH-004020

Manufacturer: Peak System Technik

Connector Type

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The PCAN-Wireless Gateway is used to connect CAN busses through IP networks with one WLAN connection and two high-speed CAN interfaces. The module operates with two D-Sub connectors or one Tyco automotive connector. The CAN frames are wrapped in TCP or UDP message packets and forwarded via the IP net from one device to another.

There are three options for operating the gateway; PCAN Wireless Gateway to PCAN Wireless Gateway, PCAN Wireless Gateway to Virtual Gateway Software, or a PCAN Wireless Gateway to a custom program of TCP/UDP socket application.

When operating PCAN Wireless Gateway to PCAN Wireless Gateway the connection of the CAN busses is by WLAN network and configuration of the routes is done via web interface.

The PCAN Wireless Gateway to Virtual PCAN Software provides access for Windows computers to devices over IP networks. With this option, the module is configured with two routes; one for receiving CAN data and one for sending data. Within the web interface, two matching routes are configured for sending and receiving data between the PC's IP address and PC.

Operating between PCAN Wireless Gateway and PC via TCP/UDP sockets allows for communication with a socket interface of the remote site. A custom application can be written using standard TCP/UDP sockets (such as with Windows, Linux, and Android). For sending data to the PCAN-Wireless Gateway, the custom application acts as a client to open a connection to the server port on the device. For receiving data from the Gateway, it acts as a client and opens a connection to a server port of the custom application.

Order Summary



SKU

Connector Type

Manufacturer Part # (MPN)
GC-CAN-WIRELESS-GW D-Sub IPEH-004020  (DISCONTINUED)

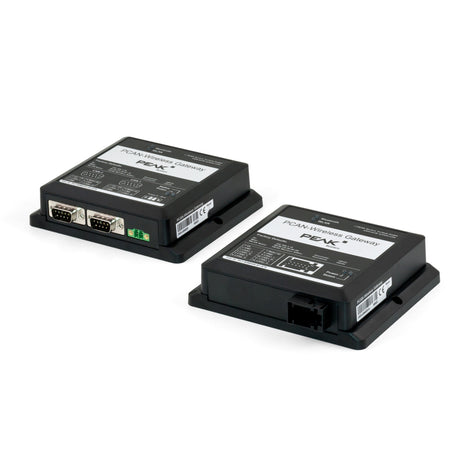

GC-CAN-WIRELESS-GW-A Automotive IPEH-004020-A (DISCONTINUED)

Features

  • ARM9 Freescale iMX257 with 16 kByte Level 1 Cache and 128 kByte internal SRAM
  • 256 MByte NAND Flash and 64 MByte DDR2 RAM
  • Linux operating system (version 2.6.31)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102) or via automotive connector, 12-pin (Tyco)
  • Reboot and reset of the device to factory defaults with a reset button
  • Wake-up function using CAN bus or separate input
  • Configuration of the network interfaces and the message forwarding through a web interface
  • LEDs for device status, WLAN, and power supply


Wireless Properties

  • WLAN IEEE 802.11 b/g
  • Internal chip antenna
  • Data transmission using TCP or UDP
  • Bluetooth 2.1 + EDR, Class 1 (reserved for future use)


CAN Properties

  • Two High-speed CAN channels (ISO 11898-2)
  • Bit rates from 40 kbit/s up to 1 Mbit/s
  • TJA1041 CAN transceiver
  • Compliant with CAN specifications 2.0A and 2.0B

Documents and Drivers

Documentation

PCAN-Ethernet Gateway DR Manual

PCAN-Gateway Quick Start

Virtual PCAN-Gateway Manual

PCAN-Gateway Developer Documentation

Downloads

Virtual PCAN-Gateway Setup
PEAK-System installation package for device drivers and tools for Windows® 10, 8.1, 7 (32/64-bit) for PEAK PC interfaces.

Included tools: PEAK-CPL, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway

Please note: Select the Virtual PCAN-Gateway from the available options during the installation.

PCAN-Ethernet Gateway DR Package
This package is used to update the software and configuration website of the PCAN-Ethernet Gateway DR (IPEH-004010).

PEAK-System PCAN Download Support

Specifications

Antennas

Internal chip antenna

Connector(s)

  • D-Sub Option: 9-pin (in accordance with CiA® 102)
  • Tyco Automotive Option: 12-pin (Tyco)

Dimensions

130 mm x 110 mm

Enclosure

Plastic casing with flange

Included in Box

  • PCAN-Wireless Gateway in plastic casing
  • D-Sub Connector Option: Mating connector for voltage supply
  • Tyco Automotive Option: Tyco mating connector including crimp contacts
  • Manual in PDF format
  • Printed quick start guide

Indicators LED

WLAN and power supply

Memory

  • ARM9 Freescale iMX257 with 16 kByte Level 1 Cache and 128 kByte internal SRAM
  • 256 MByte NAND Flash and 64 MByte DDR2 RAM

MPN

IPEH-004020, IPEH-004020-A

Power Supply

Voltage supply from 8 to 30 V

Product Weight

1 lb

Protocols

2 high-speed CAN channels (ISO 11898-1)

Supported OS

Linux version 2.6.31

Temperature Range

-40ºC to 85ºC (-40ºF to 185ºF)
