PCAN-XL Starter Kit, CAN XL to USB: 2 PCAN-XL units

$1,899.00

Leave a review

SKU: GC-CAN-USB-XL-SB-2

MPN: IPEH-005002

Manufacturer: Peak System Technik

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

PCAN-XL units

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The Complete Entry Point into CAN XL

Unlock the next generation of CAN communication with the PCAN-XL Starter Kit from PEAK-System, a trusted leader in CAN technology. Designed for developers, engineers, and testers, this bundle offers everything you need to evaluate and work with the new CAN XL standard—right out of the box.



What's Included

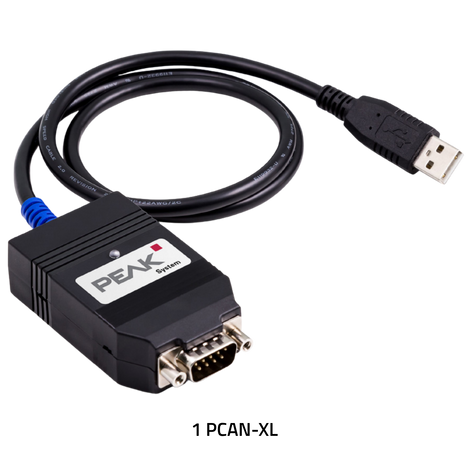

  • 1x or 2x PCAN-XL

    • Galvanic isolation up to 500 V for electrical protection

    • Compact, durable plastic housing - perfect for portable or field use

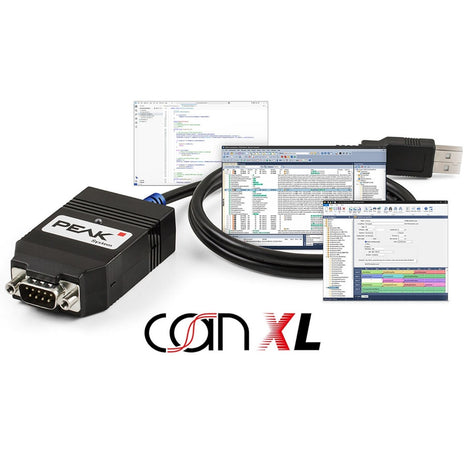

  • PCAN-Explorer 7 (Early Access Edition)

    • Professional CAN analysis software with CAN XL support

    • Includes USB dongle for license protection

    • Automatically upgraded to full PCAN-Explorer 7 license upon release

  • PCAN-Basic API

    • Comprehensive programming interface for custom applications

    • Supports CAN CC, CAN FD, and CAN XL

    • Includes examples and documentation

  • Drivers & Documentation

    • Device drivers for Windows® 11 (x64/ARM64) and Windows® 10 (x64)

    • Programming interfaces for standardized automotive protocols

    • PDF user manual included


Why PCAN-XL?

The PCAN-XL is your gateway to reliable and high-speed communication with CAN XL networks:

  • Supports CAN XL, FD, and Classic CAN

  • Up to 2048 bytes payload per CAN XL message

  • Data rates up to 20 Mbps

  • 500V galvanic isolation protects your PC and system

  • Compact and mobile-friendly housing – ideal for field work


Perfect for Getting Started with CAN XL

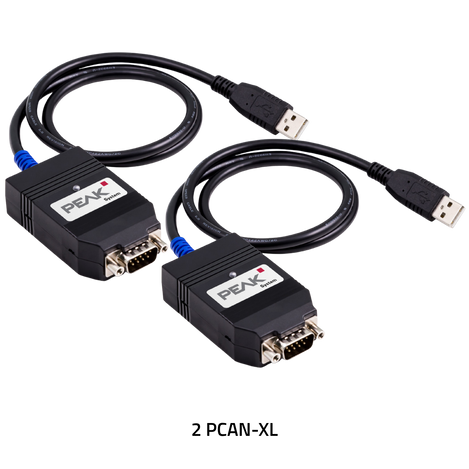

Because CAN XL communication requires at least two devices, this kit is offered with either 1 or 2 PCAN-XL interfaces, allowing you to simulate and test bi-directional communication, even without another CAN XL-enabled device.


About CAN XL

CAN XL (Controller Area Network eXtended Length) bridges the gap between traditional CAN and Automotive Ethernet. Designed for bandwidth-intensive applications like ECU flashing, CAN XL offers:

  • Payload capacity up to 2048 bytes per message

  • High-speed data rates up to 20 Mbps

  • Improved flexibility for mixed network environments


Pin Assignment D-Sub

PCAN-XL Pin Assignement D-Sub diagram

2 CAN-L
3 GND
6 GND
7 CAN-H



Start your CAN XL development journey with confidence - with the PCAN-XL Starter Kit from PEAK-System - and take control of tomorrow’s vehicle and automation networks.



Order Summary

 SKU Interface Option Manufacturer Part # (MPN)
GC-CAN-USB-XL-SB-1 1 PCAN-XL unit IPEH-005001
GC-CAN-USB-XL-SB-2 2 PCAN-XL units IPEH-005002

Features

  • CAN interface for High-speed USB 2.0 (compatible to USB 3.0)
  • High-speed CAN connection (ISO 11898-2 2024)
    • Complies with CAN specifications CAN CC (classic CAN 2.0), CAN FD, and CAN XL (ISO 11898-1 2024)
    • CAN bit rates from 20 kbit/s up to 1 Mbit/s
    • CAN FD data bit rates up to 8 Mbit/s
    • CAN XL data bit rates up to 8 Mbit/s, CAN FD compatible transmission mode
    • CAN XL data bit rates up to 20 Mbit/s by using the transceiver mode switch
    • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
  • Time stamp resolution 1 µs
  • FPGA implementation of the CAN XL core by PEAK-System;
    Validated with the CAN XL Evaluation Board by C&S (www.cs-group.de)
  • CAN SIC XL transceiver TI TCAN6062V
  • Galvanic isolation up to 500 V
  • CAN termination can be activated through solder jumpers
  • Voltage supply via USB
  • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)


Includes early access to PCAN-Explorer 7. Software features include:

  • Connection with up to 16 CAN channels
  • Simultaneous connections with multiple CAN interfaces independent of their hardware type
  • Support for the CAN specifications CAN CC (classic CAN 2.0), CAN FD, and CAN XL (ISO 11898-1 2024)
  • Support for CAN XL operation modes:
    • CAN XL with error signaling
    • CAN XL without error signaling
    • CAN XL with transceiver mode switch
  • Display of the CAN traffic in receive and transmit lists with various information
  • Configurable, readable representation of CAN messages
  • Manual and periodic message transmission
  • Creating CAN XL send messages with selection of an SDT (service data unit type) according to CiA® 611-1, such as tunneling of CAN FD frames
  • Logging of the CAN data traffic with tracers
  • Playback of trace files with optional loop function
  • Multiple flexible filters, also usable for trace files
  • Management of settings, information, and files in projects
  • Export of entire projects for archiving or sharing
