Product Description

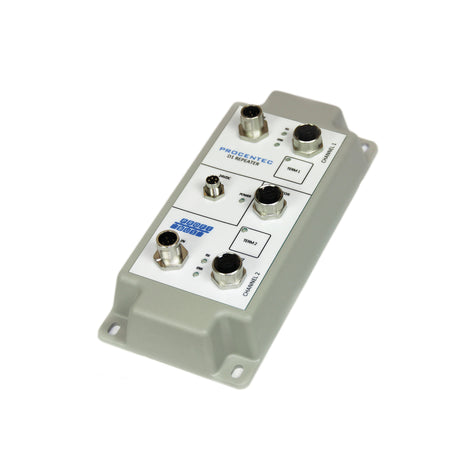

The PROFIBUS D1 Repeater provides M12 connections for PROFIBUS DP networks in harsh IP66 environments where dust and water are present. This robust repeater provides an isolated RS 485 interface for all PROFIBUS DP baud rates including 12 Mbps. An unlimited number of D1 repeaters may be cascaded with no degradation to the network. Both segments have on-board switchable termination and are able to drive 31 devices while constantly monitoring data and filtering out possible glitches.
This UL-listed device also offers flexibility when wiring PROFIBUS DP cable with M12 connectors, allowing the channels to be terminated or daisy-chained to neighboring components. An extra M12 connector is provided on the outgoing channel for easier maintenance or engineering tool connections. Power is provided to the repeater though an M8 connector.
With these capabilities, the PROFIBUS D1 is a necessary component for PROFIBUS DP networks in need of IP66 protection.
Features
- Single channel PROFIBUS repeater
- Suitable for PROFIsafe and MPI
- Transparent for all PROFIBUS DP protocols
- Max. 12 Mbps
- Auto baudrate detection
- IP 66
- Digital glitch filtering
- No limit in cascading
- On-board switchable termination
- Diagnostic LEDs
- M12 connector for measurements
- Horizontal or vertical mounting
Documents and Drivers
Documentation
PROFIBUS D1 Repeater User Manual
PROFIBUS D1 Repeater Datasheet
Downloads
Procentec DWG Drawing
Specifications
Baud Rate
9.6 kbps to 12 Mbps (including 45, 45 kbps) automatic detection
Cable Length
- 1200 m at 9.6 kbps to 93, 75 kbps
- 1000 m at 187 , 5 kbps
- 400 m at 500 kbps
- 200 m at 1, 5 Mbps
- 100 m at 3 Mbps to 12 Mbps
Cascading Depth
No limits
Connector(s)
M12 connector
Dimensions
169 x 79 x 42 mm
Indicators LED
Diagnostic LEDs
Interface(s)
RS 485 interface
Mounting
Horizontal or vertical mounting
MPN
16121
Power Consumption
Max. 125 mA at 24 Vdc
Power Supply
12 to 24 VDC
Product Weight
500 g (17.6 oz)
Protocols
DP-VO, DP-V1, DP-V2, FDL, MPI, FMS, PROFIsafe, PROFIdrive, and any other FDL based protocols
Storage Specifications
Non-hazardous area that complies with IP 66 (DIN 40 050)
Switch Option
Integrated termination switch
Temperature Range
-25ºC to +70ºC (-13ºF to +158ºF)
Voltage
12 to 24 VDC
