ProfiCaptain - ProfiBus Master Software
ProfiCaptain - ProfiBus Master Software
Product Images
ProfiCaptain - ProfiBus Master Software: I need a Proficore Ultra
SKU: GC-DETECT-PB-CAPT2-HW-SW
MPN: 34021
Anybus Diagnostics
Qualifies for free shipping to the continental US
Stock Status: In stock
Product Description
ProfiCaptain is a PC based PROFIBUS DP master that has been designed for applications like: I/O tests, commissioning, parameterization and demonstrations. It fills the gaps that other products leave open and makes working with PROFIBUS a lot easier, faster and more fun.
Test and evaluate your wired device-I/O easy and quick with ProfiCaptain

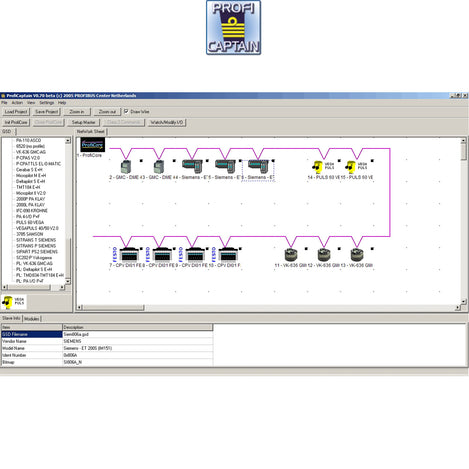

The main platform is a configuration environment in which the user sets up slaves with the respective modules and parameters. After setting up the network, the user puts them online without compilation or download. The I/Os can simply be watched and manipulated.
If needed, class 2 functions can be used on all addresses in the network, even if they are not configured or belong to another master.
ProfiCaptain is integrated in ProfiTrace 2
Order Summary
SKU |
Option |
Delivery Method |
Manufacturer Part # (MPN) |
|---|---|---|---|
| GC-DETECT-PB-CAPT2-SW |
Serial number of Proficore will be needed to download. |
Download next business day from https://procentec.com/licenses | 22020 |
|
GC-DETECT-PB-CAPT2-HW-SW |
|
Ships next business day | 10020, 22020 |
Features
- Must be ordered with ProfiTrace 2.
- Slave "Stealing": "Steal" slaves from other masters without removing them from the bus or shutting the masters down.

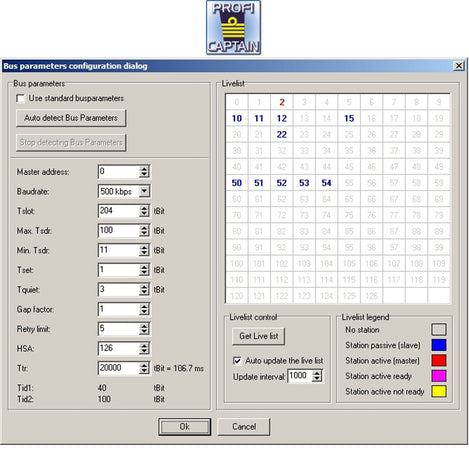

- Automatic Detection: Detects Bus parameters (Tslot, MaxTSDR, Tset, etc), Suggested master address, Dynamic Live List, Baud rate (all baud rates supported: 9.6 kbps - 12 Mbps), Prevents accidental shutdowns

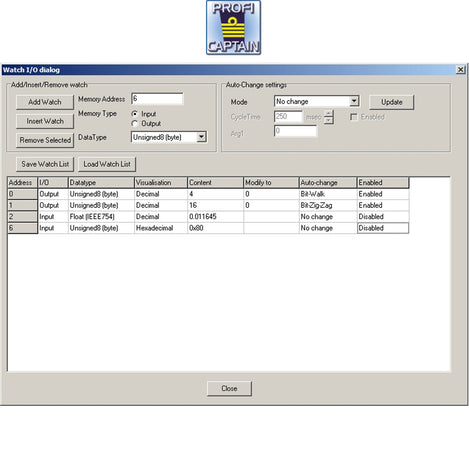

- I/O Testing: Watch I/O and modify I/O on selectable variable types (Boolean, hex, decimal, float, etc), Automatic patterns (bit walks, zig-zags and counters)

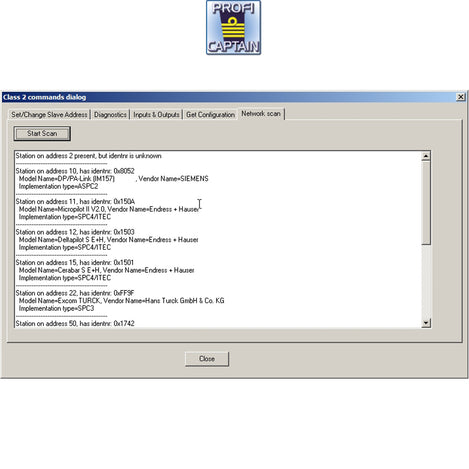

- Acyclical Class 2 Functions: Works on all addresses (even if they are not configured or belong to another master), Set Slave Address, Read Inputs/Outputs (of every slave in the network), Get Configuration, Get Diagnostics, Automatic identification of all the slaves in the network (address, product name and Ident Number)
- Configuration Software: User friendly interface, Easy network creation with advanced GSD import. No shutdowns when updating the configuration
- Deactivate Slaves: Deactivate slaves in the configuration when they are not required
Application Areas:
- I/O testing and address setting for cabinet builders
- Manual override for process operators
- Product testing for integrators and manufacturers
- Product evaluation
- Product demonstration
- Education
Documents and Drivers
Downloads
Software & Firmware
Registration on PROCENTEC’s website is required to download items.
Specifications
MPN
22020
