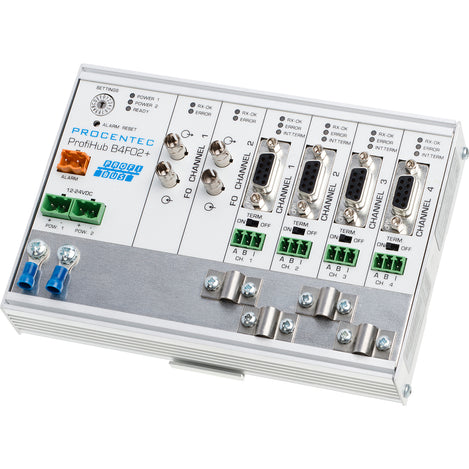

ProfiHub B4FO2 - Profibus RS485 to Fiber Optic Hub Angle Image

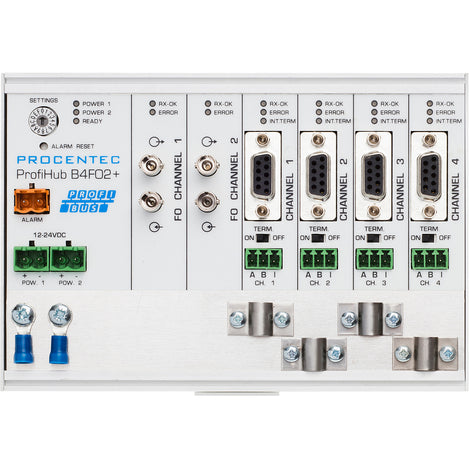

ProfiHub B4FO2 - Profibus RS485 to Fiber Optic Hub Front Image
ProfiHub B4FO2+ - PROFIBUS Fiber Optic to RS485
Product Images
ProfiHub B4FO2+ - PROFIBUS Fiber Optic to RS485
$2,154.00
SKU: GC-PB-PROFIHUB-B4-FO2
MPN: 17420
Manufacturer: Anybus Diagnostics
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The ProfiHub B4FO2+ can be utilized as a means of creating fiber optic backbone structures and long multi-device star/tree segments. This device can support multiple fiber optic topologies such as point-to-point, star, and bus.
A new additional feature is the integrated micro ProfiTrace diagnostic unit.
Some applications have strict rules regarding spur lines or star segments due to potential communication errors caused by reflections, which can be quite expensive to resolve with repeaters. The ProfiHub B4F02+ is a cost-effective solution that can assist in establishing reliable spur lines in high speed DP networks. It is transparent for all PROFIBUS DP protocols.
The ProfiHub B4FO2+ comes with 4 galvanic isolated RS 485 channels, which enable the extension of network structures to a maximum of 31 devices per channel and a length equivalent to the main bus. Devices can be added or removed easily because the ProfiHub B4F02+ creates isolated segments.
Installation is extremely simple with the product’s DIN-rail mountable metal housing as well as its integrated termination that can be switched on/off. In addition to this, direct or capacitive grounding can be selected at the user’s discretion. Each ProfiHub is powered by a 12-24 DC Voltage. The ProfiHubs come with LEDs built into the outside of the device in order to indicate the status of each channel, making troubleshooting and maintenance much easier.
Application Areas
- Create Fiber Optic backbones
- Dynamic spur lines to actuators, flow meters, and pH analyzers
- Removable drives and motors
- Pull/Plug motor control centers (drawers)
- Roof mounted devices in tank farms
- Barrier for non-galvanic isolated equipment
- Networks with requirement for High Availability/uptime
- Large star/tree structured networks
Additional Benefits
- Hot slave insertion and removal during operation
- Short circuit protection on each channel
- Option to create a redundant path to other Hubs or ComBricks
- Compact and robust construction
- Status and error display (per channel)
- Suitable for all DP cables
- Conveniently arranged networks
- Easy extendable installations
- On-board DB9 female connector on each channel for maintenance activities
Features
- 4 galvanic isolated outgoing channels (repeater segments)
- 2 Fiber Optic channels
- Transparent for all PROFIBUS DP protocols
- DP -RS 485 specifications for each channel
- Cable redundancy for copper channel 1 and 2
- 31 devices per channel
- 9.6 Kbps to 12 Mbps
- 3000m cable length for FO channel 1 and 2
- 1200m spur line length (depends on transmission speed)
- Redundant power supply
- No limit in serial placement or cascading of ProfiHubs
- Alarm contact with manual reset button
- No address required
- Integrated termination facilities (switches)
- Configurable grounding system
- High integrity telegram checking
- IP 20 classification with extended temperature range
Documents and Drivers
Documentation
ProfiHub B4FO2+ Product Brief
ProfiHub B4FO2+ User Manual
Downloads
DWG Drawing
Specifications
Baud Rate
9.6 Kbps to 12 Mbps (automatic detection)
Cable Length
- RS485: 1200 m segment length (depends on baudrate)
- Fiber Optic: 3 km
Cascading Depth
No limit in cascading
Channels
- 4 galvanic isolated channels (repeater segments)
- 2 Fiber optic channels
- 31 Devices per channel
Connector(s)
- RS485: Screw connectors and DB9 female connector
- Fiber Optic: 4 ST/BFOC connectors
- Multimode cable G62.5 / 125 (OM1) - 850 nm
Current
Min 275 mA at 12 V power supply (all channels fully loaded)
Dimensions
167 x 111 x 38 mm
Enclosure
IP20 (DIN 40 050)
Indicators LED
Activity and Power Status
Interface(s)
- Suitable for PROFIsafe and MPI
- RS485
- Fiber Optic: Point-to-point, star and bus topologies (UL listed)
- PROFIBUS
Mounting
DIN Rail
MPN
17420
Power Consumption
Nominal power use: 1.75 W
Power Supply
Redundant (9-31 VDC)
Product Weight
475g
Protocols
Transparent for all PROFIBUS DP protocols in Hub
Serial Types
371
Switch Option
Integrated Termination Switches
Temperature Range
- Storage: -25ºC to 70ºC (-13ºF to 158ºF)
- Operational: -25ºC to 70ºC (-13ºF to 158ºF)
Voltage
Operating 12 to 24 VDC
