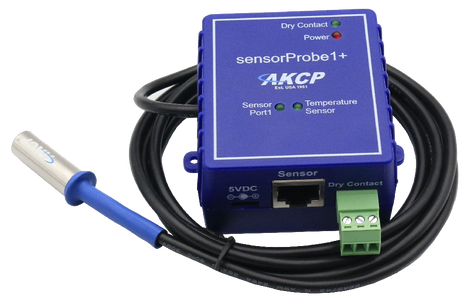

sensorProbe1+ - SP1+ Basic Version
sensorProbe1+ - SP1+ Basic Version
Product Images
sensorProbe1+ - SP1+ Basic Version: Temperature Sensor
$179.39
Regular price: $195.00
SKU: GC-AK-SP1-PLUS-B-POE
MPN: SP1+B-POE
Manufacturer: AKCP Co Ltd.
Sensor Type
-
$179.39
-
$193.19
We Have You Covered
Product Information
Product Description
Upgrade to SP1+ PRO for FREE (same price more functions).
Monitor the environment, power, and security for a single rack with the sensorProbe1+ (SP1+). This simple yet advanced device has the same user interface as the rest of the sensorProbe+ product line. Utilize the dry contact I/O for door contacts. Monitor temperature or temperature and humidity based on sensor type option.
This compact device comes equipped with
- 1 dry contact I/O,
- 1 intelligent sensor port, and
- 1 intelligent sensor, based on Sensor Type option selected.
This comes with the Basic License. View all options here.
Order Summary
SKU |
Sensor Type
|
Manufacturer Part # (MPN) |
---|---|---|
GC-AK-SP1-PLUS-B-POE | Temperature Sensor |
SP1+B-POE |
GC-AK-SP1-PLUS-B-POE-THS | Temperature Humidity Sensor | SP1+B-POE-THS |
Features
- Event Log
- Notifications
- MQTTS
- Graphs
- Dual Inputs
- Optional temperature and humidity sensor (THS)
Documents and Drivers
Documentation
SP1+ Datasheet
Specifications
Dimensions
82 x 72 x 35 mm (3.22 x 2.83 x 1.38 Inches)
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Indicators LED
- LED indication for Power
- LED for network connectivity
- LED for sensor online and threshold status
- LED for dry contact input status
Input/Output
- 1x RJ45 Sensor Port
- 1x Dry Contact I/O (0/5VDC)
- 1x 10/100 Ethernet Port
- 1x hard wired 5ft temperature humidity sensor, if “Add THS Sensor” option selected
- 5x free virtual sensors (additional unlocked via license)
- Configurable output signals (0VDC/5VDC) on the 4 RJ45 sensor port
Interface(s)
Networking:
- Standard 10/100 Mbps Full Duplex
- Ethernet RJ45 Port
Mounting
- Screw mounting
- Built in DIN Rail Clip and cable tie loops
MTBF
1,400,000 Hours based on field experience with sensorProbe units.
Ports
1 RJ45 Sensor Port for connecting AKCP Autosense Sensors
Power
Requirements:
- PoE IEEE 802.3af support
Product Weight
0.2 Kg (.44 Lbs)
Protocols
- Rsyslog
- MQTT / MQTTS
- SNMP V1/2/3
- IPV6
- RADIUS
- TACACS
- HTTPS
- Encrypted E-mail
Sensors
- Maximum of 400 onlined sensors, including virtual sensors.
- Virtual sensor (pack of 5 sensors). Maximum of 80 virtual sensors.
Temperature Range
-35°C to +80°C (-31°F to +176°F)
