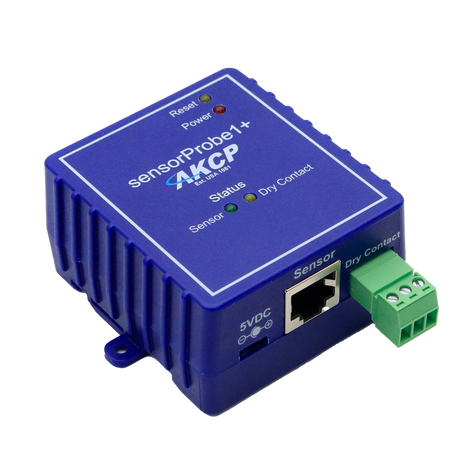

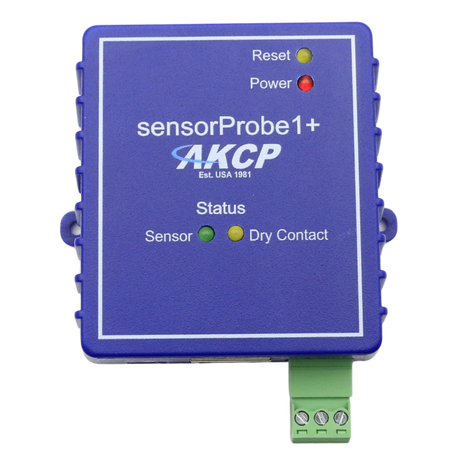

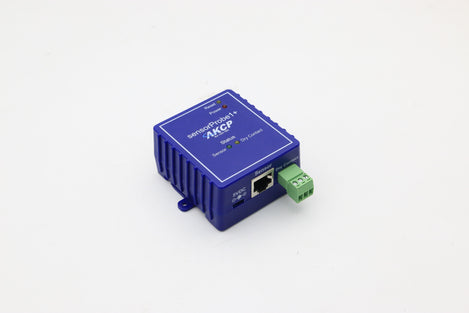

sensorProbe1+ - SP1+ PRO Version
sensorProbe1+ - SP1+ PRO Version
Product Images
sensorProbe1+ - SP1+ PRO Version: No THS Sensor
$257.00
SKU: GC-AK-SP1-PLUS-PRO-POE
MPN: SP1+PRO-PoE
Manufacturer: AKCP Co Ltd.
THS Sensor
-
$257.00
-
$262.00
We Have You Covered
Product Information
Product Description
The sensorProbe1+ SP1 PRO is a compact yet powerful PoE-enabled SNMP monitoring device designed for reliable remote temperature, humidity, power, and security monitoring in data centers, server rooms, telecom closets, and industrial environments.
With a rugged design and professional license included, the SP1+ integrates seamlessly with your existing IT infrastructure using SNMPv3, IPv6, Radius, TACACS, and Modbus TCP/IP, and supports up to 80 virtual sensors for flexible third-party integration.
Monitor environmental conditions and rack-level events like door status or airflow disruptions. Use virtual sensors for remote SNMP monitoring of third-party equipment, ensuring 24/7 infrastructure protection.
Whether you’re building a new monitoring system or expanding an existing one, the sensorProbe1+ SP1 PRO is the ideal single-port, network-connected sensor hub for mission-critical monitoring—delivering clarity, reliability, and control where it matters most.
This compact device comes equipped with:
- 1 dry contact I/O,
- 1 intelligent sensor port, and

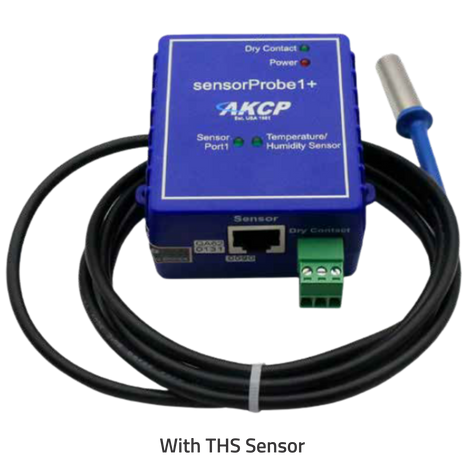

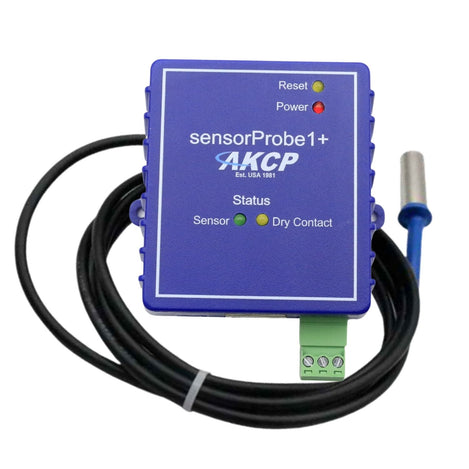

- if selected, 1 optional built-in temperature and humidity sensor on a 5ft cable.
Includes the Professional License for advanced features and full functionality. Compare Basic vs. Professional licenses here.
Rack Monitoring
Use the dry contact input to monitor door status or external switches, and configure virtual sensors to track third-party devices within the rack. For environmental monitoring, add the optional THS sensor to measure temperature and humidity.
Order Summary
SKU |
THS Sensor
|
Manufacturer Part # (MPN) |
|---|---|---|
| GC-AK-SP1-PLUS-PRO-POE | No THS Sensor |
SP1+PRO-PoE |
| GC-AK-SP1-PLUS-PRO-POE-THS | Add THS Sensor | SP1+PRO-PoE-THS |
Features
1 intelligent sensor port compatible with a wide range of AKCP sensors
1 dry contact I/O for door switches or alarms
Optional built-in temperature & humidity sensor on a 5ft cable
Power over Ethernet (PoE) support for simple, cable-free installation
Real-time alerts via SNMP traps or email
Web-based user interface with the same UI as the full sensorProbe+ line
Documents and Drivers
Documentation
SP1+ Datasheet
Specifications
Dimensions
82 x 72 x 35 mm (3.22 x 2.83 x 1.38 Inches)
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Indicators LED
- LED indication for Power
- LED for network connectivity
- LED for sensor online and threshold status
- LED for dry contact input status
Input/Output
- 1x RJ45 Sensor Port
- 1x Dry Contact I/O (0/5VDC)
- 1x 10/100 Ethernet Port
- 1x hard wired 5ft temperature humidity sensor, if “Add THS Sensor” option selected
- 5x free virtual sensors (additional unlocked via license)
- Configurable output signals (0VDC/5VDC) on the 4 RJ45 sensor port
Interface(s)
Networking:
- Standard 10/100 Mbps Full Duplex
- Ethernet RJ45 Port
Mounting
- Screw mounting
- Built in DIN Rail Clip and cable tie loops
MTBF
1,400,000 Hours based on field experience with sensorProbe units.
Ports
1 RJ45 Sensor Port for connecting AKCP Autosense Sensors
Power
Requirements:
- PoE IEEE 802.3af support
Product Weight
0.2 Kg (.44 Lbs)
Protocols
- Rsyslog
- MQTT / MQTTS
- SNMP V1/2/3
- IPV6
- RADIUS
- TACACS
- HTTPS
- Encrypted E-mail
Sensors
- Maximum of 400 onlined sensors, including virtual sensors.
- Virtual sensor (pack of 5 sensors). Maximum of 80 virtual sensors.
Temperature Range
-35°C to +80°C (-31°F to +176°F)
