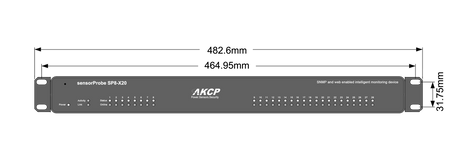

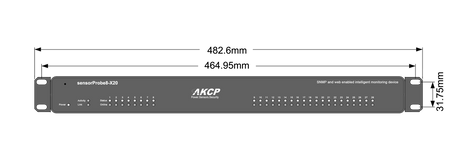

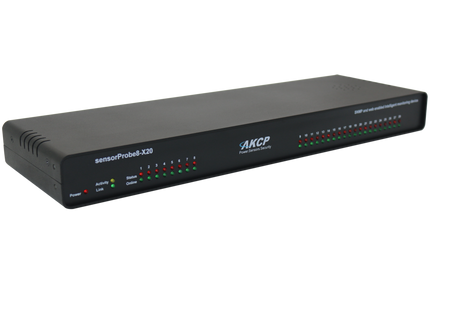

sensorProbe8-X20 - 8 Sensors & 20 Dry Contacts (SP8N-X20)

Leave a review

SKU: GC-AK-SP8N-X20

MPN: SP8-X20

Manufacturer: AKCP

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

Connect up to 8 AKCP sensors and 20 Dry Contact Inputs to the SensorProbe8-X20.

Many different types of equipment and devices use dry contact outputs to send alarm signals to remote panels, remote monitoring systems, and building management systems. Communicating the status of these dry contact systems is important in a complex Enterprise network, or automation industry to protect the mission critical installations of expensive equipment. The SP8N-X20 is based on sensorProbe™ technology with an advanced 20 dry contact inputs. It comes in a 1 U rackmount box.

Architecture:
At the core of the SP8N–X20 is the sensorProbe8, which is then integrated with the 20 dry contact system. This offers support for remote monitoring and management of various external devices. This integrated system enables connection and monitoring of devices like HVAC systems, Security Equipment, UPS, Generators, Industrial Equipment etc. The SP8N embedded web server makes the addition of these devices easy.

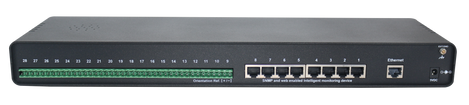

The SP8N-X20 has 8 full autoSense RJ-45 ports for connecting any of our intelligent sensors. An additional 20, 2 wire dry contact ports are provided giving a total of up to 28 dry contact ports. The specially designed 2 wire dry contact ports are easy to use and allow you to make your own dry contact cables quickly and easily.

This device is equipped with a TCP/IP stack, internal web Server, e-mail, SMS and Full SNMP functionality. It also comes with an optional, high-speed, TI DSP and 16-bit A/D Converter for the specific requirements of special projects, such as integrating power monitoring device. The SP8N-X20 is virtually a ‘plug n play’ device and is extremely easy to use and maintain. The installation process is also simple and one does not need additional power supply or batteries when new optional sensors are added.

Features

sensorProbe8 X20 Features


  • 8 auto-sense ports for connecting any AKCP intelligent sensors
  • 20 Dry Contact inputs
  • Highly integrated, low power surface mount technology to ensure long term reliability
  • Full Email and SMNP traps for notification features
  • Fully embedded TCP/IP and web-server
  • New improved web-based interface for easy configuration and monitoring
  • Login for User and Administrator for better security
  • Battery backed time of day clock for an accurate system date and time
  • No external hardware or software dependencies
  • Firmware update over the internet
  • Customized color configuration for displaying alerts
  • Network Management System integration
  • 1U rack mounting included

Documents and Drivers

Documentation
sensorProbe8x20 Datasheet View (PDF)

Specifications

DIMENSIONS

2 (D )x 44 (H) low profile design

INDICATORS LED

  • Power
  • Network connectivity
  • sensor online and threshold status
  • Dry contact status

INPUT/OUTPUT

Inputs:

  • 8x Sensor Ports for connecting AKCP sensors
  • 20x 2 Wire dry contacts (Input only up to 5VDC)
  • 1x 10/100 Mbps Ethernet Port

Outputs:

  • Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports

MOUNTING

  • 1 U Rack Mount Standard
  • Rackmount brackets included

MPN

SP8N-X20

MTBF

1,400,000 Hours based on field experience with sensorProbe units

POWER CONSUMPTION

Typical : 1.90 Watt, 0.21A

TEMPERATURE RANGE

  • Operating Temperature : -35°C to 80°C (-31°F to 176°F)
  • Humidity: Min. 20% – Max. 80% (Non-Condensing)
