Product Information

Product Description

RUTX10 Enterprise router was made especially for small to mid-size office applications.  Dual Band Wi-Fi 5 802.11ac makes it very suitable for high data transmission and robust wireless performance.

It has all the latest security features and allows remote monitoring and control.

The RUTX10 comes with highly functional & customizable RutOS based on OpenWRT.

Synergy between hardware and software makes this device an amazing performer in Enterprise solutions.

Features

  • 802.11ac Dual Band WiFi with speeds up to 867 Mbits/s
  • 4X Gigabit Ethernet with speeds up to 1000 Mbps
  • Bluetooth LE for short range communication
  • Quad-core ARM Cortex A7 CPU, 717 MHz
  • Teltonika Remote Management System compatible
  • RutOS – easy to use, secure and feature rich OpenWrt based Operating System

Documents and Drivers

Documentation

RUTX10 Professional Ethernet Router Datasheet

RUTX10 Quick Start Guide

RUTX10 User Manual

Specifications

Antennas

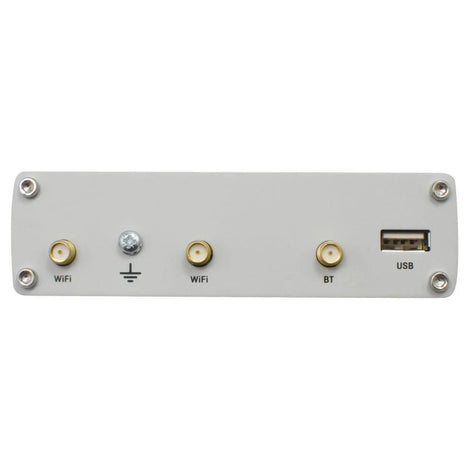

  • 2 x RP-SMA for WiFi
  • 1 x RP-SMA for Bluetooth

Connector(s)

4 pin industrial DC power socket

CPU

Quad-core ARM Cortex A7, 717 MHz

Data Rate

USB 2.0

Dimensions

115 x 32.2 x 95.2 mm (4.52 x 1.27 x 3.75 inches)

Firmware

WEB UI, FOTA, RMS, Keep settings

Flash Memory

256 MB, SPI Flash

Housing

Aluminum

Humidity

10% to 90% non-condensing

Indicators LED

  • 8 x LAN status LEDs
  • 1 x Power LED
  • 2 x 2.4G and 5G WiFi LEDs

Included in Box

  • Router RUTX10
  • 18 W PSU
  • 2 x WiFi antennas (swivel, RP-SMA male)
  • 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
  • Ethernet cable (1.5 m)
  • QSG (Quick Start Guide)
  • RMS Flyer
  • Packaging box

Input/Output

  • 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
  • 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Input Voltage

9 - 50 VDC, reverse polarity protection, voltage surge/transient protection

Mounting

DIN rail, flat surface placement

MPN

RUTX10000200

Pins

1 x 4 pin DC connector

Ports

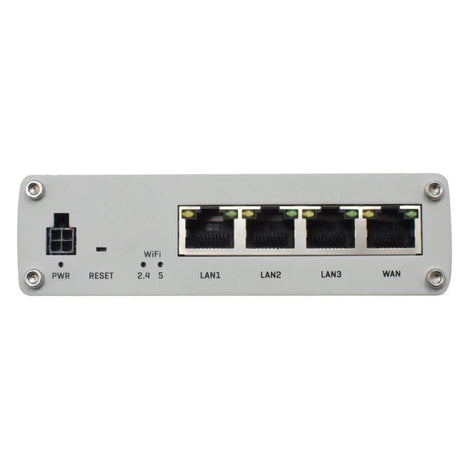

  • 4 x RJ45 ports, 10/100/1000 Mbps
  • 1 x USB A port for external devices
  • 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Power Consumption

9 W Max

Product Weight

355 g

Protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA

Security/Protection

  • Authentication: Pre-shared key, digital certificates, X.509 certificates
  • Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLAN: Port and tag based VLAN separation
  • WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
  • Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Temperature Range

-40°C to 75°C (-40°F to +167°F)
