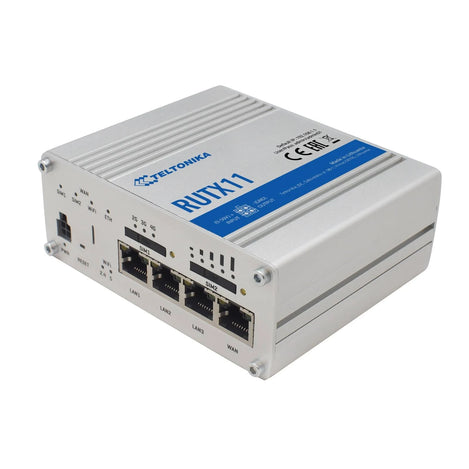

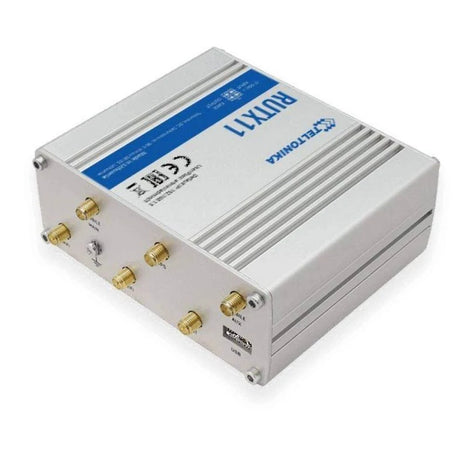

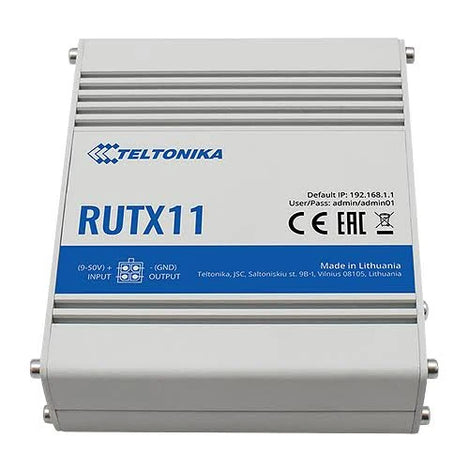

Teltonika RUTX11 - CAT6 Industrial Cellular Router, Wi-Fi, Dual-Sim

$407.00

Leave a review

SKU: GC-TELT-RUTX11

MPN: RUTX11100400 Router

Manufacturer: Teltonika IOT Solutions Canada Ltd.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

RUTX11 is a very powerful device equipped with Dual-SIM with auto Failover, Backup WAN, and other software features. Supports Universal IoT SIM cards and IoT SIM cards from AT&T, Verizon, T-Mobile, and Deutsche Telekom for North, Central, and South America

A wide range of internal hardware interfaces allows this product to be used in power-hungry industrial applications where speed and robustness are at the heart of the solution.

4G LTE – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gigabit Ethernet ports allows for a seamless data transfer experience.

Bluetooth LE allows sensors to be connected directly to the router, thus, minimizing the overall solution ecosystem.

See a comparison of cellular features by product offering.

Features

  • 4G LTE CAT 6 - Cellular speeds up to 300 Mbps with Carrier Aggregation
  • Dual SIM - With auto failover, backup WAN and other switching scenarios
  • Wi-Fi & BT - Wave-2 802.11 ac Dual Band Wi-Fi and Bluetooth LE
  • GNSS - Global Navigation Satellite System forlocation services and time synchronization
  • Protocols - Multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
  • RMS - Compatible with Teltonika Remote Management System

Documents and Drivers

Documentation

UTX11 Cellular Router Datasheet

RUTX11 Cellular Router Flyer

RutX11 Quick Start Guide

Specifications

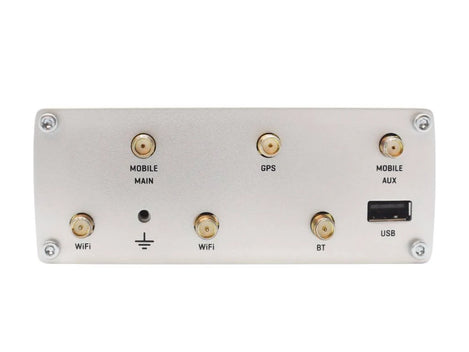

Antennas

  • 2 x SMA for LTE
  • 2 x RP-SMA for WiFi
  • 1 x RP-SMA for Bluetooth
  • 1 x SMA for GNSS

Connector(s)

4 pin industrial DC power socket

CPU

Quad-core ARM Cortex A7, 717 MHz

Data Rate

USB 2.0

Dimensions

115 x 44.2 x 95.1 mm (4.53 x 1.74 x 3.74 inches)

Firmware

  • WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
  • FOTA: Update FW/configuration from server
  • RMS: Update FW/configuration for multiple devices
  • Keep settings: Update FW without losing current configuration

Flash Memory

256 MB, SPI Flash

Housing

Aluminum

Humidity

10 % to 90 % non-condensing

Indicators LED

  • 4 x WAN type LEDs
  • 2 x Mobile connection type
  • 5 x Mobile connection strength
  • 8 x LAN status
  • 1 x Power
  • 2 x 2.4G and 5G WiFi

Input/Ouput

  • 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
  • 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Input Voltage

9 – 50 VDC, reverse polarity protection, voltage surge/transient protection

Mounting

DIN rail, flat surface placement

MPN

RUTX11100400 Router

Operating System

RutOS (OpenWrt based Linux OS)

Pins

1 x 4 pin DC connector

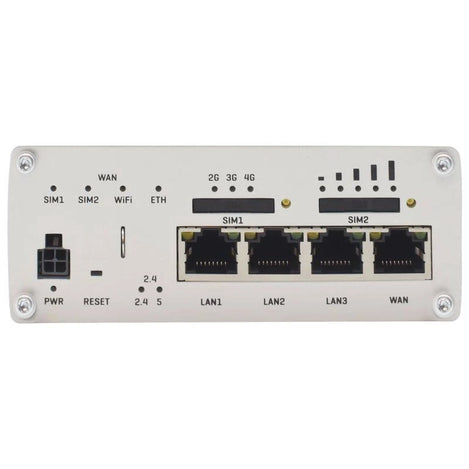

Ports

  • 4 x RJ45 ports, 10/100/1000 Mbps
  • 1 x USB A port for external devices
  • 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Power Consumption

16 W Max

Product Weight

456 g

Protocols

Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA

Security/Protection

  • Authentication: Pre-shared key, digital certificates, X.509 certificates
  • Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLAN: Port and tag based VLAN separation
  • Mobile quota control: Set up custom data limits for the SIM card
  • WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
  • Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Slots

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

Temperature Range

-40°C to 75°C (-40°F to +167°F)
