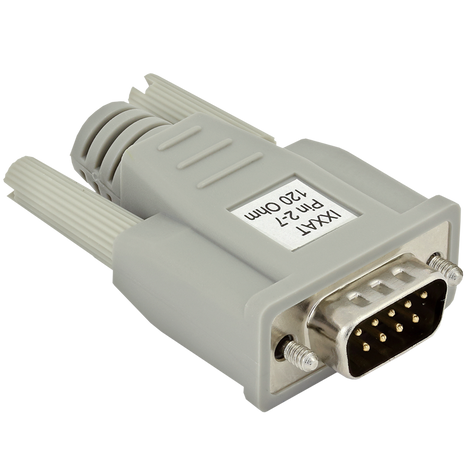

Termination for CAN/CAN FD networks - D-Sub 9 Connectors: Plug (male)

$18.00

Leave a review

SKU: GC-IXT-CAN-TERM-M

MPN: 1.04.0075.02000

Manufacturer: Ixxat

Delivery: Ships within 7-14 business days
Free shipping to the US on orders over $100

Connector Type

Product Information

Product Description

The Ixxat CAN termination is equipped with a D-Sub 9 connector and a 120 Ohm resistor which ensures proper termination of CAN and CAN FD buses. It is used when a CAN node lacks internal termination, or if no CAN node is connected at the end of the CAN bus. Per ISO 11898-2, high-speed CAN systems require end resistors.

D-Sub 9 Connector Types

  • Socket (Female)
  • Plug (Male)

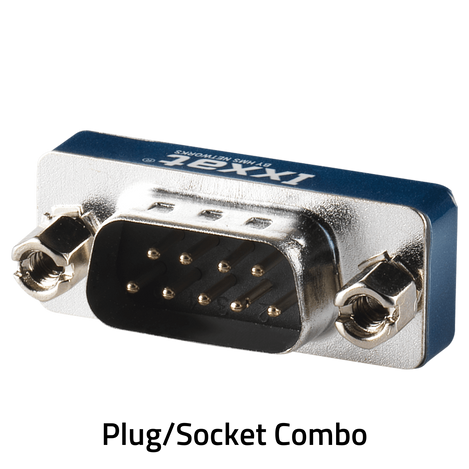

  • Gender Changer (Male to Female)

Optimal Signal Integrity

Integrates a 120 Ohm resistor, ensuring proper CAN/CAN FD bus termination. The resistor is placed between pin 2 (CAN-L) and pin 7 (CAN-H).

Universal Compatibility

Socket and plug types come with a 9-pin D-Sub, fitting standard CAN interfaces.

Convenient Integration

Socket and plug types feature a direct 1-to-1 pin assignment, making connection straightforward.



Order Summary


 SKU Connector Type Manufacturer Part # (MPN)
GC-IXT-CAN-TERM-F Socket (Female) 1.04.0075.01000
GC-IXT-CAN-TERM-M Plug (Male) 1.04.0075.02000
GC-IXT-CAN-TERM-MF

Gender Changer (Male to Female)

1.04.0075.03000

Features

  • Optimal signal integrity with proper CAN/CAN FD bus termination
  • Universal compatibility with 9-pin D-Sub socket
  • Convenient integration with a direct 1-to-1 pin assignment

Documents and Drivers

Documentation

CAN Termination Datasheet - Socket/Plug

D-Sub 9 Connector with CAN Termination Datasheet - Gender Changer

Specifications

Insulator

PBT glass fiber reinforced

Contact

brass, gold plated over nickel

Shell

tin plated

Insulator resistance

500 MOhm min. at 500 V DC

Temperature

-55°C ~ 105°C  (-67°F ~ 221°F)

Current rating

3 AMP

Dielectric strength:

500V AC for one minute

Certifications & Standards

WEEE Category:   IT and telecommunications equipment

ETIM Classification:  EC002584
