Thermal Humidity Map Sensor for sensorProbe2+ & SPX+

$220.00

Leave a review

SKU: GC-AK-CTHMS-V2

MPN: CTHMS-V2

Manufacturer: AKCP Co Ltd.

Delivery: Ships in 1-2 weeks
Qualifies for Free shipping
View video on using the Thermal Map Sensors and SP2+ for cabinet montioring.

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The Thermal Humidity Map Sensor comes fully equipped with 6 temperature and 2 humidity sensors for monitoring and protecting computer cabinets. This sensor provides users with an accurate image of their computer cabinet’s temperature and humidity levels, which helps control cooling and eliminate hotspots.

The AKCPro Server software creates a visual representation of the computer cabinet to help locate hotspots. Once hotspots are located, users can target where exactly in the cabinet, cooling is needed, thus eliminated the costs of cooling.

The sensor runs on very low power within any given server cabinet.

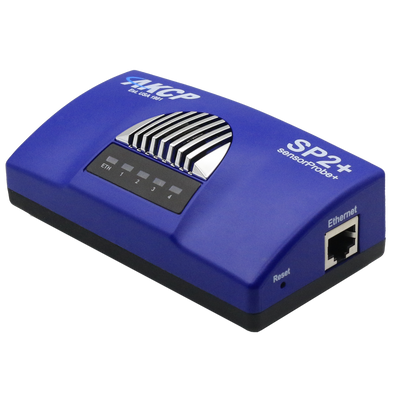

The sensorProbe2+ auto detects the Thermal Map Sensor once the user connects the RJ-45 jack to the sensor using the UTP CAT5/6 cable. The thermal map sensors should be installed at the base, middle, and top in the front and rear of the cabinet.



Using the SP2+ and thermal sensors for monitoring cabinets.





Features

  • Monitor temperatures at the top, middle and bottom of a cabinet
  • Monitor humidity at the middle of a cabinet
  • Create Custom maps of data rooms
  • Email or relay actions to trigger corrective action
  • Sensor automatically detected by SP2+

Documents and Drivers

Documentation

Thermal Humidity Map Sensor Datasheet

Using Thermal Map Sensor with SP2+ for cabinet monitoring

Specifications

Communications Cable

RJ-45 jack to sensor using UTP CAT5e/6 cable

Dimensions

75 x 55 x 27 mm

Humidity

Min. 20% – Max. 80% (Non-Condensing)

Maximum Extension Cable Length

Sensor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 60 feet, or 18 meters using standard CAT5/6 LAN cable

Measurement Accuracy

  • Maximum ±0.3 at -40ºC, minimum ±0.3 at +25ºC and ±0.3 at +75ºC
  • Maximum ±0.6 at -40ºF, minimum ±0.6 at +25ºC and ±0.6 at +167ºF
  • ±0.5°C accuracy from -10°C to +75°C
  • ±0.9°F accuracy from +14°F to +167°F

Measurement Range

  • -40°C to +75°C (-40°F to +167°F)
  • 0 to 100% Relative humidity

Measurement Resolution

  • 0.1°C (0.2°F) increments
  • 1%RH increments, 0.01%RH sensor reading

Mounting

VHB Tape, Magnetic (optional)

MPN

CTHMS-V2

Number of Sensors

  • 6 Temperature
  • 2 Humidity

Temperature Range

-35°C to +80°C (-31°F to +176°F)

Power Consumption

Typical 75 mWatt, 15 mA

Power Source

Powered by the sensorProbe+ familiy units. No additional power needed
