This product is discontinued and no longer available.

Suggested replacement: Thermal Humidity Map Sensor for sensorProbe2+ & SPX+

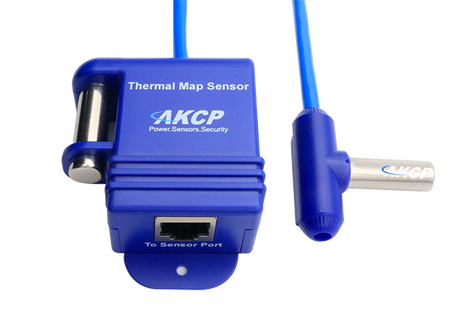

Thermal Map Sensor for Cabinet Monitoring

Leave a review

SKU: GC-AK-CTMS

MPN: CTMS

Manufacturer: AKCP Co Ltd.

Product Information

Product Description

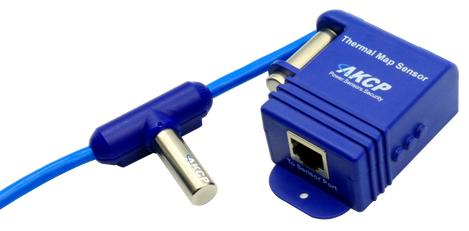

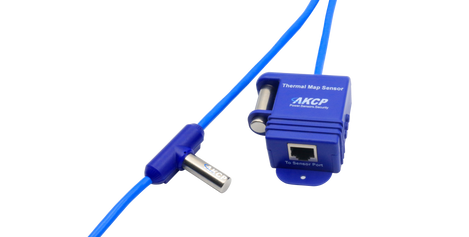

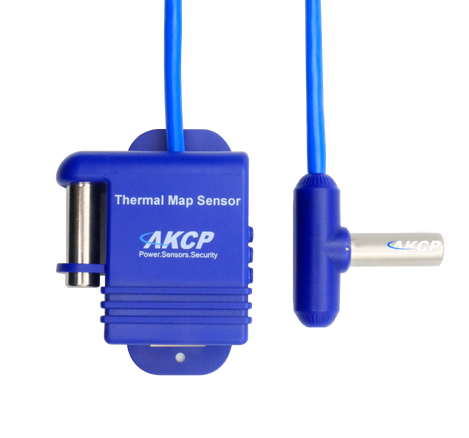

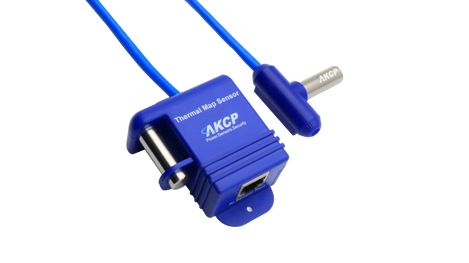

This temperature Thermal Map Sensor has 6 sensors pre-wired for easy installation into a cabinet. Identify and eliminate hotspots in cabinets by identifying temperature differential areas inside a cabinet. The sensor can be configured top, middle, bottom of the front and rear of a cabinet to monitor air intake and exhaust temperatures and temperature differential from front to rear.


Advantages

  • Identify cabling or other obstructions causing airflow impediments.
  • Identify server or cooling fan failures causing temperature differentials between front and rear of cabinet.
  • Identify insufficient pressure differential to pull air through cabinet
  • Combine data with power consumption from the in-line power meter to safely make adjustments in the data center cooling systems.



The temperature Thermal Map Sensor comes ready to mount with magnetic, cable ties or ultra high bond adhesive tape to hold them in position.

  • Perforated cabinet:  mount each sensor on the front and rear doors to expose them directly to the airflow in and out of the cabinet.
  • Sealed cabinet: mount them inside and get temperature differentials across the cabinet.



This sensor is compatible with the SP2+ (sensorProbe2+) and the SPX+and is automatically detected and configured. Extendable up to a maximum of 15 meters cable length, you can monitor multiple cabinets from a single IP address. Up to 16 thermal maps can be connected to a single SP2+.



USING THE SP2+ AND THERMAL SENSORS FOR MONITORING CABINETS.



Features

  • Monitor temperatures throughout a cabinet
  • Never needs calibration
  • No additional power needed
  • sensorProbe+ auto detects and configures the Thermal Map Sensor automatically
  • Email or relay actions to trigger corrective action

Documents and Drivers

Documentation

Thermal Humidity Map Sensor Datasheet

Using Thermal Map Sensor with SP2+ for cabinet monitoring

Specifications

Communications Cable

RJ-45 jack to sensor using UTP CAT5/6 cable

Maximum Extension Cable Length

60 Feet (18 Meters) with low capacitance shielded cable or UTP

Measurement Accuracy

  • ±0.5°C accuracy from -10°C to +75°C
  • ±0.9°F accuracy from +14°F to +167°F

Measurement Range

-40°C to +75°C (-40°F to +167°F)

Measurement Resolution

0.1°C increments (0.2°F increments)

MPN

CTMS

Power Consumption

75 mWatt, 15mA

Power Source

powered by the sensorProbe+

Sensors

6 temperature sensors
