This product is discontinued and no longer available.

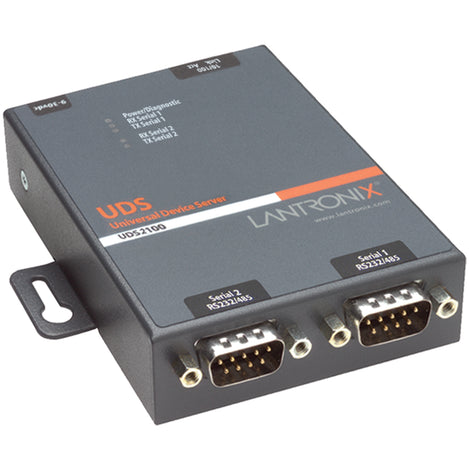

UDS2100 - Dual Serial Ethernet Device Server

Leave a review

SKU: GC-UDS2100-01

MPN: UD2100001-01

Manufacturer: Lantronix

Product Information

Product Description

Authorized North America Distributor Stamp

The UDS2100 is an intelligent Dual Serial-to-Ethernet device server that enables any device or machine with a serial port to become network and Internet-enabled within minutes. Using a method called Serial Tunneling you can manage your equipment from virtually anywhere over a network or the Internet.

The UDS2100 device server has an integrated web server, allowing any device to which it is attached to be 'contacted' and monitored via a standard Internet browser. TCP/IP is embedded into the UDS2100, enabling it to operate within non-PC environments. The Modem Emulation Mode allows it to behave like a modem but communicate over TCP/IP.

The UDS2100 is a product which can be integrated into a system with minimal set-up; a configuration utility is provided which allows quick and easy customization to suit any network or serial device.

Virtual Comm Port drivers are provided to allow a UDS2100-connected device to communicate with existing software over TCP/IP (for Windows operating systems).

The RoHS compliant UDS2100 is an updated version of the Lantronix UDS200 Device Server. With a faster processor, more memory and improved web interface, the UDS2100 is a drop in replacement for the UDS200 as it has the same form, fit and function.

Features

  • 10/100Mb/s Auto Sensing RJ45 Ethernet Port
  • 6 page Web Server
  • Two DB9 connectors for serial
  • 110V power supply included

Documents and Drivers

Documentation

Current DeviceInstaller

Current Com Port Redirector

Specifications

Baud Rate

Serial: Up to 230KMBaud

Certifications

UL, CSA, TUV, FCC, CE

Characters T

7 or 8 data bits

Flow Control

XON/XOFF

GTIN

783384231719

Indicators LED

Serial, Power, Ethernet activity & Status

Interface(s)

Network: 10/100Mbps Ethernet

MPN

UD2100001-01

Protocols

Supports: RS232, 422, 485

Serial Interfaces

373

Serial Types

372,370,371

Stop Bits

1 or 2
