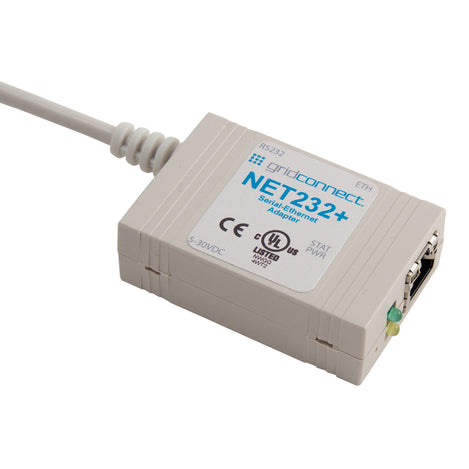

NET232+ Serial to Ethernet Intelligent Cable Adapter

The NET232+ is the next generation of advanced serial device servers from Grid Connect and s backward compatible with the NET232. The new “PLUS” provides a simple solution enabling RS232 serial devices to connect to the network via Ethernet and TCP/IP (RJ45). Use the NET232+ to extend the life and utility of existing RS232 serial devices.

The NET232+ is a fully featured device server supporting multiple TCP connections (up to 4 TCP or a mixture of TCP and UDP), DNS, email serial triggers, email authentication, and 256-bit AES encryption (at no-additional charge). Serial data rates up to 921K and auto-sensing 10/100Mbps Ethernet are supported. The NET232+ also features an industrial grade temperature range, detailed LED status indicators, and a factory reset push button. For a detailed list of the NET232+ enhancements please refer to the NET232+/NET232 Comparison Sheet.

The NET232+ is simple to configure using the provided installation software and web page. Just connect the adapter to a serial device and to the local Ethernet network and run the free software to find and set up the NET232+. The NET232+ can be used in pairs to “tunnel” serial data over the internet, or as a single device connected to a serial device on one-end and to a “virtual COM port” on a PC on the other end. This is accomplished using the free virtual COM port software.

Product Ordering Summary:

Part #	Connector Serial DB9	Power Supply
GC-NET232-PLUS-DCE-110	DCE (female)	110V - U.S./North America
GC-NET232-PLUS-DCE-220	DCE (female)	220V - Europe (Except U.K.)
GC-NET232-PLUS-DCE-TB	DCE (female)	5-30V Terminal Block
GC-NET232-PLUS-DTE-110	DTE (male)	110V - U.S./North America
GC-NET232-PLUS-DTE-220	DTE (male)	220V - Europe (Except U.K.)
GC-NET232-PLUS-DTE-TB	DTE (male)	5-30V Terminal Block

Advanced RS232 Serial to Ethernet (RJ45) Device Server
10BASE-T and 100BASE-TX Ethernet (auto-sensing)
Serial baud rates up to 921K
Simple Web Page Configuration
Supports Multiple TCP Connections (up to 4) or a Mixture of TCP and UDP
Secure 256-bit AES Encryption and Email Authentication with User Name and Password
Email Serial Triggers (Supporting up to 6-byte Match Sequence or Embedded Modem Dial Commands)
Push Button Factory Default Reset
Industrial Temperature Range -40ºC to +85ºC

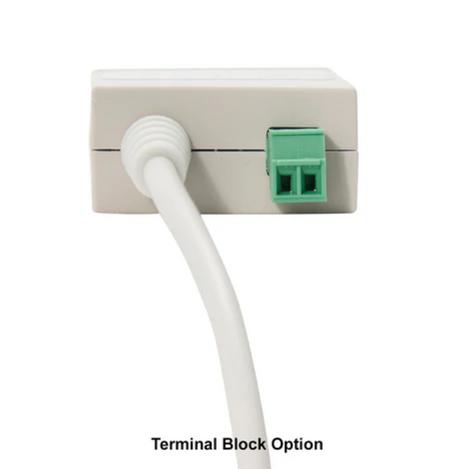

Adapter or Terminal Block for Power Supply
Compact Size (63.5 x 42.7 x 20.2 mm)
RS232 Serial Cable 18 in. (male DTE or female DCE option)
UL, CE, RoHS Compliant

Documentation
NET232+ Data Sheet	Download (PDF)
NET232+ User Manual	Download (PDF)
Device Installer User Guide	Download (PDF)
Redirector Quick Start Guide	Download (PDF)

Downloads
Current DeviceInstaller	Lantronix (Website)
Current Com Port Redirector	Lantronix (Website)

CERTIFICATIONS	UL, CE, RoHS Compliant
CHARACTERS T	7 or 8 data bits

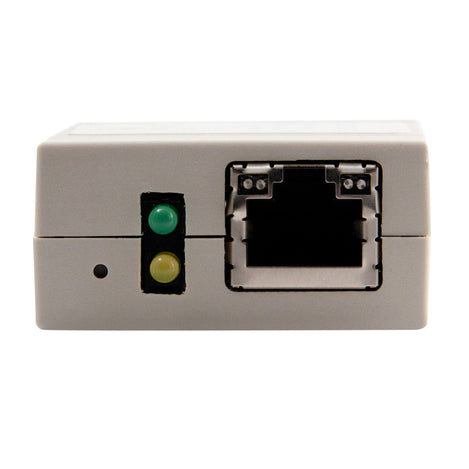

CONNECTORS	Network Connector: RJ45
DATA RATES T	Serial: Up to 921K Ethernet: 10/100M
DIMENSIONS	63.5 x 42.7 x 20.2 mm (excludes cable)
FIRMWARE	Upgradeable via TFTP and Serial Port
FLOW CONTROL	XON/XOFF, RTS/CTS, none
INCLUDED SOFTWARE	MS Windows-based DeviceInstaller software device installer and MS Windows-based Comm Port Redirector
INDICATORS LED	Power, Status, Ethernet Link and Activity
INTERFACES	Network: RJ45 Ethernet 10Base-T or 100Base-TX (Auto-Sensing) Serial: RS232 DB9
MPN	GC-NET232-PLUS
PARITY	odd, even, none

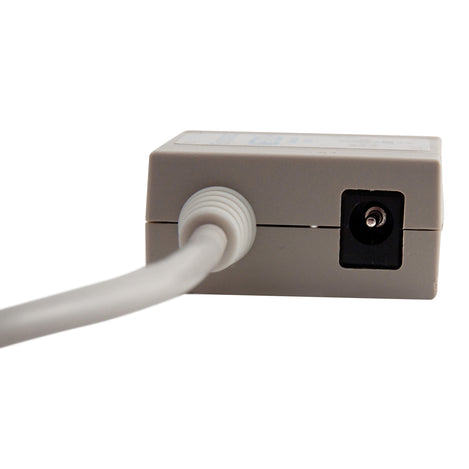

POWER	Power Options: 110V AC Adapter, 500 mA @ 9VDC (option) 220V AC Adapter, 500 mA @ 9VDC (option) Terminal Block (direct DC Power) (option) Pin 9 - DB9 Connecter from Serial Device
PRODUCT WEIGHT	62.4 g (2.2 oz) - Approximate, Without Power Supply
PROTOCOLS	TCP/IP, UDP/IP, ARP, ICMP, SNMP, SMTP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP
SECURITYPROTECTION	256-bit AES Encryption
SERIAL INTERFACES	374,373
SERIAL TYPES	372
SERIAL TYPE CONFIG	401
STOP BITS	1 or 2
TEMPERATURE RANGE	Operational Environment: -40ºC to +85ºC (-40ºF to +185ºF) 5% to 95% Non-Condensing Humidity
