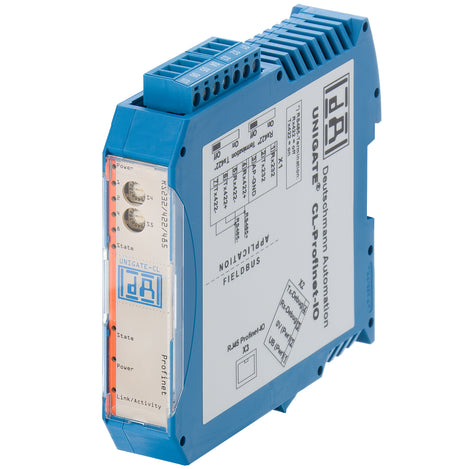

Unigate CL PROFINET Gateway

$770.00

Leave a review

SKU: GC-CL-PROFINET

MPN: V3818

Manufacturer: Deutschmann Automation

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

Product Information

Product Description

PROFINET -enable any RS232/485/422 serial or Modbus device with the UNIGATE CL Gateway. Make any serial device a PROFINET I/O using the UNIGATE CL Gateway. Its low-cost and flexibility are ideal for high volume applications. One side of the gateway is a fieldbus, PROFINET I/O, while the other side is a high performance serial port that directly interfaces with your serial device. The serial side of the UNIGATE can either be used in one of many standard configurations (including Modbus RTU master/I/O and standard RS232/422/485), or can be customized with its built-in scripting language. Volume and OEM pricing available.

CUSTOM PROTOCOLS:
The UNIGATE CL Gateway allows for the quick development of custom applications on the serial side using its powerful scripting language. When developing a custom application, or for simple configuration to a standard protocol, we recommend using a Starter Kit. Starter kits contain all the connection cables and power supplies for configuring and/or scripting. There is even a PROFINET Master tool for testing your configuration or script. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).

Features

  • Complete ProfiNet I/O
  • Max. 1300 byte input and 1300 byte output data
  • Script language for optimal adaptation to your field device
  • Easy configuration from MS Windows® using the WinGate tool.
  • Develop customized scripts with the free Protocol Developer software tool
  • Scripts are portable between all other UNIGATE CL or IC Gateways

Documents and Drivers

Documentation

Unigate CL PROFINET Gateway Datasheet

Specifications

Baud Rate

  • Bus: Auto-sensing, up to 12 Mbps
  • Profinet: Up to 100Mbps
  • Serial: Up to 625 kbps

Bus Buffer

1300 Bytes I/O

Bus Termination

Switch-able

Certifications

PNO/PTO ProfiNet, CE

Characters T

7 or 8 data bits

Connector(s)

  • Serial: RS232 - 3 Pole Terminal Block (Tx, Rx, Gnd)
  • Serial: RS422/RS485 - 4 Pole Terminal Block (RxA, RxB, TxA, TxB)
  • ProfiNet: RJ45
  • Configuration/Programming Port Interface: Terminal Block (Tx, Rx)

Current

Typical 120mA, max. 150mA at 24VDC

Data Buffer

1024 Bytes Input and 1024 Bytes Output

Data Rate

110 to 625 kbps Baud

Dimensions

23 x 115 x 100 mm

Enclosure

IP24

Indicators LED

  • Serial: Power, Code, State
  • ProfiNet: Power, Bus, State

Interface(s)

  • Isolated ProfiNet interface, optional galvanic isolation of the serial RS side
  • Serial RS232, RS422 and RS485 interfaces on board

IO Address

Rotary Switches or via ProfiNet

Isolation

Galvanic Isolation

Mounting

DIN Rail

MPN

V3818

Parity

odd, even, none

Product Weight

130 g

Protocols

  • Serial: RS232, RS422 or RS485, Modbus, plus Custom Protocols through Scripting
  • ProfiNet: ProfiNet I/O
  • Configuration/Programming Port Interface: RS232 (9600 Baud, 8, n, 1)

Security/Protection

Reverse Voltage, Short Circuit, Overload, Under voltage

Software

MS Windows®-based WinGate configuration software, and Protocol Developer script development software

Stop Bits

1 or 2

Temperature Range

  • Storage: -40°C to +70°C (-40°F to +158°F)
  • Operating: 0°C to +55°C (32°F to +131°F)
