Unigate IC ProfiNet I / O Slave Module
Unigate IC ProfiNet I / O Slave Module
Product Images
Unigate IC ProfiNet I / O Slave Module
$270.00
SKU: GC-IC-PROFINET
MPN: V3625
Manufacturer: Deutschmann Automation
We Have You Covered
Product Information
Product Description

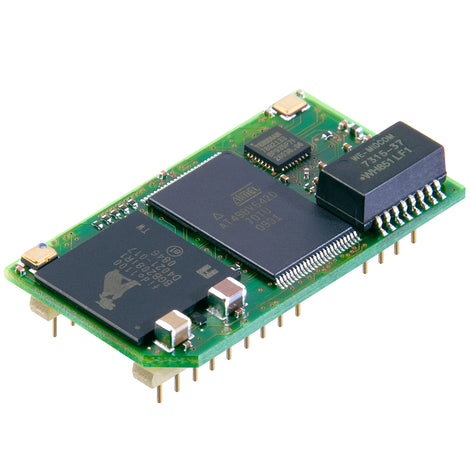

UNIGATE IC is a complete Single Chip ProfiNet I/O Ethernet solution in a 32 pin DIL (dual in-line) package. With a space of 45 x 25 mm the Unigate IC contains all required components: microcontroller, Flash, RAM, Ethernet controller and bus interface components, e. g. optocoupler and bus driver. The UNIGATE IC is to be connected to the microprocessor of your design or it can be operated Stand-Alone. The Unigate IC Ethernet is certified and proven through testing on commercially available Ethernet networks. The integrated microprocessor handles the complete Ethernet data traffic and removes the burden from the attached processor. The protocol between the Unigate IC and the attached processor is handled using a Script. This Script is generated with the free PC-tool Protocol Developer and it is optimally adjusted to the final product and the requirements. The hardware and software interfaces of the Unigate IC modules are standardized, thus they are interchangeable without changing any hardware or software. Volume and OEM pricing available.
CUSTOM PROTOCOLS:
The Unigate IC Ethernet allows for the quick development of custom applications using its powerful scripting language. When developing a custom application, or for simple configuration to a standard protocol, we recommend using a Starter Kit. Starter kits contain a development board with the Unigate IC and all the connection cables and power supplies for configuring and/or scripting. There is even a ProfiNet/Ethernet diagnostic tool for testing your configuration or script. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).
Features
- Complete ProfiNet I/O Ethernet TCP/IP and UDP device
- Max. 1024 byte input and 1024 byte output data
- Stand-Alone operation via shift register
- Script language for optimal adaptation to your field device
- Easy configuration from MS Windows® using the WinGate tool
- Develop customized scripts with the free Protocol Developer software tool
- Scripts are portable between all other UNIGATE CL or IC Gateways
Documents and Drivers
Documentation
Unigate IC Module Datasheet
Specifications
Baud Rate
- Ethernet: Up to 100 Mbps
- Serial: Up to 625 kbps
Certifications
CE
Connector(s)
Connection via UART interface to the existing microprocessor
Current
Typical 125mA
Dimensions
45 x 25 x 20 mm
Interface(s)
- Isolated Ethernet interface
- Synchronous shift register interface
- 2nd Serial interface for Script download, configuration, Debug-function
Mounting
DIL32 Unigate IC Standard
MPN
V3625
Software
MS Windows®-based WinGate configuration software, and Protocol Developer script development software
Temperature Range
Operating: -40°C to +85°C (-40°F to +185°F)
Voltage
Input: +3.3VDC
