USB232 - USB to RS232 Adapter: Removable USB Cable

$79.00

Leave a review

SKU: GC-USB232-DTE-R

MPN: GC-USB232-DTE-R

Manufacturer: Grid Connect Inc.

Delivery: Ships in 1 to 2 days
Free shipping to the US on orders over $100
Contact sales for custom orders.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

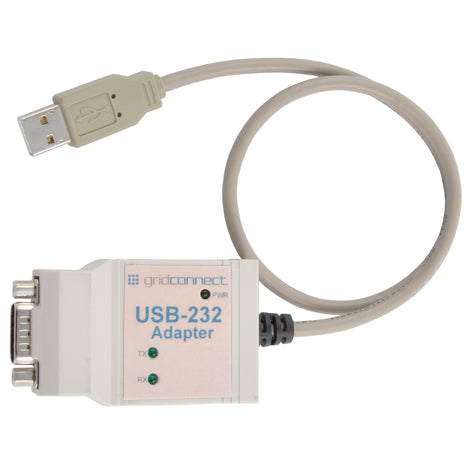

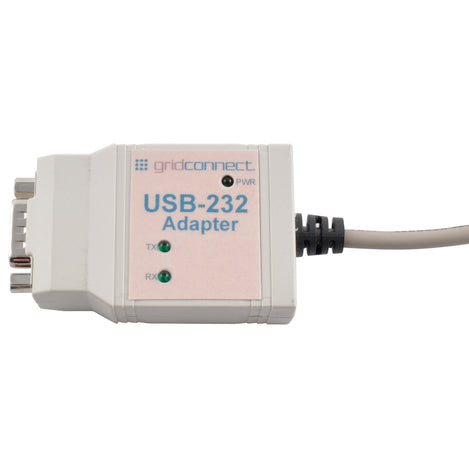

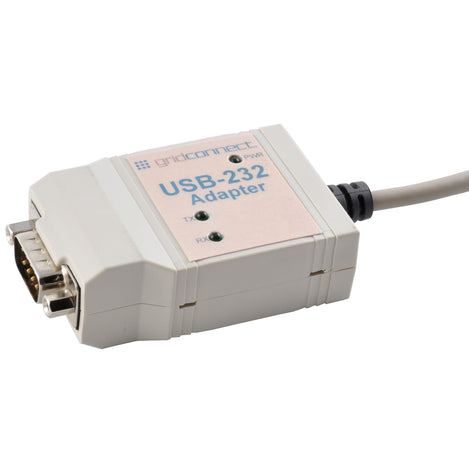

USB232 is an USB to RS232 adapter using the EXAR USB UART technology. It supports all 9 pin RS-232C signals and supports 12 Mbps USB full speed data rate.

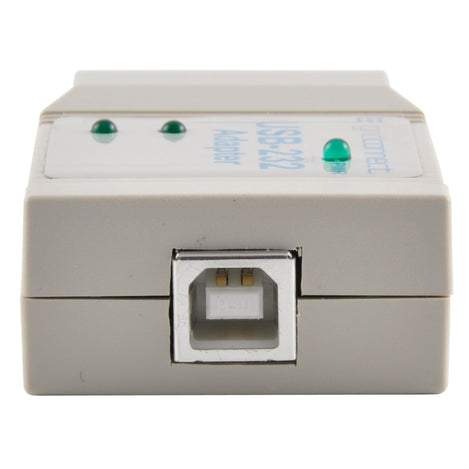

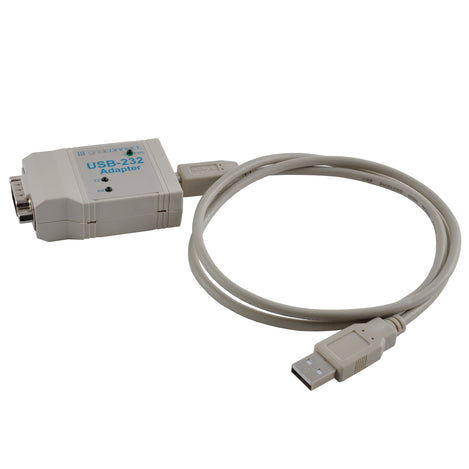

The fixed length unit is supplied with an 8” USB-A cable with a strain relief. The removable cable unit is a USB-B connector allowing the user to plug in different lengths of USB cables.

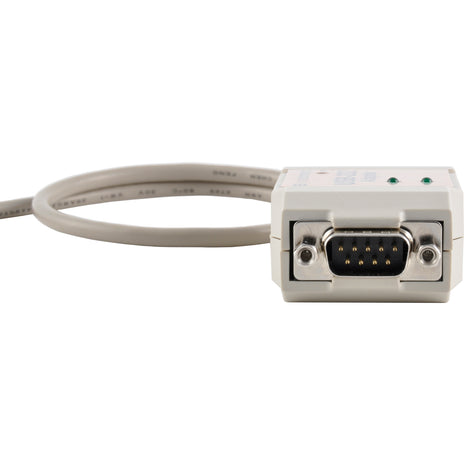

Serial Port Pin Out (DTE/Male)



Pin

Connection

9
Ring Indicator
8
CTS
7
RTS
6
DSR
5
Ground
4
DTR
3
TXD
2
RXD
1
Carrier Detect



Order Summary

SKU

USB Cable

Manufacturer Part # (MPN)

GC-USB232-DTE Fixed Length USB Cable GC-USB232-DTE
GC-USB232-DTE-R Removable USB Cable GC-USB232-DTE-R

Documents and Drivers

Documentation

USB232 User Manual

USB232 Datasheet

Downloads

USB232 Windows 7 Driver

USB232 Windows 10 & newer Driver

Specifications

Baud Rate

  • ±15kV isolation using the Human Body Model
  • ±8kV isolation using the Contact Discharge method specified in IEC 1000-4-2
  • ±15kV isolation using the Air-Gap Discharge method specified in IEC 1000-4-2

Cable Length

8 inches

Characters T

7, 8 or 9 data bits

Data Rate

  • Supports 12 Mbps USB full-speed data rate
  • 128 byte TX FIFO
  • 384 byte RX FIFO

MPN

GC-USB232-DTE

Parity

1 or 2

Power Consumption

Power using USB +5V

Serial Interfaces

RS232

Stop Bits

RTS/CTS or DTR/DSR, XON/XOFF

Supported OS

Windows XP, Vista, 7, 8, 8.1, 10, 11
