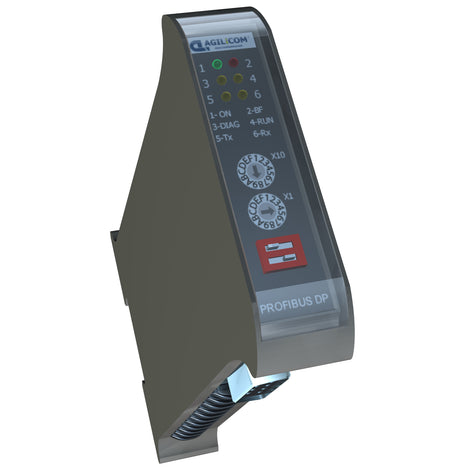

VPGate PROFIBUS DP to Serial Gateway

Leave a review

SKU: GC-PB-DP-SER

MPN: 110-00011A

Manufacturer: Procentec

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The VPGate PROFIBUS DP to Serial Gateway easily connects any serial Modbus device to a PROFIBUS installation. No additional configuration tool is required. Simply provision this PROFIBUS Gateway via any existing PROFIBUS configuration management tool (e.g. Siemens STEP 7). The PROFIBUS installation views the gateway as a slave device and the gateway acts as a master or slave to the Modbus serial device.

Flexibility and ease of use are designed into the VPGate. Both RS232 and RS485 serial interfaces are supported as well as optional digital I/O and analog inputs. The PROFIBUS slave address of the gateway can be setup via a set of rotary switches. Enhanced diagnostic capabilities are provided via PROFIBUS and RS232 diagnostic connections.

Features

  • No additional configuration tool required
  • Supports RS232 or RS485 serial interface
  • PROFIBUS baud rate automatic detection
  • Enhanced diagnostic on PROFIBUS and dedicated RS232 link
  • Intelligent Modbus master/slave mode optimizes PROFIBUS bandwidth usage
  • Up to 20 Modbus slaves
  • Modbus RTU or ASCII supported
  • Detailed set of status LEDs
  • Built-in RS485 bus termination resistor
  • Transparent mode allows for immediate data exchange between PROFIBUS and serial link
  • PROFIBUS GSD (General Station Description) file supplied and customizable

Documents and Drivers

Documentation

Procentec PROFIBUS DP to Serial Gateway Datasheet

Procentec PROFIBUS DP to Serial Gateway User Manual

Specifications

Characters T

7 or 8 data bits

Connector(s)

  • PROFIBUS: DB9 (female)
  • Serial: Rx/A, Tx/B, GND

Current

Switch Contact

  • Rated Current: 1.2A
  • Switching Current: 0.5A

Data Rate

  • Serial: Up to 115,200 baud
  • PROFIBUS: Up to 12 Mbps (Auto Baud)

Dimensions

120 x 100 x 23 mm

Enclosure

IP20 Plastic

Included in Box

CD with GSD File

Indicators LED

  • Power
  • Bus Fault
  • Diagnostic
  • RUN
  • Tx
  • Rx

Input/Output

Max: 488

Interface(s)

RS-232 or RS-485

IO Type

Digital Input and Output

Isolation

1 kV

Mounting

DIN Rail

MPN

110-00011A

Parity

  • No Parity / 1 stop
  • No Parity / 2 stops
  • Even Parity / 1 stop
  • Odd Parity / 1 stop

Power Consumption

0,5 W

Power Supply

24V DC +/- 10%

Product Weight

100 g

Protocols

Modbus: RTU, ASCII, or Transparent

Security/Protection

Polarity and short circuit protection

Serial Types

372,371

Slave Address

1 - 247

Switch Option

7 DIP switches

Temperature Range

  • Storage: -25ºC to 70ºC (-13ºF to 158ºF)
  • Operating: 0ºC to 55ºC (32ºF to 131ºF)
